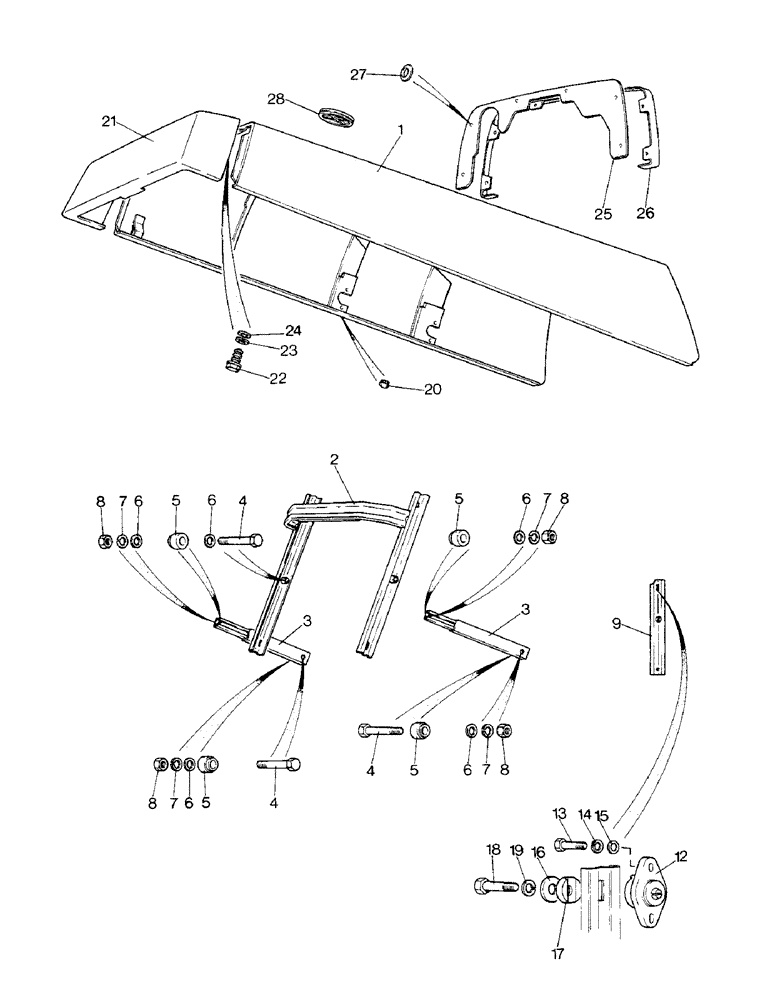

Запчасти Case IH 1290 (N-04) - ENGINE HOOD & HINGE, 1290 PRIOR TO P.I.N. 11054201, 1390 PRIOR TO P.I.N. 11127048 (08) - SHEET METAL

1

K300365

HOOD

- engine, dry air cleaner

1шт.

1

K304127

HOOD - engine, oil bath air cleaner (Not North America)

1шт.

2

K301668

LINK

- front

1шт.

3

K301000

SUPPORT

STAY - front link

2шт.

4

K650630

BOLT

- M6 x 30 MM

4шт.

5

K300922

BUSHING

SPACER - 14 MM diameter x 7 MM

4шт.

6

K651777

WASHER

- 6 MM

6шт.

7

K651847

WASHER, LOCK

WASHER - lock, 6 MM

4шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

9

K300936

LINK

- rear

2шт.

12

K304095

LINK

BRACKET - pivot

8шт.

13

K650628

BOLT

- M6 x 22 MM

16шт.

14

K651847

WASHER, LOCK

WASHER - lock, 6 MM

16шт.

15

K19470

WASHER

- 6 MM

16шт.

16

K301561

WASHER

- 8 MM, special

4шт.

16

K692199

WASHER

- 8 MM, special

2шт.

17

K300910

WASHER

- 8 MM, special

6шт.

18

K650641

SCREW

BOLT - M8 x 16 MM

4шт.

18

K602859

SCREW

BOLT - 5/16 UNC x 1 inch

4шт.

19

K651848

WASHER

- lock, 8 MM

8шт.

20

K916596

PLUG

- rubber

6шт.

21

K956250

COVER

- nose, engine hood

1шт.

22

K624533

SCREW

- self-tapping, 8 MM

5шт.

23

K651848

WASHER

- lock, 8 MM

5шт.

24

K651778

WASHER

- 8 MM

5шт.

25

K300884

BAFFLE

- radiator

1шт.

26

K301514

STRIP

- clamping

2шт.

27

K626776

WASHER

- cup, 1/8 inch

6шт.

28

K304967

INSERT

PLUG - plastic, 98 MM diameter, downswept exhaust

1шт.
