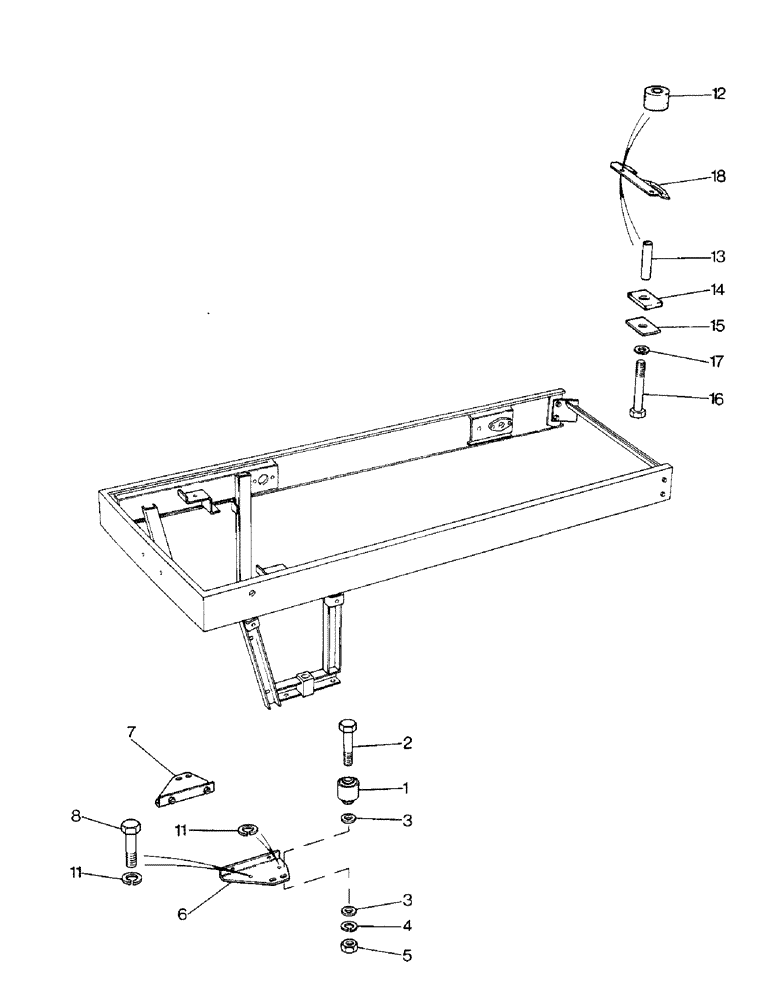

Запчасти Case IH 1290 (N-03) - ENGINE HOOD MOUNTING, 1290 PRIOR TO P.I.N. 11054201, 1390 PRIOR TO P.I.N 11127048 (08) - SHEET METAL

1

K622851

BUSHING

MOUNTING, flexible, front

2шт.

2

K650649

BOLT

- M8 x 55 MM

2шт.

3

K651778

WASHER

- 8 MM

4шт.

4

K651848

WASHER

- lock, 8 MM

2шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

6

K301211

SUPPORT

BRACKET - support, left-hand

1шт.

7

K301213

SUPPORT

BRACKET - support, right-hand

1шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

11

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

12

K626462

DAMPER

BUSHING - rubber

2шт.

13

K627007

TUBE,0.375" OD x 1.016" L

SPACER - bushing

2шт.

14

K915725

WASHER

- rubber

2шт.

15

K915726

PLATE

- clamp

2шт.

16

K650632

BOLT

- M6 x 40 MM

2шт.

17

K651847

WASHER, LOCK

WASHER - lock, 6 MM

2шт.

18

K300200

SUPPORT

BRACKET - support, rear

1шт.
