(N-02) - ENGINE HOOD SUPPORT FRAME & PANELS, 1290 PRIOR TO P.I.N. 11054201, 1390 PRIOR TO P.I.N 1127048

Запчасти Case IH 1290 (N-02) - ENGINE HOOD SUPPORT FRAME & PANELS, 1290 PRIOR TO P.I.N. 11054201, 1390 PRIOR TO P.I.N 1127048 (08) - SHEET METAL

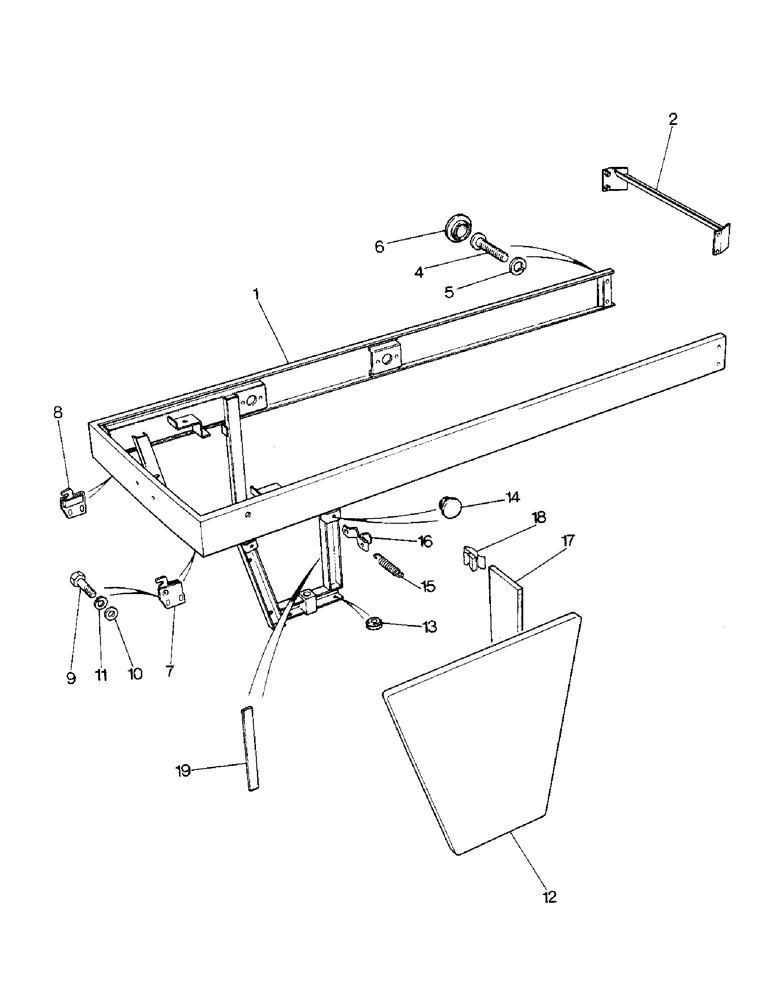

Схема запчастей Case IH 1290 - (N-02) - ENGINE HOOD SUPPORT FRAME & PANELS, 1290 PRIOR TO P.I.N. 11054201, 1390 PRIOR TO P.I.N 1127048 (08) - SHEET METAL
16
7
8
18
2
11
10
4
9
13
1
6
17
5
12
19
15
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K300236

SUPPORT

FRAME - support, hood

1шт.

2

K302428

SUPPORT

STRUT - cross

1шт.

4

K654070

SCREW

BOLT - M8 x 20 MM

4шт.

5

K651874

SPRING

WASHER - lock, 8 MM

4шт.

6

K627992

PLUG

- plastic

4шт.

7

K300500

LOCK

- left-hand

1шт.

8

K300499

LOCK

- right-hand

1шт.

9

K650628

BOLT

- M6 x 20 MM

4шт.

10

K651777

WASHER

- 6 MM

4шт.

11

K651847

WASHER, LOCK

WASHER - lock, 6 MM

4шт.

12

K300225

PANEL

- side

2шт.

13

K627754

GROMMET

- 14 MM

4шт.

14

K627771

BUTTON

PLUG - 3/8 inch, rubber

4шт.

15

K624940

SPRING

- tension

2шт.

16

K915791

GRIP

- finger

2шт.

17

300888

SEAL - side panel

2шт.

18

K621744

CLIP

- retaining, seal

8шт.

19

K300811

RADIATOR

STRIP - sealing, radiator side

2шт.
