(N-01) - LOWER GRILLE, 1290, PRIOR TO P.I.N. 11054201, 1390, PRIOR TO P.I.N. 11127048

Запчасти Case IH 1290 (N-01) - LOWER GRILLE, 1290, PRIOR TO P.I.N. 11054201, 1390, PRIOR TO P.I.N. 11127048 (08) - SHEET METAL

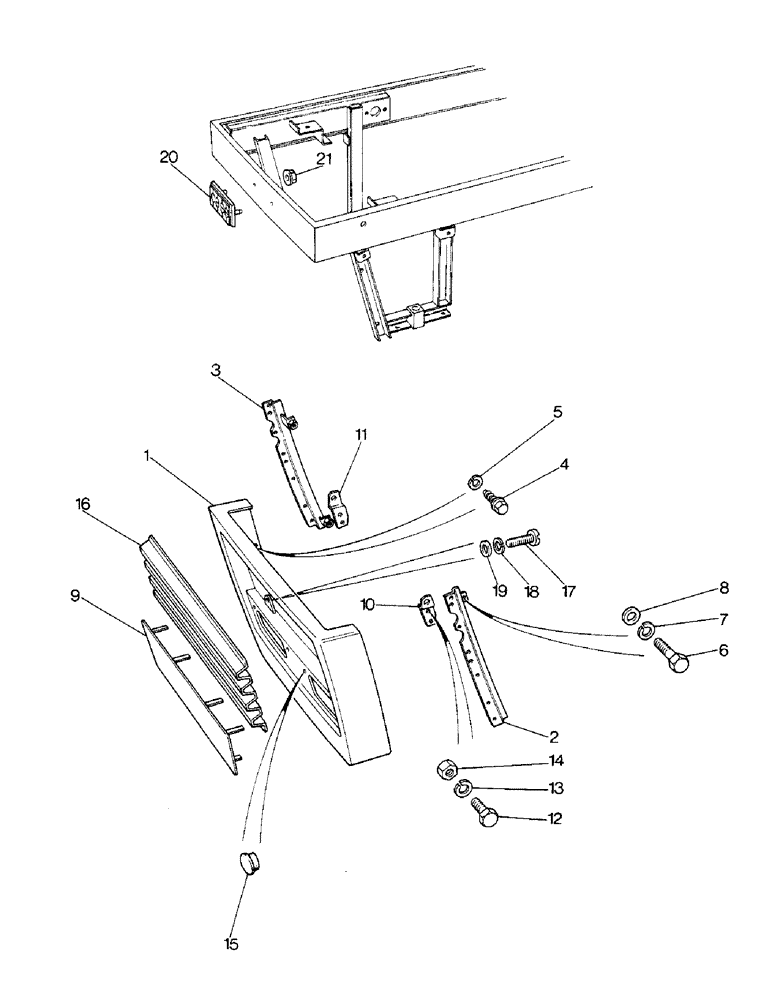

Схема запчастей Case IH 1290 - (N-01) - LOWER GRILLE, 1290, PRIOR TO P.I.N. 11054201, 1390, PRIOR TO P.I.N. 11127048 (08) - SHEET METAL
4
12
8
3
11
7
19
10
17
18
16
14
1
15
5
13
9
20
6
21
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K301692

HOOD

FRAME - grille

1шт.

2

K302716

BRACKET

SUPPORT - left-hand

1шт.

3

K302717

SUPPORT

- right-hand

1шт.

4

K624533

SCREW

- self-tapping hex

6шт.

5

K626552

WASHER

- lock, 8 MM

6шт.

6

K650643

BOLT

- M8 x 22 MM

4шт.

7

K651848

WASHER

- lock, 8 MM

4шт.

8

K651778

WASHER

- 8 MM

4шт.

9

K302152

PLATE

- grille (With outboard head lamps) (Not North America)

1шт.

10

K302149

BRACKET

- left-hand head lamp (With outboard head lamps) (Not North America)

1шт.

11

K302150

BRACKET

- right-hand head lamp (With outboard head lamps) (Not North America)

1шт.

12

K650341

SCREW

BOLT - M8 x 16 MM (With outboard head lamps) (Not North America)

4шт.

13

K651848

WASHER

- lock, 8 MM (With outboard head lamps) (Not North America)

4шт.

14

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10 (With outboard head lamps) (Not North America)

4шт.

15

K627874

PLUG

- head lamp adjuster

4шт.

16

K300093

GUARD

GRILLE - lower

1шт.

17

K652464

SCREW

- M5 x 16 MM slotted

4шт.

18

K651846

WASHER, LOCK

WASHER - lock, 5 MM

4шт.

19

K626946

WASHER

- 5 MM, special

4шт.

20

K300238

EMBLEM CASE/IH

MEDALLION - Case logo

1шт.

21

K623280

NUT

- 1/4 inch, special

2шт.
