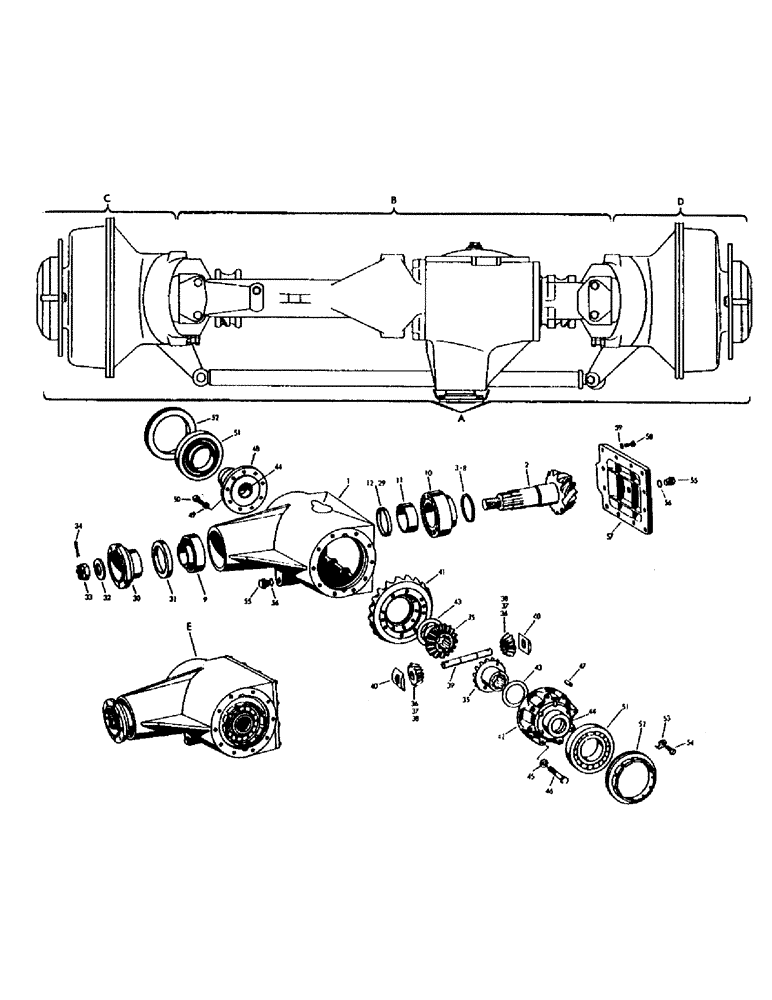

Запчасти Case IH 1210 (06) - FRONT AXLE AND DIFFERENTIAL (06) - POWER TRAIN

a

1022601101

axle, differential and final drive assembly complete

1шт.

b

1022600202

axle and differential assembly

1шт.

c

1022601016

final drive assembly, left-hand (series 1)

1шт.

1022600816

final drive assembly, right-hand (series 2)

1шт.

d

1022601116

final drive assembly, right hand (series 1)

1шт.

1022600916

final drive assembly, right-hand (series 2)

1шт.

e

1022600209

differential assembly

1шт.

1

1552310310

differential casing

1шт.

2

1402330021

pinion shaft, 12 teeth

1шт.

3

1009339433

shim, 1.2 mm

1шт.

4

1009939533

shim, 1.1 mm

1шт.

5

1009339633

shim, 1.0 mm

1шт.

6

1009939733

shim, 0.9 mm

1шт.

7

1009939833

shim, 0.8 mm

1шт.

8

1009939933

shim, 0.7 mm

1шт.

9

7618313008

BEARING ASSY

taper roller bearing

1шт.

10

7618323009

taper roller bearing

1шт.

11

1009938972

sleeve

1шт.

12

1009930034

distance piece, 3.8 mm

1шт.

13

1009930134

distance piece, 3.9 mm

1шт.

14

1009930234

distance piece, 4.0 mm

1шт.

15

1009930334

distance piece, 4.1 mm

1шт.

16

1009930434

distance piece, 4.2 mm

1шт.

17

1009930534

distance piece, 4.3 mm

1шт.

18

1009930634

distance piece, 4.4 mm

1шт.

19

1009930734

distance piece, 4.5 mm

1шт.

20

1009930834

distance piece, 4.6 mm

1шт.

21

1009930934

distance piece, 4.7 mm

1шт.

22

1009931034

distance piece, 4.8 mm

1шт.

23

1009931134

distance piece, 4.9 mm

1шт.

24

1009931234

distance piece, 5.0 mm

1шт.

25

1009931334

distance piece, 5.1 mm

1шт.

26

1009931435

distance piece, 5.2 mm

1шт.

27

1009931534

distance piece, 5.3 mm

1шт.

28

1009931634

distance piece, 5.4 mm

1шт.

29

1009931734

distance piece, 5.5 mm

1шт.

30

1002292295

drive flange

1шт.

31

0009963321

oil seal

1шт.

32

1009938670

washer

1шт.

33

7413673028

castelated nut

1шт.

34

7530680067

split pin

1шт.

35

1402320010

bevel wheel

2шт.

36

1802300308

planet pinion assembly

2шт.

37

1802320411

planet pinion

2шт.

38

0009946850

bush

2шт.

39

1802320115

differentail pin

1шт.

40

0502320028

thrust plate

2шт.

41

1802330311

crown wheel, 26 teeth

1шт.

42

1612330015

differential cage

1шт.

43

0009932069

thrust washer

2шт.

44

0009944250

bush

2шт.

45

7482682112

spring washer

8шт.

46

7239678551

setscrew

8шт.

47

7512221151

dowel

2шт.

48

1802330013

housing

1шт.

49

7482682110

spring washer

12шт.

50

0009950465

socket screw

12шт.

51

7618302015

taper roller bearing

2шт.

52

1402320089

adjusting nut

2шт.

53

1009923830

lock plate

2шт.

54

7255677029

setscrew

2шт.

55

0009900210

plug

2шт.

56

7593655368

sealing washer

2шт.

57

1022670008

setscrew

1шт.

58

7236677157

SCREW

setscrew

12шт.

59

7482682010

spring washer

12шт.
