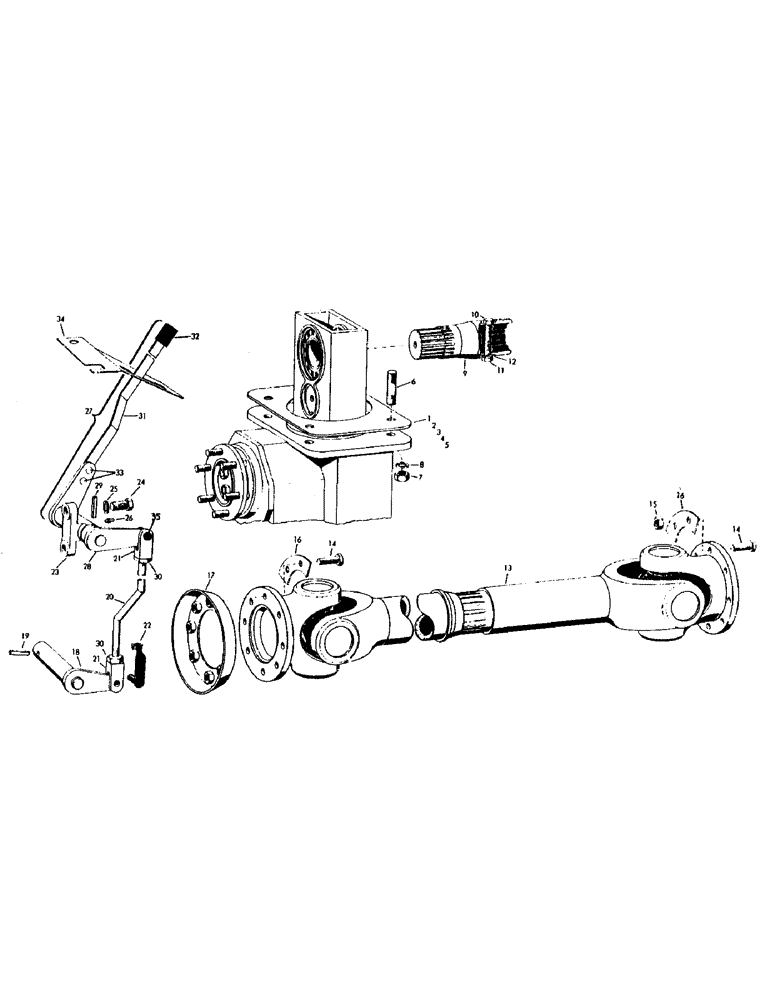

Запчасти Case IH 1210 (04[1]) - TRACTOR MODIFICATIONS (06) - POWER TRAIN

1

1024150012

packing shim, 0.3 mm thick (Alternatives)

1шт.

2

1024150112

packing shim, 3.2 mm thick (Alternatives)

1шт.

3

1024150212

packing shim, 3.4 mm thick (Alternatives)

1шт.

4

1024150312

packing shim, 3.6 mm thick (Alternatives)

1шт.

5

1024150412

packing shim, 3.8 mm thick (Alternatives)

1шт.

6

7360677001

stud, 5/8 UNC x 2-3/8 in

4шт.

7

7408677006

nut, 5/8 UNC

4шт.

8

7482682016

spring washer

4шт.

9

1024100026

drive coupling

1шт.

10

7248677502

setscrew, 5/16 UNC x 2-1/4 in

1шт.

11

7408677002

nut, 5/16 UNC

1шт.

12

7482682008

spring washer

1шт.

13

0002298220

carden shaft

1шт.

REF 13. SEE HARD COPY OF PARTS BOOK FOR A LIST OF K NUMBERS AS WELL AS A PART NUMBER FOR THE UJOINT. CNS

1шт.

REF.13 U-JOINT KIT IS K954334

1шт.

14

7236078159

setscrew

16шт.

15

7403673007

nut

8шт.

16

0009921630

locking plate

8шт.

17

1022600052

deflector

1шт.

18

1024100015

operating lever

1шт.

19

7514682186

spring pin

1шт.

20

1024150045

operating rod

1шт.

21

7821104009

fork end

2шт.

22

0009903012

bolt and clip

2шт.

23

1024150101

bracket

1шт.

24

7248677501

setscrew

2шт.

25

7482682016

spring washer

2шт.

26

7761675002

LUBE NIPPLE

greaser

2шт.

27

1024100415

hand lever assembly

1шт.

28

1024100515

bell crank lever assembly

1шт.

29

7514682186

spring pin 8 x 30 mm

1шт.

30

7403677007

NUT

locknut

2шт.

31

0009922960

hand lever

1шт.

32

0009961830

hand grip

1шт.

33

7544161101

rivet

1шт.

34

1024150164

gate

1шт.

35

1009906012

bolt

1шт.

926097

FORK

main frame, rear

1шт.

962625

bevel pinion and spiral bevel gear

1шт.

928978

anchor bracket, steering ram

1шт.

942352

pipe and bleed valve assembly

1шт.

919415

TERMINAL CONNECTOR,4 - 6 mm2

gasket - valve flange

1шт.

600412

bolt, 3/8 UNC x 2-1/4 in

2шт.

19482

spring washer, 3/8 in

2шт.

14509

'O' ring, 13/16 in int. dia.

1шт.

921947

SHAFT SEAL

return pipe assembly

1шт.

600610

SHIELD

bolt, 7/16 UNC x 2-1/2 in (relief valve)

2шт.

19483

spring washer, 7/16 in (relief valve)

2шт.
