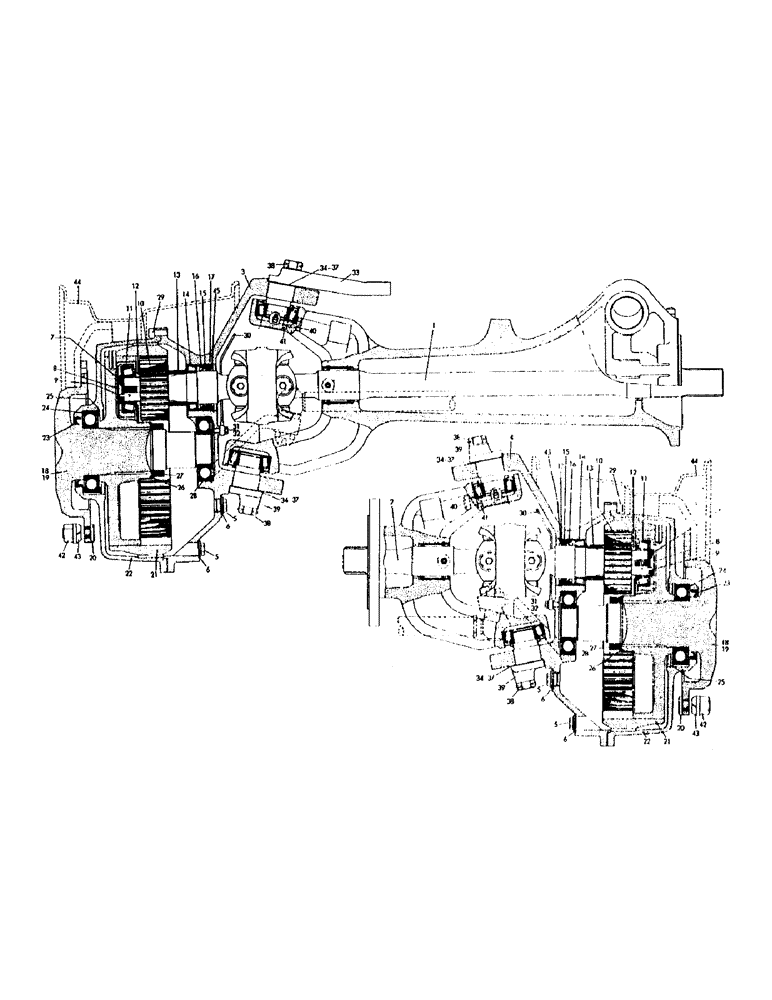

Запчасти Case IH 1210 (10) - FINAL DRIVE AND REDUCTIONS, SERIES TWO (06) - POWER TRAIN

1

0022610520

half-shaft assembly, left-hand

1шт.

2

0022610620

half-shaft assembly, right-hand

1шт.

3

14526660403

carrier bracket, left-hand

1шт.

4

1452660503

carrier bracket, right-hand

1шт.

5

000990210

plug

4шт.

6

7593641035

RING

sealing washer

4шт.

7

1802360088

thrust washers

2шт.

8

1009952670

countersunk screw

2шт.

9

7514682092

spring dowel

2шт.

10

1402360010

pinion

2шт.

11

7618322003

taper roller bearing

2шт.

12

1009938371

distance piece, 6 mm

2шт.

13

1009938471

distance piece 30 mm

2шт.

14

7618320108

BEARING

taper roller bearing

2шт.

15

1452360028

spacer

2шт.

16

7592680163

oil seal

2шт.

17

0009935840

shim (as required)

1-4шт.

18

1402300119

final drive shaft and studs

2шт.

19

1402360020

final drive

1шт.

20

K963953

wheel studs (replaces 0009900308)

16шт.

21

1402300024

reduction gear

2шт.

22

1802360005

housing

2шт.

23

0009960721

oil seal

2шт.

24

7611062017

ball bearing

2шт.

25

7491682140

circlip

2шт.

26

0009922330

tab washer

2шт.

27

0009900620

locknut

2шт.

28

7611063011

ball bearing

2шт.

29

0009952370

bolt

32шт.

30

1802300065

breather pipe

2шт.

31

7803675002

banjo bolt

2шт.

32

7593641011

sealing washer

4шт.

33

1022740132

steering lever

1шт.

34

1009936040

shim, 0.1 mm thick

2-8шт.

35

1009936240

shim, 0.2 mm thick

2-8шт.

36

1009936340

shim, 0.5 mm thick

2-8шт.

37

1009936440

shim, 1.0 mm thick

2-8шт.

38

7239678616

bolt

8шт.

39

1802610093

SUPPORT ASSY.

pivot bracket

3шт.

40

0009956270

stop screw

2шт.

41

7403673014

nut

2шт.

42

7686677103

NUT

wheel nut

16шт.

43

7686682004

WASHER

spring washer

16шт.

44

0003120106

wheel rim and centre

2шт.

45

7491682376

circlip

2шт.
