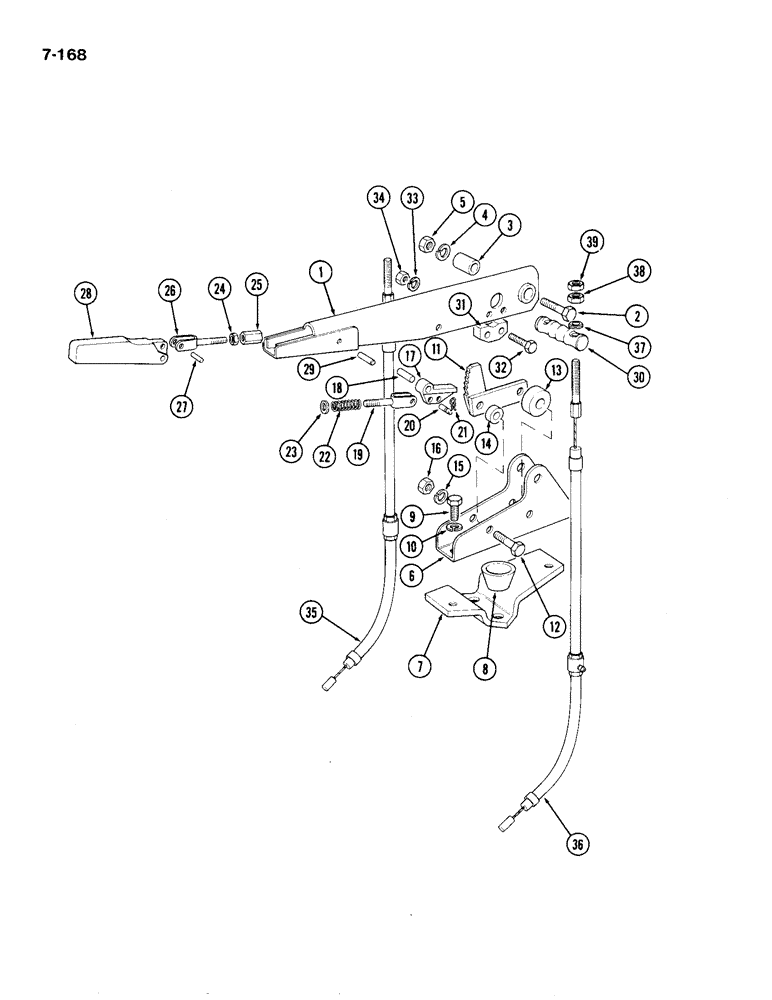

Запчасти Case IH 1194 (7-168) - HAND BRAKE LEVER, TRACTORS WITH CAB (07) - BRAKES

1

K955643

LEVER

- hand

1шт.

2

K600526

BOLT

- 3/8 UNC x 1-7/8 inch

1шт.

3

K627052

BUSHING

SPACER

1шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

1шт.

5

280136

NUT,3/8"-16, G8

1шт.

6

K955244

BRACKET

- hand lever support

1шт.

7

K949506

SHIM

PLATE - retaining

1шт.

8

K949507

SEAL

- rubber

2шт.

9

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 UNC x 3/4 inch

2шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

11

K307481

RATCHET

2шт.

12

K600369

BOLT

- 5/16 UNC x 1-3/4 inch, special

2шт.

13

K627109

BUSHING

SPACER - 1-3/8 inch (35 mm)

1шт.

14

K627110

BUSHING

SPACER - 3/4 inch (19 mm)

1шт.

15

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

17

K307484

PAWL

1шт.

18

K623924

SPRING

PIN - spring, 1/4 x 7/8 inch

1шт.

19

K950033

ROD

- pull

1шт.

20

K949499

PIN

- grovved 3/16 x 1/2 inch

1шт.

21

K621572

RING, SNAP

CLIP - spring

1шт.

22

K625099

SPRING

1шт.

23

K626310

WASHER

- 3/16 inch (5 mm)

1шт.

24

K617080

NUT

- No. 10 UNF

2шт.

25

K617297

NUT

SLEEVE - adjusting, No. 10 UNF

1шт.

26

K950033

ROD

- pull

1шт.

27

K949498

PIN

- 3/16 x 1/2 inch

1шт.

28

K950026

LEVER

- release

1шт.

29

K623773

PIN

- 3/16 x 7/8 inch

1шт.

30

K949501

BAR

- balance

1шт.

31

K949502

SUPPORT

BLOCK - support

1шт.

32

K602739

SCREW

BOLT - 1/4 UNC x 1-1/8 inch

2шт.

33

K19480

SPRING WASHER

- lock, 1/4 inch

2шт.

34

K607043

NUT

- 1/4 inch UNC

2шт.

35

REF

INSTRUCTION

CABLE - inner and outer, right-hand, See Figure 7-166

1шт.

36

REF

INSTRUCTION

CABLE - inner and outer, left-hand, See Figure 7-166

1шт.

37

K949503

WASHER

- spherical, 5/16 inch

2шт.

38

K617285

SPECIAL NUT

- 5/16 inch UNF, special

2шт.

39

K622807

NUT

- lock, 5/16 inch UNF

2шт.
