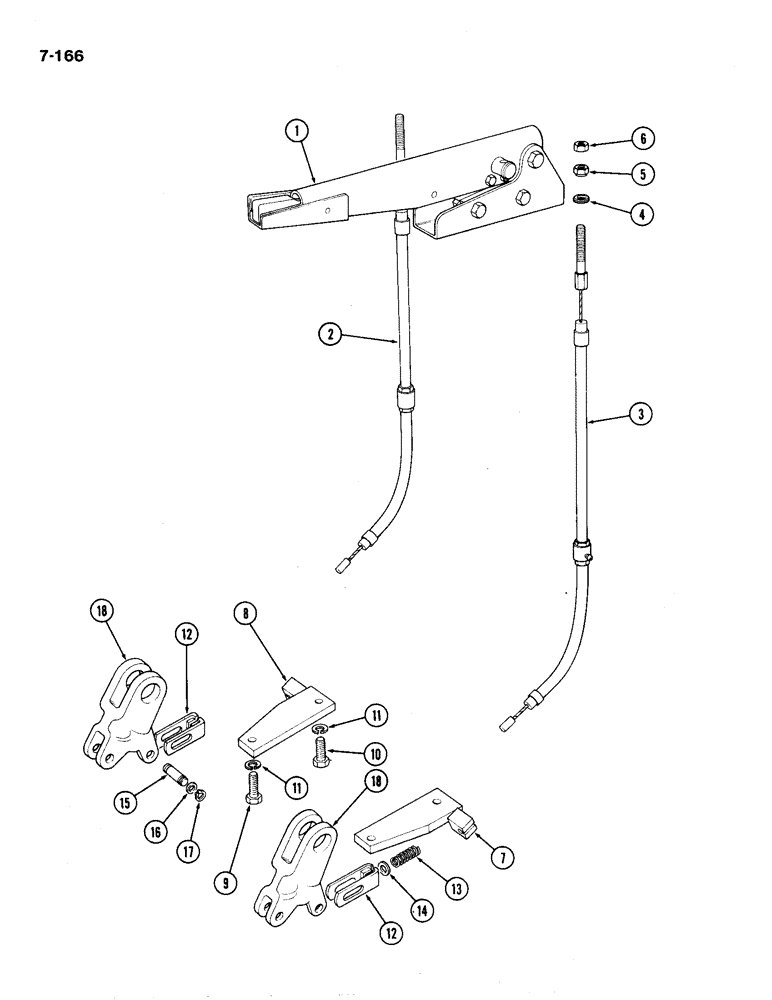

Запчасти Case IH 1194 (7-166) - HAND BRAKE LINKAGE, TRACTORS WITH CAB (07) - BRAKES

1

REF

INSTRUCTION

LEVER - hand, See Figure 7-168

1шт.

2

K311167

CABLE

- inner and outer, right-hand (Replaces K949504)

1шт.

3

K311168

CABLE

- inner and outer, left-hand (Replaces K949505)

1шт.

4

K949503

WASHER

- spherical, 5/16 inch

2шт.

5

K617285

SPECIAL NUT

- 5/16 inch UNF, special

2шт.

6

K622807

NUT

- lock, 5/16 inch UNF

2шт.

7

K300698

BRACKET

- left-hand cable anchor

1шт.

8

K300701

BRACKET

- right-hand cable anchor

1шт.

9

K602908

SCREW

BOLT - 3/8 UNC x 1-1/2 inch

2шт.

10

K602906

SCREW

BOLT - 3/8 UNC x 1-1/4 inch

2шт.

11

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

12

K949523

FORK

END - brake cable

2шт.

13

K625259

SPRING

- cable return

2шт.

14

K626911

WASHER

- 11/32 inch (9 mm)

2шт.

15

K949552

PIN

- grooved, 5/16 x 1-1/4 inch

2шт.

16

K626682

WASHER

- 5/16 inch (8 mm)

4шт.

17

K621482

RING, SNAP

RING - retaining, 5/16 inch (8 mm) external

4шт.

18

K948977

LEVER

- cam

2шт.
