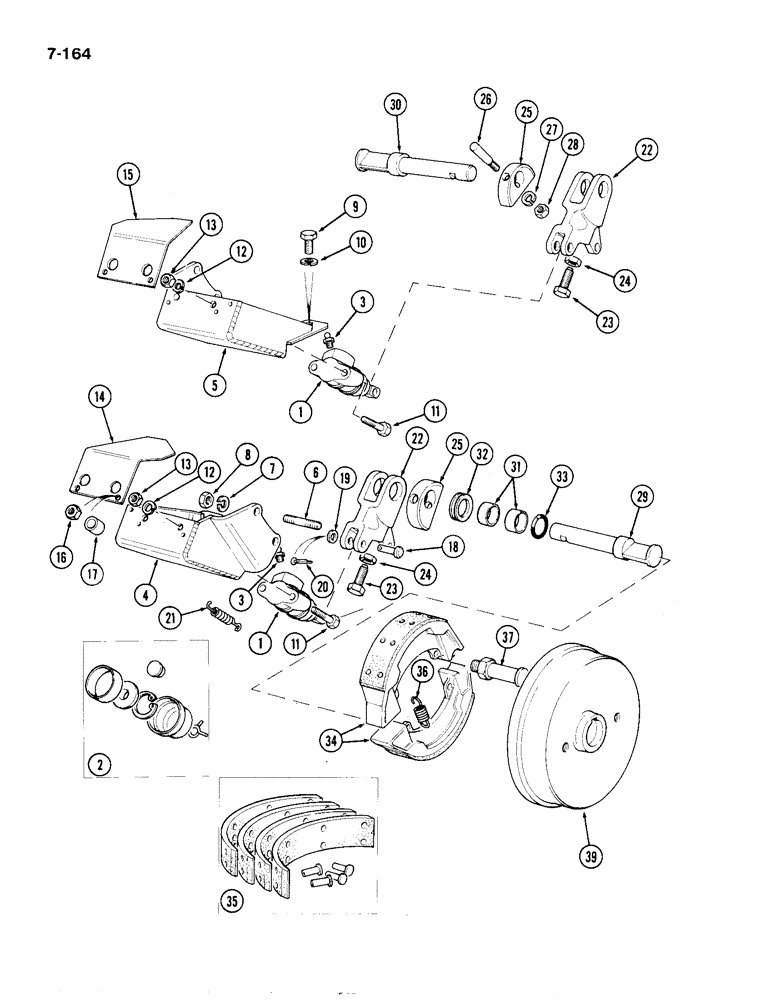

Запчасти Case IH 1194 (7-164) - SLAVE CYLINDERS AND BRAKE SHOES, TRACTORS WITH CAB (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
K203416
BRAKE
CYLINDER - slave, Includes: Ref. 2 & 3
2шт.
2
K965723
SEAL KIT
SEAL KIT - mineral oil seals
1шт.
3
K964534
SCREW,M12 x 1
- air removal
1шт.
4
K300684
MOUNTING PARTS
BRACKET - left-hand cylinder
1шт.
5
K300691
MOUNTING PARTS
BRACKET - right-hand cylinder
1шт.
6
K608426
STUD
- 1/2 UNC x 2-1/2 inch
4шт.
7
K19481
SPRING WASHER
WASHER - lock, 1/2 inch
4шт.
8
280431
NUT,1/2"-13, G5
4шт.
9
K602906
SCREW
BOLT - 3/8 UNC x 1-1/4 inch
2шт.
10
K19482
SPRING WASHER
WASHER - lock, 3/8 inch
2шт.
11
K602853
SCREW
BOLT - 5/16 UNC x 2-1/4 inch
4шт.
12
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
4шт.
13
9635082
NUT,5/16" - 18, Gr 5
- 5/16 inch UNC
4шт.
14
K308502
GUARD
SHIELD - left-hand brake cylinder
1шт.
15
K308503
GUARD
SHIELD - right-hand brake cylinder
1шт.
16
9635082
NUT,5/16" - 18, Gr 5
- 5/16 inch UNC
4шт.
17
K304489
BUSHING
SPACER - shield
4шт.
18
K625955
PIN
- clevis, 5/16 x 1-13/16 inch
2шт.
19
K626682
WASHER
- 5/16 inch (8 mm)
2шт.
20
K11934
PIN
- cotter, 1/16 x 1/2 inch
2шт.
21
K624946
SPRING
- cam lever return
2шт.
22
K948977
LEVER
- cam
2шт.
23
K951528
SCREW
BOLT - adjusting, 5/8 inch UNC
2шт.
24
280374
NUT,Hex, 5/8" - 11, Gr 5
2шт.
25
K948979
ADJUSTER
CAM - adjuster
2шт.
26
K609425
LARGE PIN
PIN - 3/8 inch UNC
2шт.
27
K19482
SPRING WASHER
WASHER - lock, 3/8 inch
2шт.
28
280136
NUT,3/8"-16, G8
2шт.
29
K201329
BRAKE
CAMSHAFT - brake, left-hand
1шт.
30
K201330
BRAKE
CAMSHAFT - brake, right-hand
1шт.
31
K30835
BUSHING
- axle housing
4шт.
32
K85417
SEAL
- dirt
2шт.
33
K654760
O-RING,22.5MM ID x 3MM Width
- 1 inch (25 mm) external diameter
2шт.
34
K921494
BRAKE SHOE
SHOE - brake (with lining)
4шт.
35
K962266
KIT
LINING KIT - brake (4) with rivets
1шт.
36
K63462
SPRING
- brake shoes
4шт.
37
K956736
PIN
2шт.
39
K917989
BRAKE
DRUM - brake
2шт.
Выбрано товаров: 38
