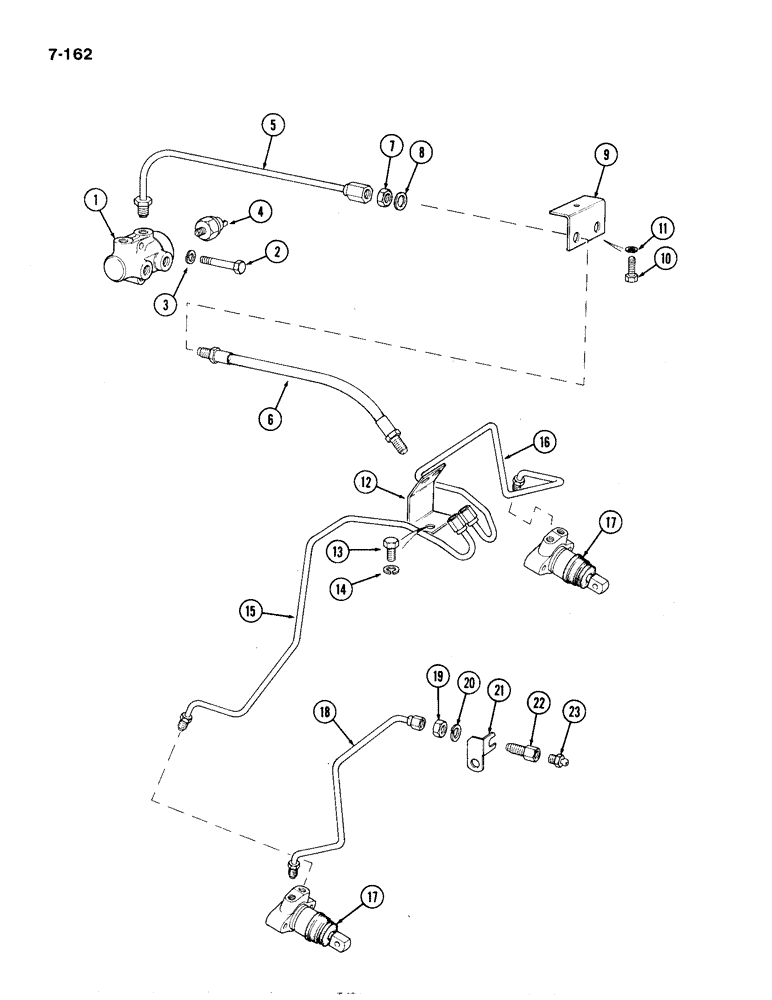

Запчасти Case IH 1194 (7-162) - BRAKE TUBES AND SLAVE CYLINDERS, TRACTORS WITH CAB (07) - BRAKES

1

K957107

VALVE

- brake balance

1шт.

2

K650635

BOLT

- M6 x 55 mm

2шт.

3

K651847

WASHER, LOCK

WASHER - lock, 6 mm

2шт.

4

K951976

LIGHT SWITCH

SWITCH - stop lamps

1шт.

5

K305952

BRAKE

TUBE - balance, Serial Range: valve-flexible

2шт.

6

K957164

HOSE,11.023" L

TUBE - flexible

2шт.

7

K652100

LOCK NUT

- lock, M12

4шт.

8

K626866

WASHER

- 12 mm

4шт.

9

K303593

BRACKET

- flexible tube

1шт.

10

K650628

BOLT

- M6 x 20 mm

1шт.

11

K651847

WASHER, LOCK

WASHER - lock, 6 mm

1шт.

12

K951919

BRACKET

- tube

1шт.

13

K602903

SCREW

- 3/8 UNC x 7/8 inch

1шт.

14

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

1шт.

15

K203296

BRAKE LINE

TUBE - slave cylinder, left-hand

1шт.

16

K203295

BRAKE LINE

TUBE - slave cylinder, right-hand

1шт.

17

K203416

BRAKE

CYLINDER - slave

2шт.

18

K302469

PIPE

TUBE - air removal, left-hand

1шт.

18

K302470

PIPE

TUBE - air removal, right-hand

1шт.

19

K652100

LOCK NUT

- lock, M12

2шт.

20

K626686

WASHER

- 12 mm

2шт.

21

K204331

BRACKET

- left-hand tube

1шт.

21

K204332

BRACKET

- right-hand tube

1шт.

22

K302501

ADAPTER

ADAPTOR - M12

2шт.

23

K964534

SCREW,M12 x 1

- air removal, M12

2шт.
