Запчасти Case IH 1194 (7-160) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITH CAB (07) - BRAKES

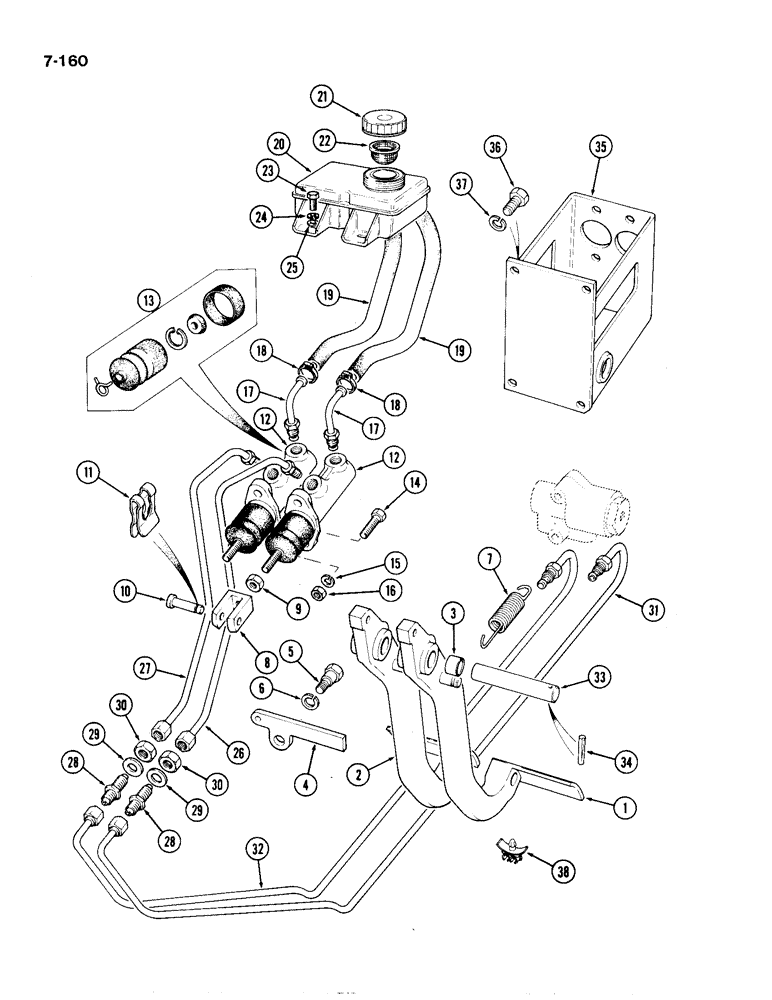

Схема запчастей Case IH 1194 - (7-160) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITH CAB (07) - BRAKES
23
15
6
26
9
21
30
22
14
11
32
7
1
19
24
33
37
36
20
31
13
12
38
3
27
29
18
17
35
2
28
18
19
5
4
16
34
30
29
28
17
8
10
12
25

Артикул

Название

Примечание

Количество

1

K307854

PEDAL

- brake, left-hand

1шт.

2

K307855

PEDAL

- brake, right-hand

1шт.

3

K655525

BUSHING

- pedal

2шт.

4

K948974

LATCH

LOCK - pedal, Includes: Ref. 5 and 6

1шт.

5

K600500

SCREW

BOLT - pedal, special, 3/8 inch UNC

1шт.

6

K626700

WASHER

- lock, 3/8 inch

1шт.

7

K303540

SPRING

- return

2шт.

8

K622212

FORK

END - 5/16 inch UNF

2шт.

9

425-115

NUT,5/16"-24, G5

- lock, 5/16 inch UNF

2шт.

10

K625930

PIN

- clevis, 5/16 x 1-5/32 inch

2шт.

11

K625040

CLIP

- spring

2шт.

12

K950544

CYLINDER,36.32mm Stroke

- master, Includes: Ref. 13

2шт.

Ref #12 - (Girling # 73067017) 01/09/96

1шт.

13

K964572

SEAL KIT

SEAL KIT - master cylinder

2шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- 5/16 UNC x 1-1/8 inch

4шт.

15

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

4шт.

17

K302099

PIPE

TUBE

2шт.

18

K656903

CLIP

- hose

2шт.

19

K203032

HOSE

- 6 x 215 mm

2шт.

20

K301441

RESERVOIR

Includes: Ref. 21 & 22

1шт.

21

K301443

CAP

- fill

1шт.

22

K261058

SIEVE

SCREEN - filter

1шт.

23

K652474

BOLT

- M6 x 12 mm

2шт.

24

K651847

WASHER, LOCK

WASHER - lock, 6 mm

2шт.

25

K651777

WASHER

- 6 mm

2шт.

26

K301270

PIPE

TUBE - left-hand, Serial Range: cylinder-union

1шт.

27

K301269

PIPE

TUBE - right-hand, Serial Range: cylinder-union

1шт.

28

K301280

FITTING

UNION - M12

2шт.

29

K626686

WASHER

- 12 mm

2шт.

30

K652100

LOCK NUT

- lock, M12

2шт.

31

K308225

PIPE,6 mm DIA.

TUBE - left-hand union to balance valve

1шт.

32

K308226

PIPE,6 mm DIA.

TUBE - right-hand union to balance valve

1шт.

33

K303546

SHAFT

PIN - pivot (Sekura 23113)

1шт.

34

K690706

PIN

- spring, 6 x 30 mm (Sekura 917327)

1шт.

35

K303164

MOUNTING PARTS

BRACKET - pedal support (Sekura 43005)

1шт.

36

K650641

SCREW

BOLT - M8 x 16 mm

4шт.

37

K651848

WASHER

- lock, 8 mm

4шт.

38

K625015

CLIP

- tubes

2шт.

Выбрано товаров: 39
