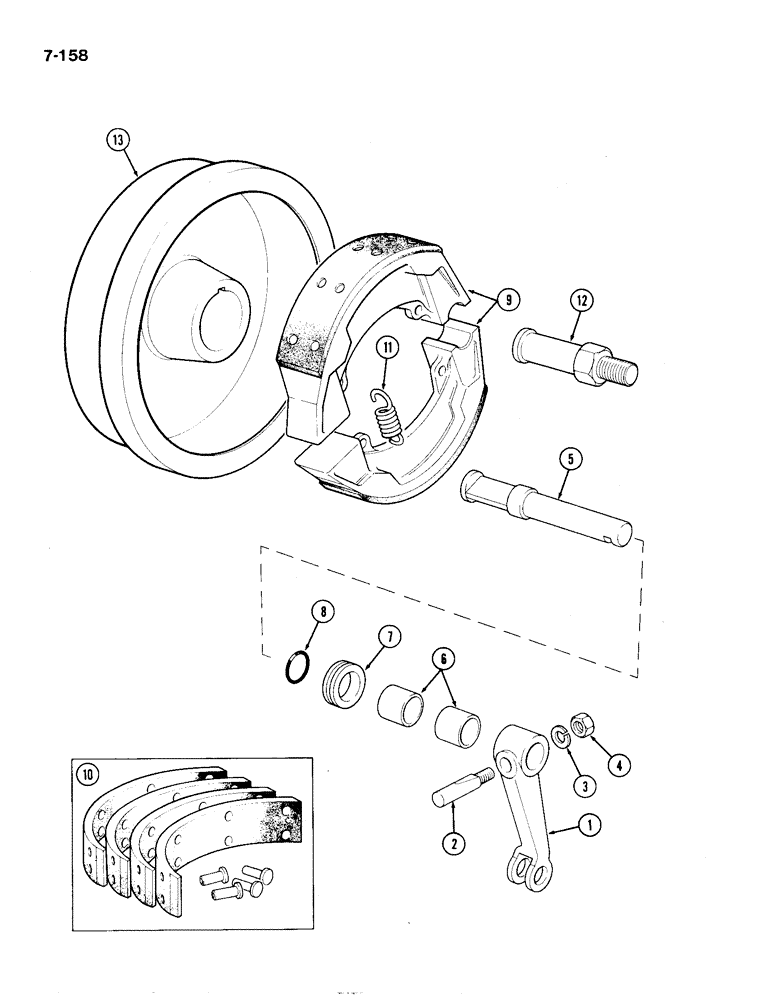

Запчасти Case IH 1194 (7-158) - BRAKE SHOES AND DRUMS, TRACTORS WITHOUT CAB (07) - BRAKES

1

K928589

LEVER

- cam

2шт.

2

K609425

LARGE PIN

PIN - 3/8 inch UNC

2шт.

3

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

4

280136

NUT,3/8"-16, G8

2шт.

5

K956734

BRAKE

CAMSHAFT - brake, left-hand

1шт.

5

K956735

BRAKE

CAMSHAFT - brake, right-hand

1шт.

6

K30835

BUSHING

- axle housing

4шт.

7

K85417

SEAL

EXCLUDER - dirt

2шт.

8

K654760

O-RING,22.5MM ID x 3MM Width

- 1 inch (25 mm) internal diameter

2шт.

9

K921494

BRAKE SHOE

SHOE - brake, Includes: Ref. 10

4шт.

10

K962266

KIT

LINING - brake (4) and rivets

1шт.

11

K63462

SPRING

- brake shoes

4шт.

12

K956736

PIN

- fulcrum

2шт.

13

K917989

BRAKE

DRUM - brake

2шт.

K921495

BRAKE

LINING

4шт.

K624029

RIVET

18шт.

K624028

RIVET

34шт.
