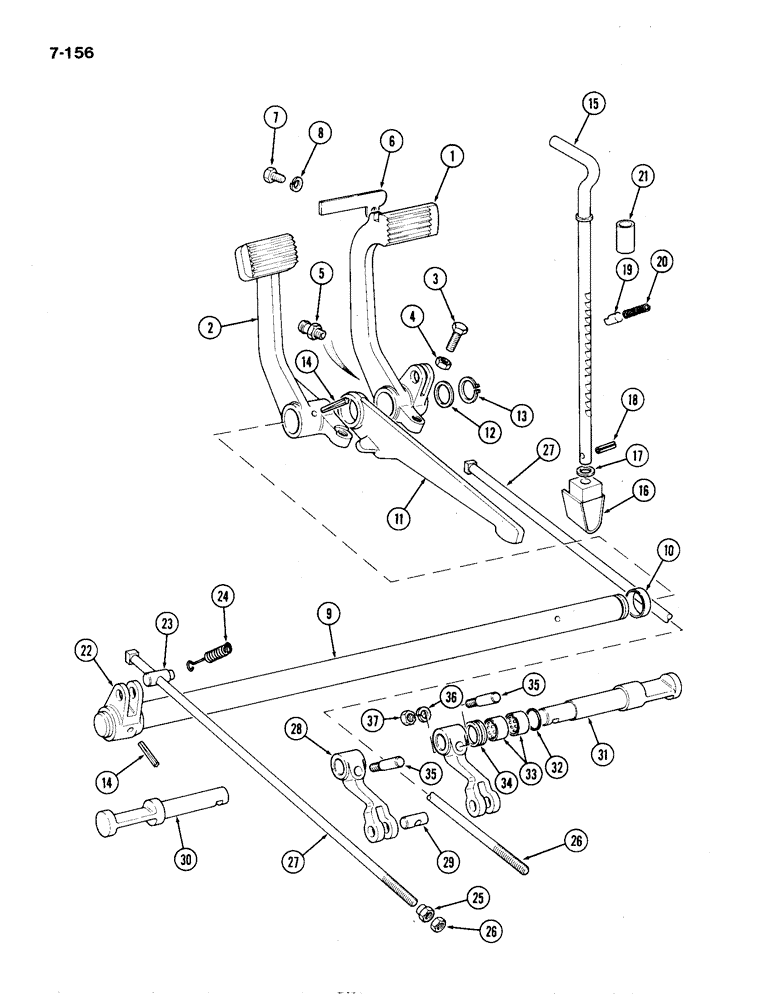

Запчасти Case IH 1194 (7-156) - BRAKE PEDALS AND LINKAGE, TRACTORS WITHOUT CAB (07) - BRAKES

1

K201223

BRAKE

PEDAL - brake, right-hand

1шт.

2

K201222

BRAKE

PEDAL - brake, left-hand

1шт.

3

K603011

BOLT

- 7/16 UNC x 2 inch, right-hand pedal

1шт.

4

425-147

JAM NUT,Jam, 7/16"-14, G5

- lock, 7/16 inch UNC

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

6

K948974

LATCH

PLATE - locking, pedals

1шт.

7

K600500

SCREW

BOLT - 3/8 inch UNC, special

1шт.

8

K626700

WASHER

- lock, 3/8 inch double coil

1шт.

9

K201221

BRAKE

SHAFT - cross

1шт.

10

K621309

BUSHING

1шт.

11

K201669

LEVER

- hand brake operating

1шт.

12

K627467

WASHER

- 1-1/4 inch (31 mm)

1шт.

13

K11129

RING, SNAP

RING - retaining, 1-1/4 inch (31 mm) external

1шт.

14

K11737

PIN

- 3/8 x 2-1/4 inch

2шт.

15

K206459

LEVER

- hand

1шт.

16

K949260

FORK

STIRRUP

1шт.

17

K626736

WASHER

- 5/8 inch (16 mm) special

1шт.

18

K623892

PIN

- spring, 5/16 x 1-1/2 inch

1шт.

19

K909588

PAWL

- hand lever

1шт.

20

K14651

SPRING

1шт.

21

K627335

BUSHING

SPACER - hand lever

1шт.

22

K201220

LEVER

- cross shaft

1шт.

23

K919706

PIN

- brake rods

2шт.

24

K624967

SPRING

- return

2шт.

25

K607525

NUT

- adjusting, 3/8 inch UNC

2шт.

26

280136

NUT,3/8"-16, G8

2шт.

27

K201236

BRAKE

ROD - brake

2шт.

28

K928589

LEVER

- cam

2шт.

29

K14744

PIN

- cam lever

2шт.

30

K956734

BRAKE

CAMSHAFT - brake, left-hand

1шт.

31

K956735

BRAKE

CAMSHAFT - brake, right-hand

1шт.

32

K654760

O-RING,22.5MM ID x 3MM Width

- 1 inch (25 mm) internal diameter

2шт.

33

K30835

BUSHING

- axle housing

4шт.

34

K85417

SEAL

EXCLUDER - dirt

2шт.

35

K609425

LARGE PIN

PIN - 3/8 inch UNC

2шт.

36

K19472

WASHER

- 3/8 inch (10 mm)

2шт.

37

280136

NUT,3/8"-16, G8

2шт.
