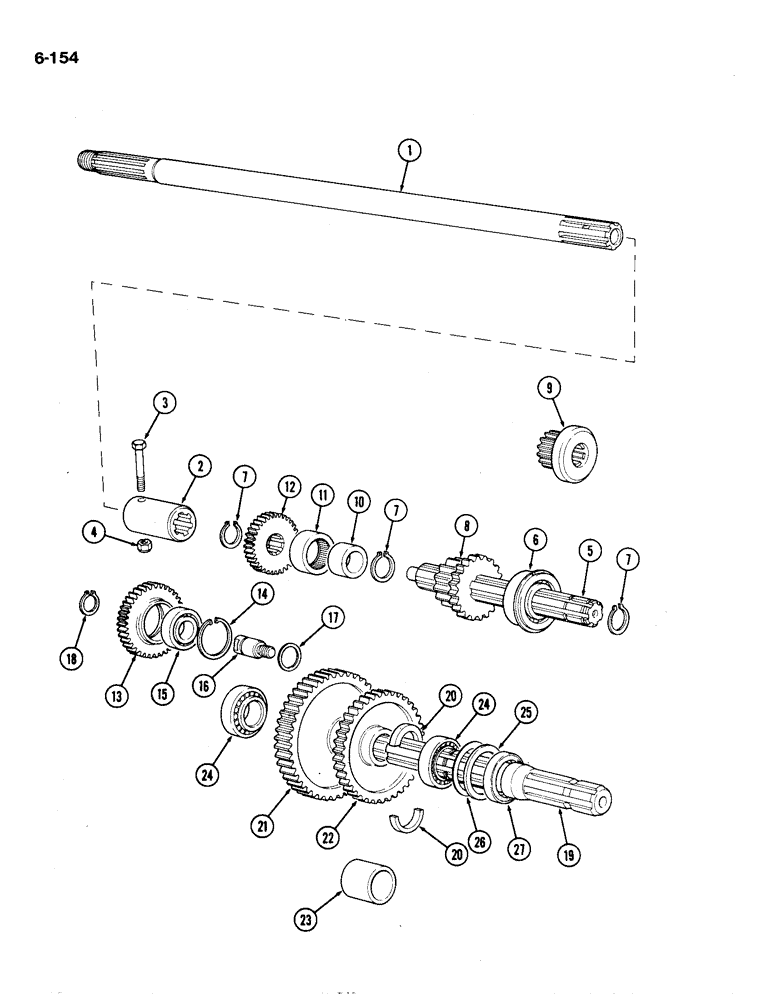

Запчасти Case IH 1194 (6-154) - POWER TAKE-OFF GEARS AND SHAFTS (06) - POWER TRAIN

1

K200749

SHAFT

- cardan

1шт.

2

K89181

COUPLING, BREAK AWAY

COUPLING - shaft

1шт.

3

K600009

BOLT

- 1/4 UNC x 1-7/8 inch

1шт.

4

K607440

NUT

- self-locking, 1/4 inch UNC

1шт.

5

K906735

DRIVE SHAFT

SHAFT - PTO drive

1шт.

6

K15172

BALL BEARING,28.57mm ID x 77.79mm OD x 20.64mm W

BEARING - ball (with snap ring)

1шт.

7

K621535

RING, SNAP

RING - snap, 1-3/64 inch (26 mm) external

4шт.

8

K906688

GEAR

PINION - speed change, 13:19 teeth (multi-speed)

1шт.

9

K921600

GEAR

PINION - speed change, (single speed)

1шт.

10

K906693

RING RACE

RACE - roller bearing inner

1шт.

11

K620266

NEEDLE BEARING

BEARING - roller, needle

1шт.

12

K908094

GEAR

- drive, hydraulic pump, 29 teeth

1шт.

13

K923442

GEAR

- idler, hydraulic pump

1шт.

14

K621436

RING, SNAP

RING - snap, 62 mm, internal

2шт.

15

K620102

BEARING, BALL

BEARING - ball

1шт.

16

K923441

PIN

SHAFT - idler gear

1шт.

17

K626200

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

17

K626201

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

17

K626202

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

17

K626203

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

18

K11128

CIRCLIP

RING - snap, 1 inch (25 mm) external

1шт.

19

K962826

SHAFT

ASSEMBLY - driven, Includes: Ref. 20

1шт.

20

K923433

RING

HALVES - split

2шт.

21

K923434

GEAR

- low speed, 44 teeth

1шт.

22

K906689

GEAR

- high speed, 38 teeth (multi-speed)

1шт.

23

K952132

BUSHING

SPACER - gear (single-speed)

1шт.

24

K620046

BEARING

- roller, tapered

2шт.

25

K923435

WASHER

RING - thrust

1шт.

26

K923436

SHIM

- 0.002 inch (0.05 mm)

1шт.

26

K923437

SHIM

- 0.003 inch (0.08 mm)

1шт.

26

K923438

SHIM

- 0.005 inch (0.13 mm)

1шт.

26

K923439

SHIM

- 0.010 inch (0.25 mm)

1шт.

26

K923440

SHIM

- 0.020 inch (0.51 mm)

1шт.

27

K11119

OIL SEAL

- oil, 1-5/8 x 2-1/2 x 5/8 inch (41 x 63 x 16 mm)

1шт.
