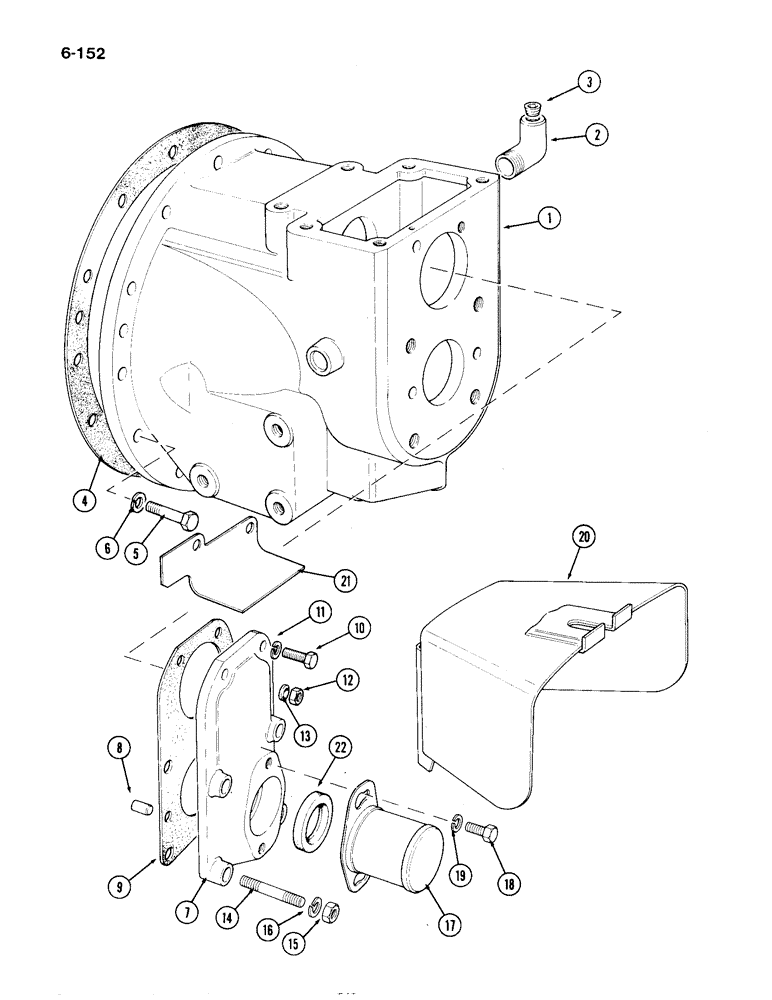

Запчасти Case IH 1194 (6-152) - POWER TAKE-OFF, HOUSING AND COVERS (06) - POWER TRAIN

1

K957399

CASE

HOUSING

1шт.

2

K622127

FITTING

ELBOW - 1 inch BSP

1шт.

3

K12362

PLUG

- 1 inch BSP

1шт.

4

K205398

GASKET

- housing to rear axle

1шт.

5

K600605

BOLT

- 7/16 UNC x 1-7/8 inch

11шт.

6

K19483

SPRING WASHER

- lock, 7.16 inch

11шт.

7

K906686

COVER

- end

1шт.

8

K14577

DOWEL

- 1/4 x 9/16 inch

2шт.

9

K924217

GASKET

1шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

11

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

12

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

1шт.

13

K15498

SEALING WASHER

WASHER - sealing, 5/16 inch (8 mm)

1шт.

14

K608311

STUD

- 7/16 UNC x 2-5/16 inch (Multi-speed PTO)

4шт.

14

K600604

SCREW

BOLT - 7/16 UNC x 1-3/4 inch (Single-speed PTO)

4шт.

15

280717

NUT,7/16"-14, G5

4шт.

16

K19483

SPRING WASHER

- lock, 7/16 inch

4шт.

17

K909111

COVER

- PTO shaft

1шт.

18

K602840

SCREW

BOLT - 5/16 UNC x 1/2 inch

2шт.

19

K626682

WASHER

- 5/16 inch (8 mm)

2шт.

20

K906893

GUARD

- PTO shaft

1шт.

21

K928304

SHIM

GUARD - hydraulic filter switch

1шт.

22

K11119

OIL SEAL

- oil, 5/8 x 2-1/2 x 5/8 inch (16 x 64 x 16 mm)

1шт.
