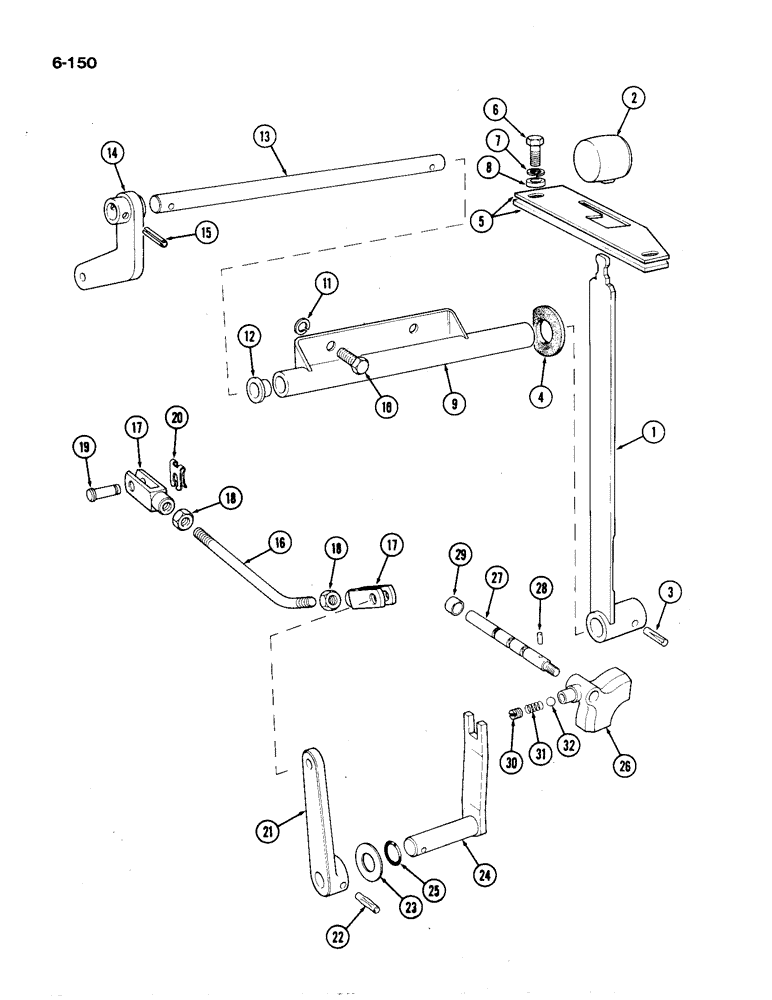

Запчасти Case IH 1194 (6-150) - POWER TAKE-OFF CONTROLS, TRACTORS WITH CAB (06) - POWER TRAIN

1

K306667

LEVER

- hand

1шт.

2

K307625

RUBBER

KNOB - hand lever

1шт.

3

K623883

SPRING

PIN - hand lever

1шт.

4

K952800

SEAL

- rubber

1шт.

5

K306851

BRACKET

GATE - hand lever, multi speed

1шт.

5

K306156

BRACKET

GATE - hand lever, single speed

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

7

K651848

WASHER

- lock, 8 mm

2шт.

8

K651778

WASHER

- 8 mm

2шт.

9

K202317

SUPPORT

BRACKET - cross shaft

1шт.

10

K650659

BOLT

- M10 x 20 mm

3шт.

11

K651849

WASHER

- lock, 10 mm

3шт.

12

628757

BUSHING - plastic

2шт.

13

K202320

SHAFT

- cross

1шт.

14

K307488

LEVER

- cross shaft

1шт.

15

K623885

PIN

- lever (Replaces K19562)

1шт.

16

K307208

ROD

- operating

1шт.

17

K659010

FORK

END - M10

2шт.

18

100016

NUT,M10 x 1.5, Cl 8

2шт.

19

K658614

PIN

- clevis

2шт.

20

K659106

PLATE, LOCKING

CLIP - spring

2шт.

21

K207246

LEVER

- operating

1шт.

22

K623925

PIN

- lever, 1/4 x 1-1/2 inch

1шт.

23

K916582

SHIM

1шт.

24

K206518

LEVER

AND SHAFT

1шт.

25

K623557

O-RING

- shaft

1шт.

26

K906701

SELECTOR

FORK - selector

1шт.

27

K942469

SELECTOR

ROD - selector

1шт.

28

K906700

PIN

- rod retaining

1шт.

29

K921603

BUSHING

SPACER - single speed

1шт.

30

K606021

SCREW

- 5/8 inch UNC

1шт.

31

K24831

SPRING

- detent

1шт.

32

K17063

BALL

- steel, 1/4 inch (6 mm)

1шт.
