Запчасти Case IH 1194 (6-144) - PTO CLUTCH RELEASE MECHANISM, TRACTORS WITH CAB (06) - POWER TRAIN

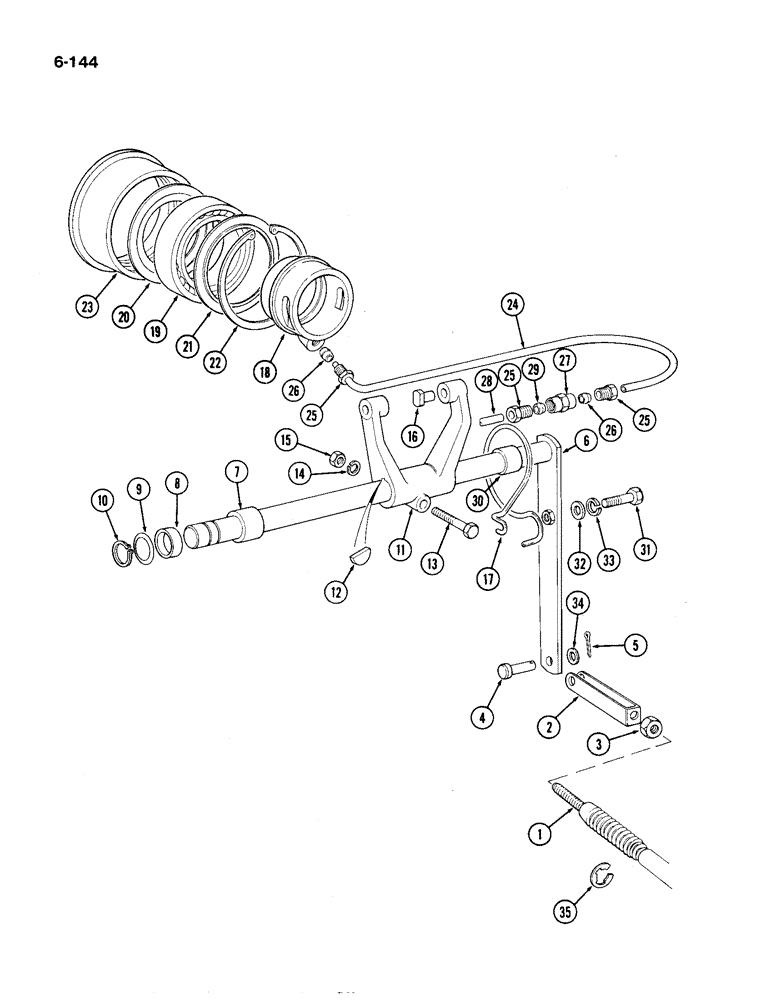

Схема запчастей Case IH 1194 - (6-144) - PTO CLUTCH RELEASE MECHANISM, TRACTORS WITH CAB (06) - POWER TRAIN
1
20
31
32
21
18
26
4
24
17
23
29
11
6
30
14
8
34
26
35
10
13
28
3
19
25
27
25
16
15
25
12
33
22
2
9
7
5

Артикул

Название

Примечание

Количество

1

K310598

CABLE

- inner and outer (Replaces K307920)

1шт.

2

K310584

FORK

- cable end (Replaces K659018)

1шт.

3

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

4

K625941

PIN

- clevis

1шт.

5

K652196

PIN

- cotter

1шт.

6

K206500

SHAFT

CROSS SHAFT AND ARM

1шт.

7

K207533

BUSHING

SPACER - cross shaft, left-hand

1шт.

8

K207534

BUSHING

WASHER - 1 inch (25 mm) special, cross shaft, right-hand

1шт.

9

K626749

WASHER

- Belleville, 1 inch

1шт.

10

K11128

CIRCLIP

RING - retaining, 1 inch (25 mm) external

1шт.

11

K928940

FORK

- PTO clutch

1шт.

12

K19612

KEY

- Woodruff, No. 608

2шт.

13

K600406

BOLT

- 3/8 UNC x 1-3/4 inch

1шт.

14

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

1шт.

15

280136

NUT,3/8"-16, G8

1шт.

16

K84748

TRUNNION

PIN - trunnion

2шт.

17

K307844

SPRING

- cross shaft return

1шт.

18

K928939

CARRIER

- release bearing

1шт.

19

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

BEARING - release

1шт.

20

K928741

RETAINER,76.33mm ID x 111.13mm OD x 0.79mm Thk

SHIELD - front

1шт.

21

K928741

RETAINER,76.33mm ID x 111.13mm OD x 0.79mm Thk

SHIELD - rear

1шт.

22

K12777

RING, SNAP

RING - retaining, 4-1/2 inch (115 mm) internal

1шт.

23

K928938

SLEEVE,104.78mm ID x 139.7mm OD x 55.56mm L

- thrust

1шт.

24

K928740

TUBE

- plastic, 3/16 x 11-3/4 inch

1шт.

25

K617956

NUT

- tube, 3/8 inch UNF

3шт.

26

K622407

FERRULE

SLEEVE - 1/4 inch

2шт.

27

K626045

FITTING

UNION - 3/8 inch UNF

1шт.

28

K926411

TUBE,0.187" OD x 2.625" L

- main frame

1шт.

29

K19588

FERRULE

SLEEVE - 3/16 inch

1шт.

30

K628753

BUSHING

- main frame

3шт.

31

K650629

SCREW

BOLT - M6 x 25 mm

1шт.

32

K651777

WASHER

- 6 mm

1шт.

33

K651847

WASHER, LOCK

WASHER - lock, 6 mm

1шт.

34

K651778

WASHER

- 8 mm

1шт.

35

K621595

RING, SNAP

CLIP - cable to tank bracket

1шт.

Выбрано товаров: 35
