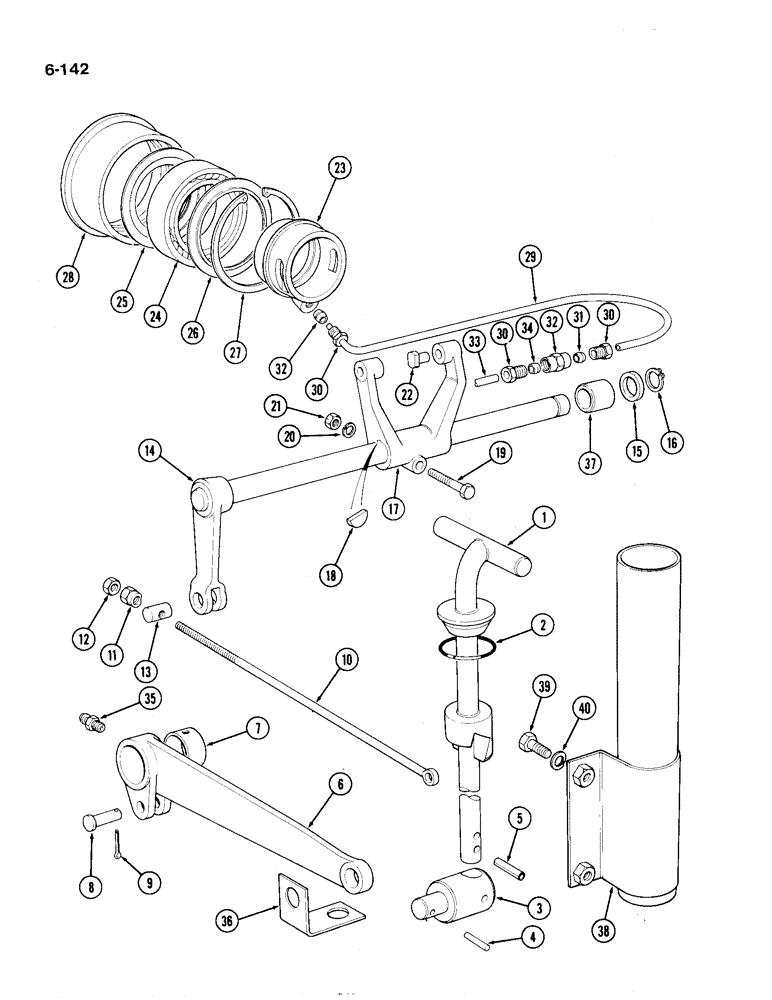

Запчасти Case IH 1194 (6-142) - INDEPENDENT PTO CLUTCH RELEASE MECHANISM, TRACTORS WITHOUT CAB (06) - POWER TRAIN

1

K206325

LEVER

- hand

1шт.

2

K628851

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-1/2 inch (38 mm) internal diameter

1шт.

3

K200393

PIVOT

- hand lever

1шт.

4

K690947

PIN

- spring, 5/16 x 1-1/4 inch

2шт.

5

K15439

PIN

- 3/16 x 1-1/8 inch

1шт.

6

K201374

LEVER

- with bushing, Includes: Ref. 7

1шт.

7

K947252

BUSHING

- clutch lever

2шт.

8

K69984

SPLIT PIN/SAFETY PIN

PIN - clevis, 3/8 x 1-5/16 inch

1шт.

8

K950269

PIN

- (North America only)

1шт.

8

K621562

RING, SNAP

RING - retaining (North America only)

2шт.

9

K19531

PIN

- cotter, 3/32 x 1-1/4 inch

1шт.

10

K200394

ROD

- lever to cross shaft

1шт.

11

K607525

NUT

- adjusting, 3/8 inch UNC

2шт.

12

280136

NUT,3/8"-16, G8

1шт.

13

K14744

PIN

- 3/4 x 1-1/2 inch

1шт.

14

K203124

SHAFT

CROSS SHAFT AND ARM - (Prior to P.I.N. 11040729)

1шт.

14

K210053

ARM

CROSS SHAFT AND ARM - (P.I.N. 11040729 and after)

1шт.

15

K626749

WASHER

- Belleville, 1 inch

1шт.

16

K11128

CIRCLIP

RING - retaining, 1 inch (25 mm) external

1шт.

17

K928940

FORK

- PTO clutch

1шт.

18

K19612

KEY

- Woodruff, No. 608

1шт.

19

K600406

BOLT

- 3/8 UNC x 1-3/4 inch

1шт.

20

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

1шт.

21

280136

NUT,3/8"-16, G8

1шт.

22

K84748

TRUNNION

PIN - trunnion

2шт.

23

K928939

CARRIER

- release bearing

1шт.

24

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

BEARING - release

1шт.

25

K928741

RETAINER,76.33mm ID x 111.13mm OD x 0.79mm Thk

SHIELD - front

1шт.

26

K928742

RETAINER

SHIELD - rear

1шт.

27

K12777

RING, SNAP

RING - retaining, 4-1/2 inch (115 mm) internal

1шт.

28

K928938

SLEEVE,104.78mm ID x 139.7mm OD x 55.56mm L

- thrust

1шт.

29

K928740

TUBE

- plastic, 3/16 x 11-3/4 inch

1шт.

30

K617956

NUT

- tube, 3/8 inch UNF

3шт.

31

K622407

FERRULE

SLEEVE - 1/4 inch

2шт.

32

K626045

FITTING

UNION - 3/8 inch UNF

1шт.

33

K926411

TUBE,0.187" OD x 2.625" L

- 3/16 inch x 2-7/8 inch, main frame

1шт.

34

K19588

FERRULE

SLEEVE - 3/16 inch

1шт.

35

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

36

K200618

SUPPORT

BRACKET

1шт.

37

K628753

BUSHING

- main frame

4шт.

38

K308491

TUBE

- hand lever (P.I.N. 11039983 and after)

1шт.

39

K650628

BOLT

- M6 x 20 mm

2шт.

40

K651847

WASHER, LOCK

WASHER - lock, 6 mm

2шт.
