(6-140) - POWER ADJUSTED REAR WHEELS

Запчасти Case IH 1194 (6-140) - POWER ADJUSTED REAR WHEELS (06) - POWER TRAIN

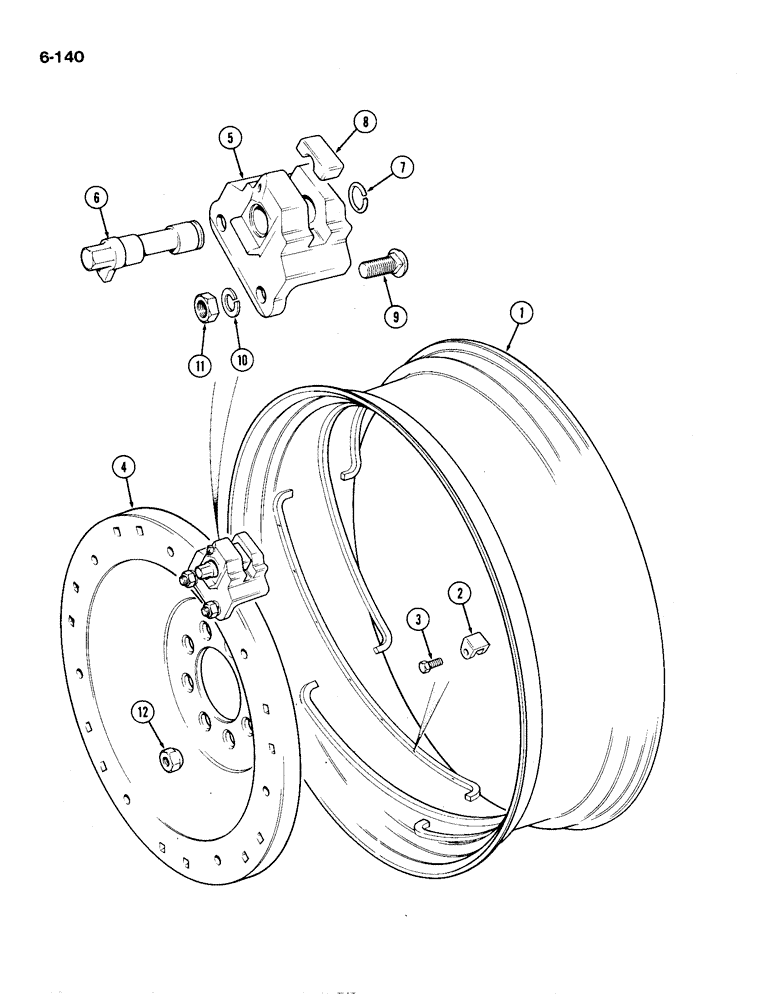

Схема запчастей Case IH 1194 - (6-140) - POWER ADJUSTED REAR WHEELS (06) - POWER TRAIN
11
7
9
5
2
4
1
6
12
3
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

K302517

RIM

REAR RIM AND CENTER ASSEMBLY - fits 12.4/11-28, 13.6/12-28 and 14.9/13-28 tires, Includes: Ref. 1 - 11

2шт.

1

K302519

RIM

- rear wheel, W11 x 28

1шт.

2

K917337

STOP

BRACKET - stop, wheel rim

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket

2шт.

4

K302518

WHEEL

CENTER - rear wheel

1шт.

5

K917340

SUPPORT

BODY

4шт.

6

K200128

PIN

- eccentric

4шт.

7

K917341

RING

- retaining, eccentric pin

4шт.

8

K917342

BLOCK

4шт.

9

K304694

CARRIAGE BOLT

- M16 x 38 mm

8шт.

10

K19475

WASHER

- lock, 5/8 inch

8шт.

11

K651530

NUT

- M16

8шт.

12

K617176

NUT

- wheel

16шт.
