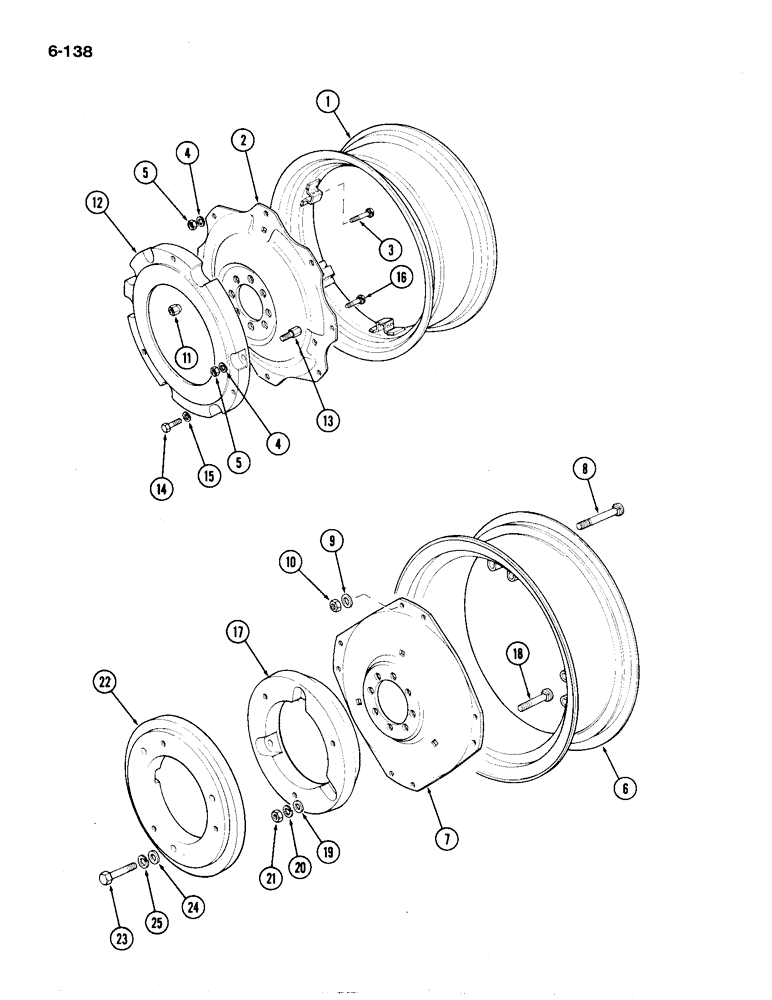

Запчасти Case IH 1194 (6-138) - REAR WHEELS AND BALLAST WEIGHTS (06) - POWER TRAIN

K301059

WHEEL

REAR RIM AND CENTER ASSEMBLY - fits 13.6/12-28 and 14.9/13-28 tires, Includes: Ref. 1 - 5

1шт.

1

K301060

RIM

- rear wheel, W11 x 28

1шт.

2

K301003

WHEEL

CENTER - wheel, rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 UNF x 2-7/8 inch

8шт.

4

K651951

WASHER

- 5/8 inch (16 mm)

8шт.

5

425-1110

NUT,5/8"-18, G5

8шт.

K302524

RIM

REAR RIM AND CENTER ASSEMBLY - fits 14.9-24 tires, Includes: Ref. 1 - 5

2шт.

1

K301040

DISC, WHEEL

RIM - rear wheel, W12 x 24

1шт.

2

K301038

WHEEL

CENTER - wheel, rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 UNF x 2-7/8 inch

12шт.

4

K651951

WASHER

- 5/8 inch (16 mm)

12шт.

5

425-1110

NUT,5/8"-18, G5

12шт.

K306358

WHEEL

REAR RIM AND CENTER ASSEMBLY - fits 12.4/11-32 tires, Includes: Ref. 6 - 10

2шт.

6

K306359

WHEEL

RIM - rear wheel, W10 x 32

1шт.

7

K306360

DISC, WHEEL

CENTER - wheel, rear

1шт.

8

K302532

BOLT

- rim, M16 x 120 mm

8шт.

9

K651951

WASHER

- 5/8 inch (16 mm)

8шт.

10

K651496

NUT

- M16

8шт.

11

K617167

NUT

- wheel, 5/8 inch UNF

16шт.

UK729

WHEEL

BALLAST WEIGHT UNIT - for wheel K301059, Includes: Ref. 12 - 16

1шт.

12

K86167

WEIGHT

BALLAST WEIGHT - 100 lb (45 kg)

2шт.

13

K914869

STUD

- 5/8 inch UNF, special

6шт.

14

K19305

BOLT

- 5/8 BSF x 2 inch

6шт.

15

K19485

WASHER

- lock, 5/8 inch

12шт.

16

K611280

BOLT

- rim, 5/8 UNC x 3 inch

6шт.
