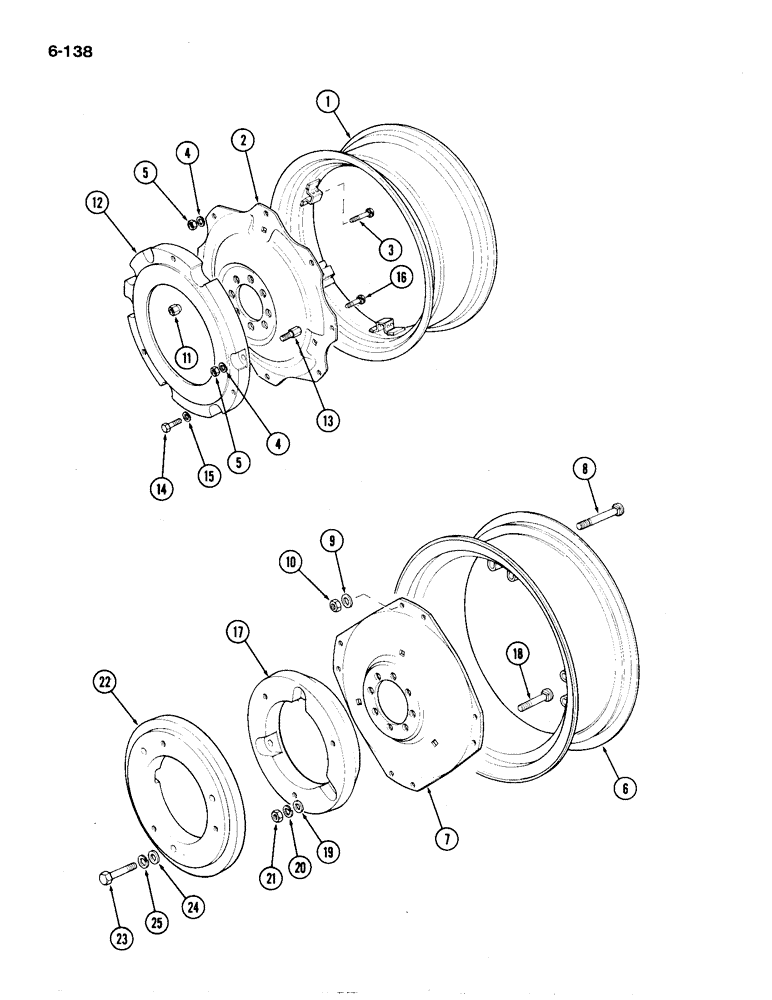

Запчасти Case IH 1194 (6-138[1]) - LOW PROFILE SPECIAL (06) - POWER TRAIN

1

A161257

RIM

- rear wheel, W15-24 (Fits 16.9-24 R1 or R3 tire)

2шт.

2

K301038

WHEEL

CENTER - wheel, rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 UNF x 2-7/8 inch

12шт.

4

K19475

WASHER

- 5/8 inch (16 mm)

12шт.

5

425-1110

NUT,5/8"-18, G5

12шт.

K611266

BOLT

- mounting, 5/8 NF x 2-1/8 inch

16шт.

K617171

WHEEL NUT

- 5/8 inch NF

16шт.

UK5926

WHEEL

WEIGHT UNIT - ballast, for wheel K306358, Includes: 18 - 25

1шт.

17

K207479

WHEEL

WEIGHT - ballast, inner, 45 kg (100 lb)

2шт.

18

K611283

BOLT

- 5/8 UNF x 3-1/2 inch, Serial Range: weight-wheel

6шт.

19

K626855

WASHER

- 5/8 inch (10 mm)

6шт.

20

K19485

WASHER

- lock, 5/8 inch

6шт.

21

425-1110

NUT,5/8"-18, G5

6шт.

22

K207480

WHEEL

WEIGHT - ballast, outer, 44 kg (97 lb)

2шт.

23

K601366

BOLT

- 5/8 UNC x 3-1/2 inch, Serial Range: weight-weight

6шт.

24

K626855

WASHER

- 5/8 inch (10 mm)

6шт.

25

K19485

WASHER

- lock, 5/8 inch

6шт.
