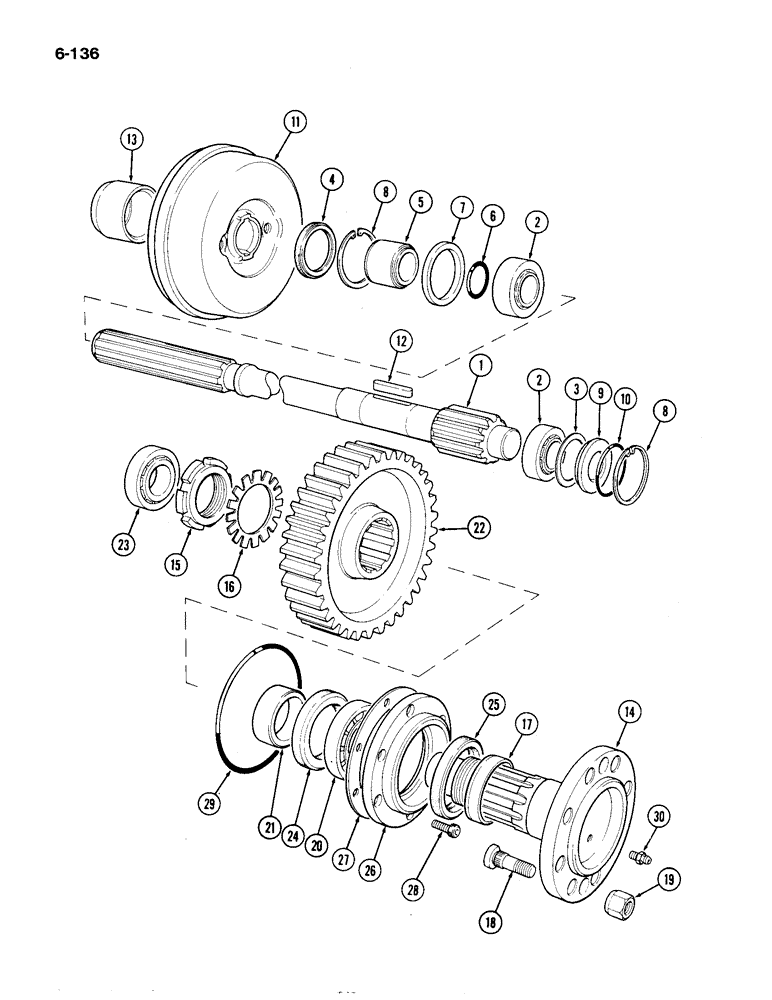

Запчасти Case IH 1194 (6-136) - FINAL DRIVE GEARS AND SHAFTS (06) - POWER TRAIN

1

K954707

SHAFT

- spur pinion, 9 teeth, 9:37 ratio

2шт.

2

K19186

BEARING, ROLLER

BEARING - roller, tapered

4шт.

3

K907514

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

3

K907515

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

4

K623455

SEAL

- oil, 2-1/2 x 3-1/4 x 3/8 inch (64 x 82 x 10 mm)

2шт.

5

K956737

COLLAR

2шт.

6

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- 1-3/4 inch (44 mm) internal diameter

2шт.

7

K904256

SPACER

2шт.

8

K13042

RING, SNAP

RING - retaining, 3-1/4 inch (82 mm) internal

4шт.

9

K929045

COVER

- end

2шт.

10

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3 inch (76 mm) internal diameter

2шт.

11

K917989

BRAKE

DRUM - brake

2шт.

12

K622324

KEY

- 11/32 x 1/2 inch

2шт.

13

K201338

SLEEVE

COLLAR

2шт.

14

K963569

SHAFT ASSY.

SHAFT - final drive, Includes: 15 - 17

2шт.

15

K13368

NUT

- ring, 2-1/4 inch, special

1шт.

16

K13367

WASHER

- tab

1шт.

17

K905287

SPLIT COLLAR

COLLAR

1шт.

18

K611266

BOLT

- 5/8 UNF x 2-1/8 inch, special

16шт.

19

K617171

WHEEL NUT

- 5/8 inch UNF, wheel mounting

16шт.

20

K19185

TAPERED BEARING

BEARING - roller, tapered

2шт.

21

K929048

SLEEVE

- final drive shaft

2шт.

22

K61771

WHEEL

- spur, 37 teeth, 9:37 ratio

2шт.

23

K19186

BEARING, ROLLER

BEARING - roller, tapered

2шт.

24

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

- oil, 90 x 110 x 12 mm, inner

2шт.

25

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

- oil, 3-1/4 x 5 inch (82 x 127 mm) outer

2шт.

26

K929044

HOUSING

- oil seal

2шт.

27

K902772

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

27

K902773

SHIM,.006" Thk

(0.15 mm) .006" Thk

1шт.

27

K902774

SHIM,.009" Thk

(0.23 mm) .009" Thk

1шт.

27

K902775

GASKET

SHIM - 0.030 inch (0.38 mm)

1шт.

27

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030 inch (0.76 mm)

1шт.

28

K606894

SCREW

BOLT - 7/16 inch UNC

12шт.

29

K623537

O-RING,6.475" ID x 7.025" OD x 0.275"

- 6-1/2 inch (165 mm) internal diameter

2шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.
