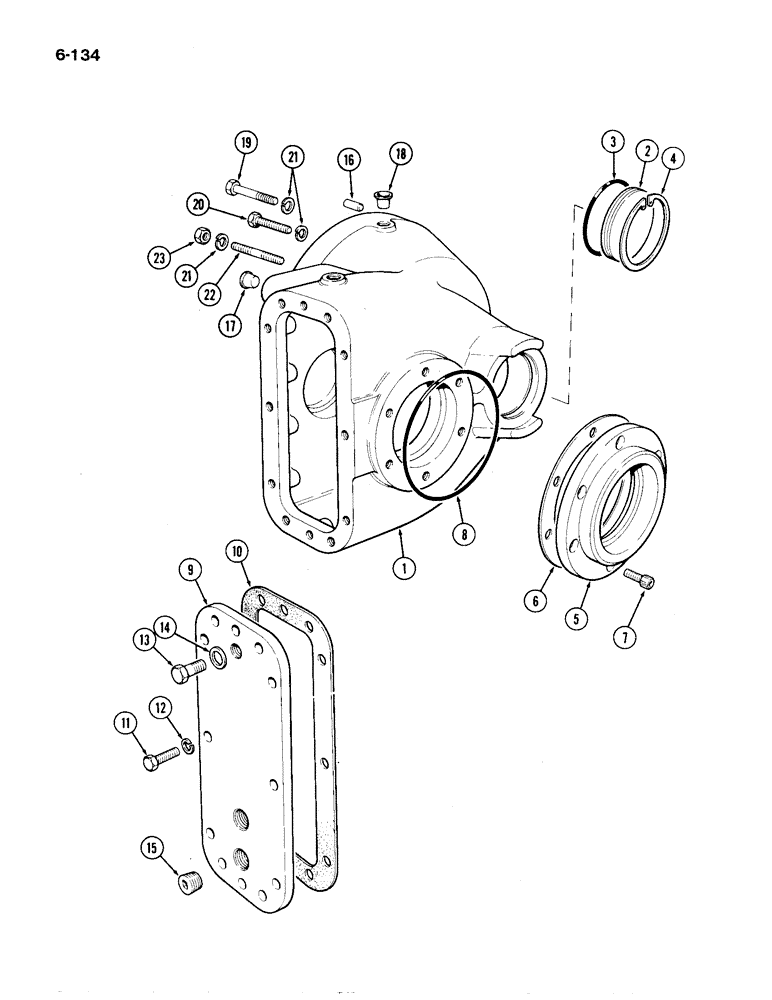

Запчасти Case IH 1194 (6-134) - FINAL DRIVE HOUSING AND COVERS (06) - POWER TRAIN

1

K954704

HOUSING

2шт.

2

K929045

COVER

- end

2шт.

3

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3 inch (76 mm) internal diameter

2шт.

4

K13042

RING, SNAP

RING - retaining, 3-1/4 inch (82 mm) internal

2шт.

5

K929044

HOUSING

- oil seal

2шт.

6

K902772

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

6

K902773

SHIM,.006" Thk

(0.15 mm) .006" Thk

1шт.

6

K902774

SHIM,.009" Thk

(0.23 mm) .009" Thk

1шт.

6

K902775

GASKET

SHIM - 0.015 inch (0.38 mm)

1шт.

6

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030 inch (0.76 mm)

1шт.

7

K606894

SCREW

BOLT - self-locking, 7/16 inch UNC

12шт.

8

K623537

O-RING,6.475" ID x 7.025" OD x 0.275"

- 6-1/2 inch (165 mm) internal diameter

2шт.

9

K951755

NUT

COVER

2шт.

10

K923220

GASKET

2шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

24шт.

12

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

24шт.

13

K907203

PLUG

BOLT - breather, 1/2 inch UNC

2шт.

14

K19501

WASHER

WASHER - sealing, 1/2 inch (13 mm)

2шт.

15

K12362

PLUG

- tapered, 1 inch BSP

4шт.

16

K11482

PIN

DOWEL - 7/16 x 1-1/4 inch

4шт.

17

K628085

PLUG,Cap, .458" OD

- plastic, 1/2 inch

6шт.

18

K628092

PLUG,Cap, .547" OD

- plastic, 1-1/2 inch

2шт.

19

K600908

BOLT

- 1/2 UNC x 1-3/4 inch, reductions to rear axle, tractor with axle mounted roll bar

8шт.

20

K603149

SCREW

BOLT - 1/2 UNC x 1-1/2 inch, reductions to rear axle

16шт.

21

K19485

WASHER

- lock, 1/2 inch

20шт.

22

K608426

STUD

- 1/2 UNC x 2-1/2 inch

4шт.

21

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

20шт.

23

K607004

NUT

- 1/2 inch UNC

4шт.
