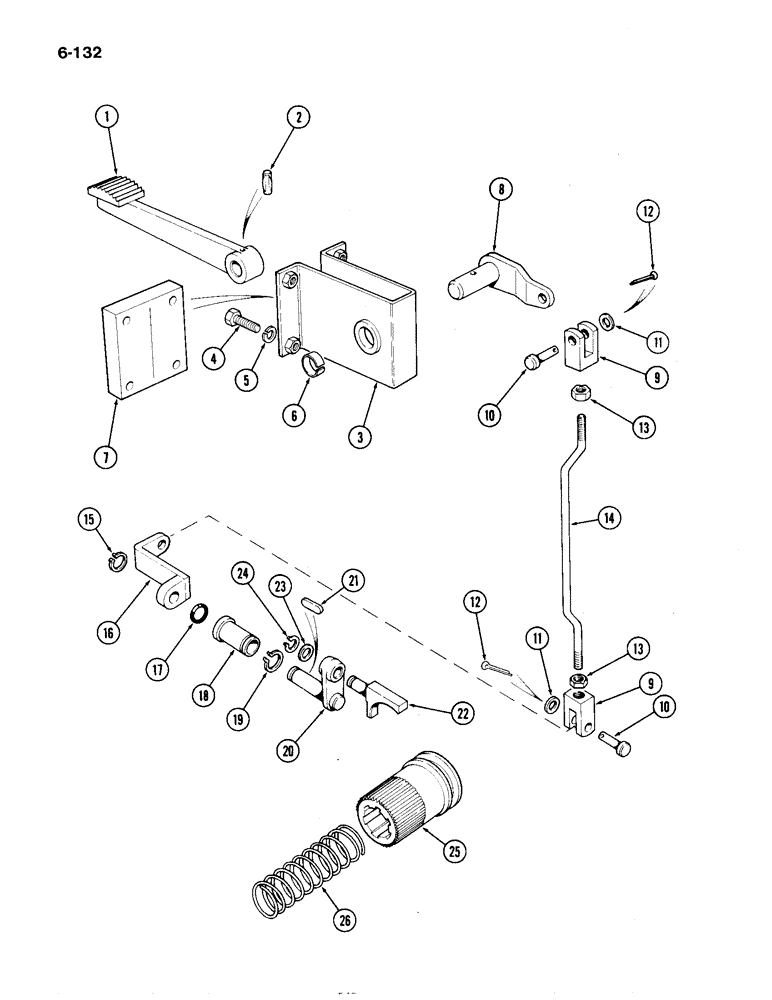

Запчасти Case IH 1194 (6-132) - DIFFERENTIAL LOCK, TRACTORS WITH CAB (06) - POWER TRAIN

1

K202528

PEDAL

- differential lock

1шт.

2

K623896

PIN

- 5/16 x 1-1/2 inch

1шт.

3

K308206

BRACKET

- pedal support

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

5

K651848

WASHER

- lock, 8 mm

4шт.

6

K628754

BUSHING

2шт.

7

K307057

FOAM

SEAL - foam

1шт.

8

K202861

CAP

LEVER - pedal pivot

1шт.

9

K202301

FORK

END

2шт.

10

K69984

SPLIT PIN/SAFETY PIN

PIN - 3/8 x 1-3/16 inch

2шт.

10

K950269

PIN

- (North America only)

1шт.

10

K621562

RING, SNAP

RING - retaining (North America only)

2шт.

11

K19472

WASHER

- 3/8 inch (10 mm)

2шт.

12

K623607

PIN

- cotter, 3/32 inch

2шт.

13

280136

NUT,3/8"-16, G8

2шт.

14

K202698

ROD

- 3/8 UNC x 11 inch

1шт.

15

K11797

RING, SNAP

RING - retaining, 5/8 inch (16 mm) external

1шт.

16

K306740

LEVER

1шт.

17

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8 inch (16 mm) internal diameter

1шт.

18

K903494

BUSHING

- rear axle housing

1шт.

19

K34454

RING, SNAP

RING - retaining, 7/8 inch (22 mm) external

1шт.

20

K903197

SHAFT

AND ARM

1шт.

21

K622309

KEY

- 3/16 x 5/32 x 3/4 inch

1шт.

22

K903226

SELECTOR

FORK - selector

1шт.

23

K626674

WASHER

- 1/2 inch (13 mm) special

1шт.

24

K11302

RING, SNAP

RING - retaining, 1/2 inch (13 mm)

1шт.

25

K903191

SLEEVE

- locking

1шт.

26

K625119

SPRING

- return

1шт.
