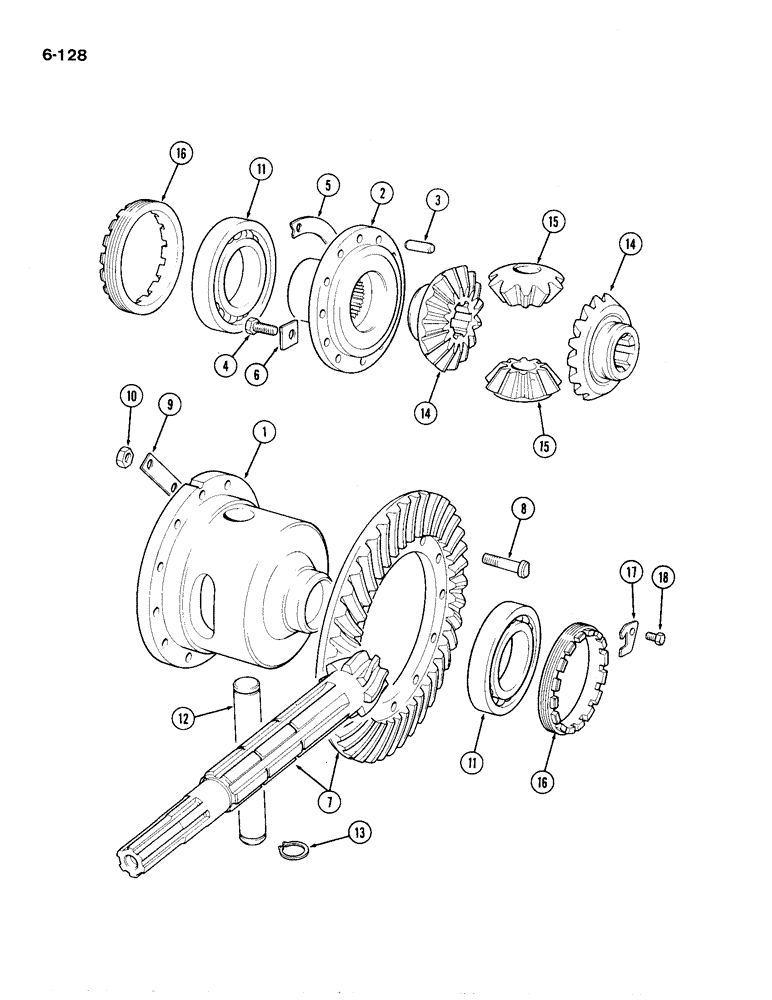

Запчасти Case IH 1194 (6-128) - DIFFERENTIAL (06) - POWER TRAIN

1

K942316

DIFFERENTIAL

CAGE

1шт.

2

K903184

FLANGE

PLATE - end, cage

1шт.

3

K621801

PIN

DOWEL - 3/8 x 1-1/8 inch

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

5

K903185

WASHER

- tab

3шт.

6

K626372

WASHER

- tab

3шт.

7

K964879

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - 7:43 teeth

1шт.

8

K905664

WHEEL BOLT

- 7/16 inch UNC, special, bevel wheel

12шт.

9

K30236

WASHER

WSHER - tab

6шт.

10

280717

NUT,7/16"-14, G5

12шт.

11

K19010

BALL BEARING

BEARING - ball

2шт.

12

K942318

PIN

- 1-1/8 inch

1шт.

13

K12207

RING, SNAP

RING - retaining, 1-1/8 inch (28 mm) external

2шт.

14

K30234

CONE PINION

GEAR - bevel, 16 teeth

2шт.

15

K942317

DIFFERENTIAL

PINION - bevel, 10 teeth

2шт.

16

K15007

RING, LOCKING

ADJUSTER

2шт.

17

K626420

WASHER

PLATE - lock

2шт.

18

K602801

BOLT (SPREADER)

BOLT - 5/16 UNC x 1/2 inch

2шт.
