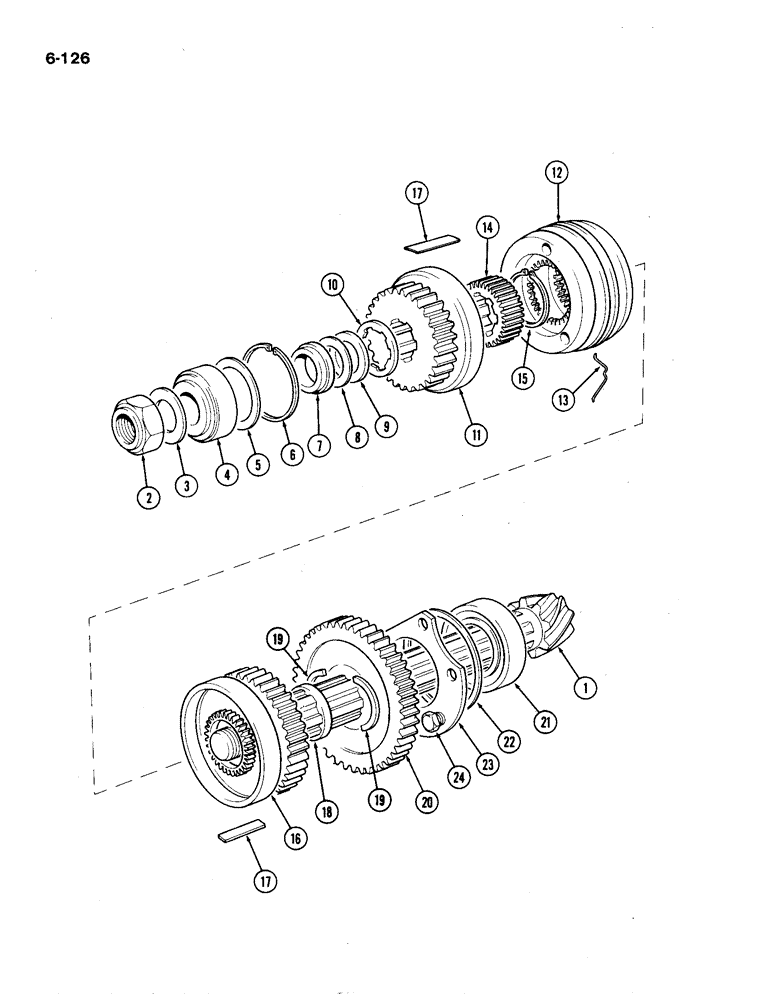

Запчасти Case IH 1194 (6-126) - BEVEL PINION SHAFT (06) - POWER TRAIN

1

K964879

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - 7:43 teeth

1шт.

2

K622803

NUT

- nyloc, 1-1/8 inch BSF left-hand

1шт.

3

K14687

WASHER

- 1-1/8 inch (28 mm)

1шт.

4

K620061

BEARING, ROLLER

BEARING - roller

1шт.

5

K627523

SPACER

1шт.

6

K17023

CIRCLIP

RING - retaining, 3 inch (76 mm) internal

1шт.

7

K917844

BUSHING

SPACER

1шт.

8

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002 inch (0.05 mm)

1шт.

8

K917846

SHIM

- 0.005 inch (0.13 mm)

1шт.

8

K917847

SHIM

- 0.010 inch (0.25 mm)

1шт.

8

K917848

SHIM

- 0.030 inch (0.76 mm)

1шт.

9

K940969

BUSHING

SPACER

1шт.

10

K926249

WASHER

- splined

1шт.

11

K942671

GEAR

- high, 28 teeth

1шт.

12

K207796

GEAR

AND CONES - sliding (Replaces K928223)

1шт.

13

K926266

SPRING

- sliding gear

6шт.

14

K928226

GEAR

- dog clutch

2шт.

15

K12922

RING, SNAP

RING - retaining, 1-3/4 inch (44 mm) external

1шт.

16

K942672

GEAR

- medium, 35 teeth

1шт.

17

K928621

WEAR PAD

PAD - bearing

12шт.

18

K948472

WASHER

RETAINER - split rings

1шт.

19

K948473

RING

- split, half

2шт.

20

K948512

GEAR

- low, 47 teeth

1шт.

21

K620131

ROLLER

BEARING - roller

1шт.

22

K942872

SHIM

- 0.002 inch (0.05 mm)

1шт.

22

K942873

SHIM

- 0.003 inch (0.08 mm)

1шт.

22

K942874

SHIM

- 0.010 inch (0.25 mm)

1шт.

22

K942875

SHIM

- 0.030 inch (0.76 mm)

1шт.

23

K943068

COVER

PLATE - rear bearing cover

1шт.

24

K603043

SCREW

BOLT - 7/16 UNC x 1 inch

5шт.
