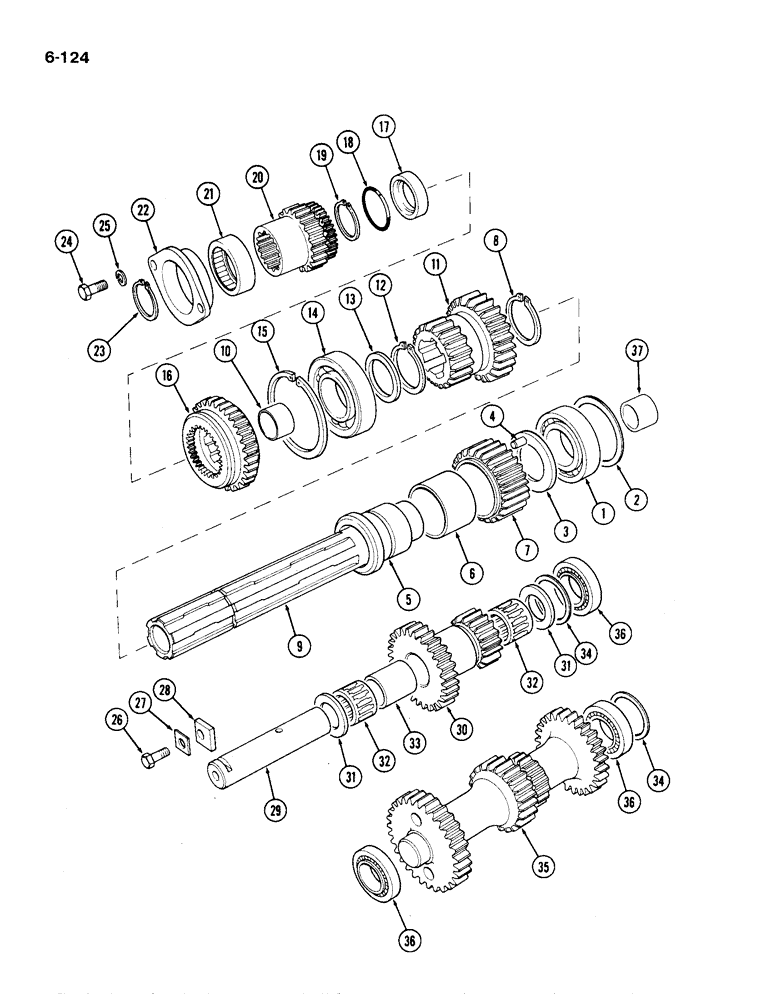

Запчасти Case IH 1194 (6-124) - DRIVESHAFT AND LAYSHAFTS (06) - POWER TRAIN

1

K19047

BALL BEARING

BEARING - ball

1шт.

2

K908372

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

2

K908373

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

2

K908374

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

3

K908940

WASHER

- thrust

1шт.

4

K34594

PIN

1шт.

5

K85241

CARRIER

- reverse gear

1шт.

6

K24773

BUSHING

- reverse gear

1шт.

7

K963536

GEAR

- reverse, 25 teeth, with bushing

1шт.

8

K13809

RING, SNAP

RING - retaining, 45 mm, external

1шт.

9

K205550

DRIVE SHAFT

SHAFT - drive

1шт.

10

K24774

BUSHING

- driveshaft, front

1шт.

11

K205535

GEAR

PINION - range, 18:26 teeth

1шт.

12

K12922

RING, SNAP

RING - retaining, 1-3/4 inch (44 mm) external

1шт.

13

K940671

WASHER

SPACER

1шт.

14

K19081

BALL BEARING

BEARING - ball

1шт.

15

K16296

RING

- retaining, 3-3/4 inch (95 mm) internal

1шт.

16

K928436

GEAR

- driven, 32 teeth

1шт.

17

K15176

OIL SEAL

- oil, 1-1/8 x 1-7/8 x 3/8 inch (28 x 47 x 10 mm)

1шт.

18

K623555

O-RING,1.396" OD x 0.255" Width

- 1-1/2 inch (38 mm) internal diameter

1шт.

19

K621452

RING, SNAP

RING - retaining, 1-7/16 inch (36 mm) external

1шт.

20

K957323

GEAR

- driving, 21 teeth

1шт.

21

K620124

BEARING

- roller, needle

1шт.

22

K928437

BEARING HOUSING

HOUSING - bearing

1шт.

23

K12922

RING, SNAP

RING - retaining, 1-3/4 inch (44 mm) external

1шт.

24

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

UNC Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

25

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

26

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

UNC Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

27

K626423

WASHER

- tab

1шт.

28

K928456

PLATE

- locking

1шт.

29

K928439

SHAFT

SPINDLE - layshaft

1шт.

30

K928435

SHAFT

LAYSHAFT - slow-normal

1шт.

31

K627478

WASHER

- thrust

1шт.

32

K620273

BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W

BEARING - roller, needle

2шт.

33

K627178

BUSHING

SPACER

1шт.

34

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

1шт.

34

K914703

SHIM,.003" Thk

1шт.

34

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

(0.018 mm) .007" Thk

1шт.

34

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

(0.025 mm) .010" Thk

1шт.

35

K942670

SHAFT

LAYSHAFT

1шт.

36

K620076

BEARING, ROLLER

BEARING - roller

2шт.

37

K628765

BUSHING

- driveshaft, rear

1шт.
