Запчасти Case IH 1194 (6-118) - GEAR SHIFT LEVERS, TRACTORS WITHOUT CAB (06) - POWER TRAIN

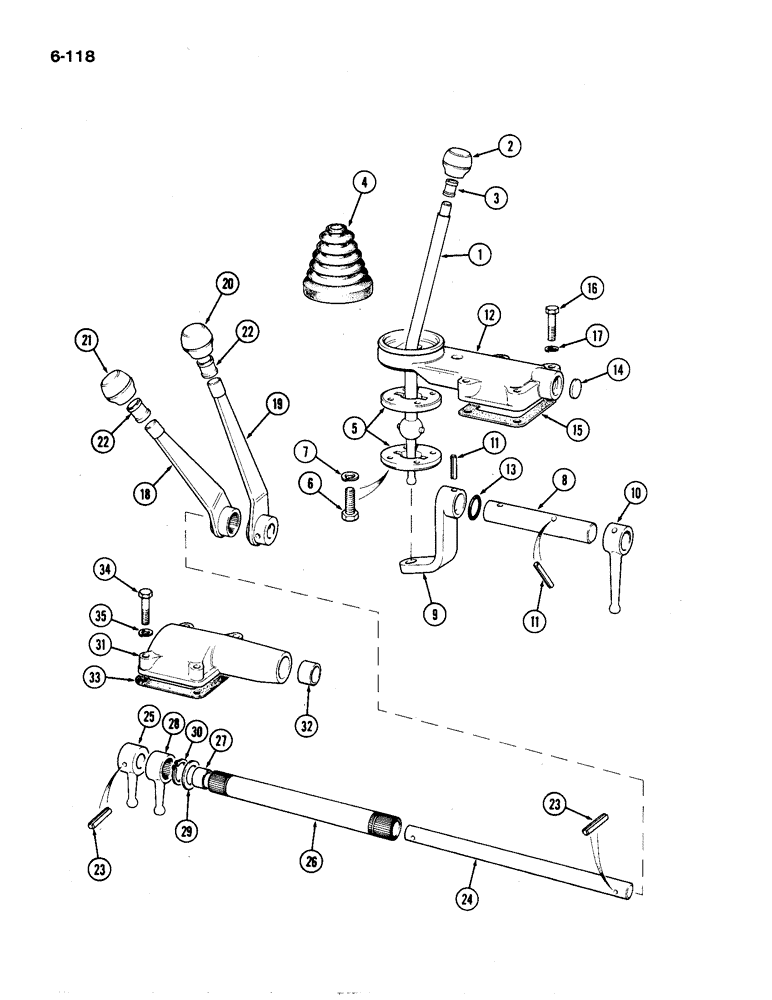

Схема запчастей Case IH 1194 - (6-118) - GEAR SHIFT LEVERS, TRACTORS WITHOUT CAB (06) - POWER TRAIN
5
20
31
23
28
13
3
16
15
19
8
30
24
27
23
26
22
12
22
9
11
17
21
33
2
34
11
25
18
14
32
35
7
29
4
6
1
10

Артикул

Название

Примечание

Количество

1

K206288

LEVER

GEAR LEVER - shift

1шт.

2

K207409

BUTTON

KNOB - gear lever

1шт.

3

K628472

RING

- retaining

1шт.

4

K950494

RUBBER

BOOT - gear lever

1шт.

5

K200162

SPACER

HOUSING - ball

2шт.

6

K602739

SCREW

BOLT - 1/4 UNC x 1-1/8 inch

4шт.

7

K19480

SPRING WASHER

- lock, 1/4 inch

4шт.

8

K200160

SHAFT

- selector

1шт.

9

K200161

LEVER

ARM - selector shaft

1шт.

10

K950215

SELECTOR

LEVER - selector

1шт.

11

K623778

PIN, GROOVED

PIN - 5/16 x 1-3/8 inch

2шт.

12

K200159

GEAR

HOUSING - selector shaft

1шт.

13

K623630

SEAL

- oil, 7/8 inch (22 mm) internal diameter

1шт.

14

K623810

PLUG

- core, 1 inch diameter

1шт.

15

K950543

GASKET,0.2mm Thk

- housing to gearbox cover

1шт.

16

K600205

BOLT

- 5/16 UNC x 1-1/2 inch

4шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

18

K200203

LEVER

- high-low

1шт.

19

K200200

LEVER

- slow-normal

1шт.

20

K207408

KNOB

- slow-normal

2шт.

21

K206712

KNOB

- high-low

1шт.

22

K628472

RING

- retaining

2шт.

23

K623925

PIN

- 1/4 x 1-1/2 inch

2шт.

24

K200198

SHAFT

- slow-normal

1шт.

25

K950005

SELECTOR

LEVER - sow-normal

1шт.

26

K200199

SHAFT

TUBE - high-low

1шт.

27

K621303

BUSHING

-, Serial Range: shaft-tube

2шт.

28

K950004

SELECTOR

LEVER - high-low

1шт.

29

K950002

BUSHING

WASHER - 1 inch

1шт.

30

K11128

CIRCLIP

RING - retaining, 1 inch (25 mm) external

1шт.

31

K950000

HOUSING

- gear change

1шт.

32

K628750

BUSHING

- housing

1шт.

33

K950543

GASKET,0.2mm Thk

- housing to gearbox cover

1шт.

34

K600205

BOLT

- 5/16 UNC x 1-1/2 inch

4шт.

35

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

Выбрано товаров: 35
