Запчасти Case IH 1194 (6-112) - CLUTCH PEDAL AND MASTER CYLINDER, TRACTORS WITH CAB (06) - POWER TRAIN

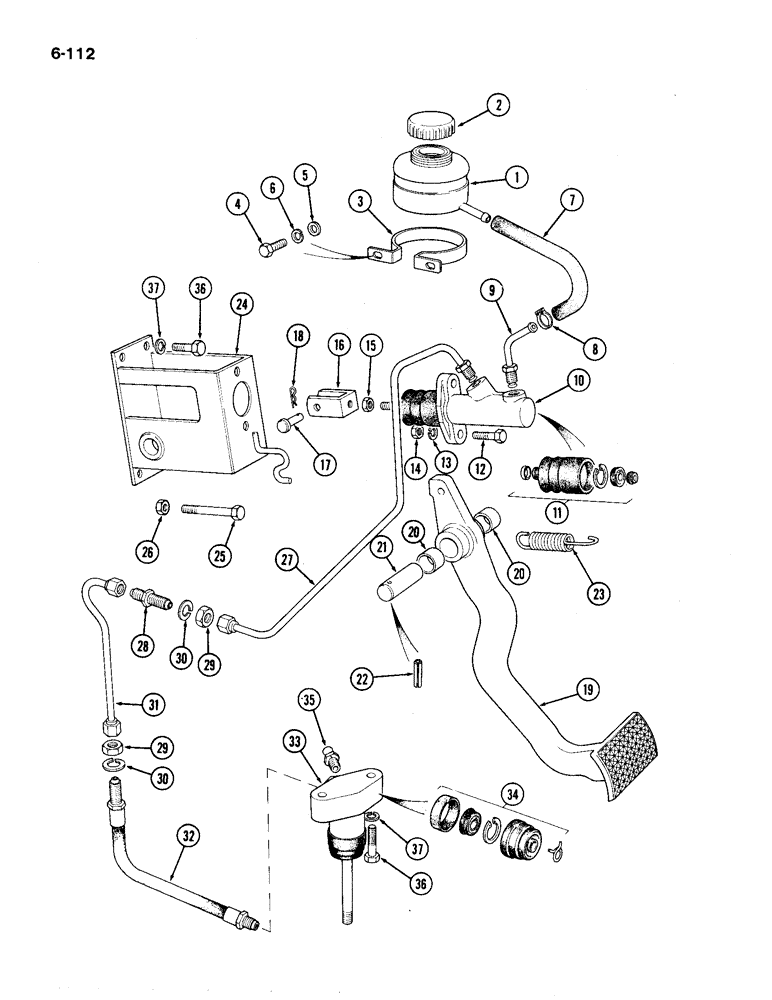

Схема запчастей Case IH 1194 - (6-112) - CLUTCH PEDAL AND MASTER CYLINDER, TRACTORS WITH CAB (06) - POWER TRAIN
33
13
30
16
10
36
32
5
21
6
28
7
20
9
15
20
12
24
34
35
25
19
2
22
3
29
4
37
30
18
14
23
8
27
29
31
1
36
37
11
17
26

Артикул

Название

Примечание

Количество

1

K301442

CONTAINER

RESERVOIR, Includes: Ref. 2 & 3

1шт.

2

K301443

CAP

- fill

1шт.

3

K301455

CLIP

1шт.

4

K652474

BOLT

- M6 x 12 mm

2шт.

5

K651777

WASHER

WSHER - 6 mm

2шт.

6

K651847

WASHER, LOCK

WASHER - lock, 6 mm

2шт.

7

K203032

HOSE

- 6 x 215 mm, reservoir outlet

1шт.

8

K656903

CLIP

- hose

1шт.

9

K302099

PIPE

TUBE - master cylinder inlet

1шт.

10

K950544

CYLINDER,36.32mm Stroke

- master, Includes: Ref. 11

1шт.

11

K964572

SEAL KIT

SEAL KIT - master cylinder

1шт.

12

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- 5/16 UNC x 1-1/8 inch

2шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

15

425-115

NUT,5/16"-24, G5

- lock, 5/16 inch UNF

1шт.

16

K622212

FORK

END - 5/16 inch UNF

1шт.

17

K625930

PIN

- clevis, fork

1шт.

18

K625040

CLIP

- spring

1шт.

19

K307848

PEDAL

- clutch, Includes: Ref. 20

1шт.

20

K655525

BUSHING

2шт.

21

K303545

PIN

- clutch pedal pivot

1шт.

22

K690706

PIN

- spring

1шт.

23

K303540

SPRING

1шт.

24

K303157

MOUNTING PARTS

BRACKET - clutch pedal support

1шт.

25

K650646

BOLT

- M8 x 40 mm, pedal stop

1шт.

26

K651533

BOLT - M8 x 40 mm, pedal stop (replaces K650646)

1шт.

26

K650553

NUT

- M8

1шт.

27

K301271

PIPE

TUBE - master, Serial Range: cylinder-union

1шт.

28

K301280

FITTING

UNION - M12

1шт.

29

K652100

LOCK NUT

- lock, M12

2шт.

30

K626345

LOCK WASHER

WASHER - lock, 12 mm

2шт.

31

K302614

PIPE

TUBE - union to flexible tube

1шт.

32

K957165

HOSE,12.6" L

TUBE - flexible, M12 x 320 mm

1шт.

33

K957166

MASTER CYLINDER,25.4mm Stroke

CYLINDER - slave, Includes: Ref. 34 & 35

1шт.

34

K964574

KIT

SEAL KIT

1шт.

35

K964534

SCREW,M12 x 1

- air removal

1шт.

36

K650648

BOLT

- M8 x 50 mm

2шт.

37

K651848

WASHER

- lock, 8 mm

2шт.

Выбрано товаров: 38
