Запчасти Case IH 1194 (6-106) - INDEPENDENT CLUTCH (LAYCOCK) (06) - POWER TRAIN

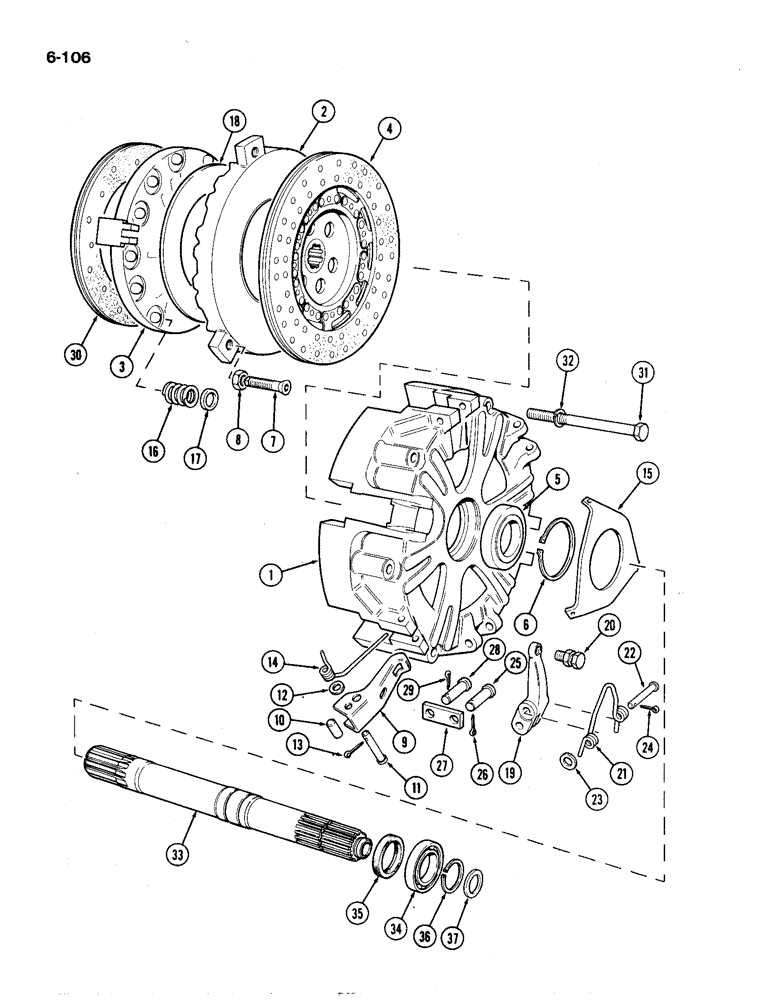

Схема запчастей Case IH 1194 - (6-106) - INDEPENDENT CLUTCH (LAYCOCK) (06) - POWER TRAIN
18
26
28
17
19
36
15
8
22
1
20
5
31
23
10
25
6
11
2
33
14
13
34
35
29
16
37
3
9
30
32
4
12
27
21
7
24

Артикул

Название

Примечание

Количество

K202291

CLUTCH ASSEMBLY

- (Laycock 87756/14), Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

COVER

1шт.

2

K955007

PLATE, THRUST

PLATE - pressure, transmission

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - pressure, PTO

1шт.

4

K202625

CLUTCH & DISC ASSY

PLATE - driven, 12 inch (305 mm) transmission, Includes: facings

1шт.

K965867

FACING

S - steel-backed Mintex H19 and rivets

1шт.

5

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

BEARING

1шт.

6

K89326

RING, SNAP

RING - retaining, clutch cover

1шт.

7

K964946

BOLT

SCREW - adjusting, set of three

1шт.

8

K947042

NUT

- lock, adjusting screw

3шт.

9

K261059

LEVER

- release, transmission (set of three)

1шт.

10

K947046

ROLLER

- release lever

3шт.

11

K947044

PIN

- roller pivot

3шт.

12

K947036

WASHER

- pivot pin

3шт.

13

K947035

COTTER PIN

PIN - cotter, pivot pin

3шт.

14

K206749

SPRING

- anti-rattle, transmission lever

3шт.

15

K206750

PLATE

- transmission release levers

1шт.

16

K951917

SPRING

- thrust, pink

3шт.

17

K947039

DISC

WASHER - insulating

6шт.

18

K952509

BELLEVILLE SPRING

SPRING - thrust, Belleville, pink stripe

1шт.

19

K964948

LEVER

- release, PTO, set of three

1шт.

20

K963626

LOCK NUT,M10 x 1.25 x 30mm, Cl 10.9

SCREW - adjusting (and locknut)

3шт.

21

K947037

SPRING

- anti-rattle, PTO lever

3шт.

22

K947058

PIVOT PIN

PIN - pivot, PTO lever

3шт.

23

K947036

WASHER

- pivot pin

6шт.

24

K947035

COTTER PIN

PIN - cotter

3шт.

25

K947060

PIN

- PTO lever pivot

3шт.

26

K947038

PIN

- cotter, pivot pin

3шт.

27

K964947

DRAG LINK

LINK - PTO, set of three

1шт.

28

K947041

PIN

- PTO pressure plate pivot

3шт.

29

K947038

PIN

- cotter, pivot pin

3шт.

30

K947089

CLUTCH & DISC ASSY

PLATE - driven, 12 inch (305 mm) PTO, Includes: facings

1шт.

K963633

FACING

S - F30C and rivets

1шт.

31

K600421

BOLT

- 3/8 UNC x 4-1/2 inch

6шт.

32

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

6шт.

33

K205591

SET

SHAFT - clutch drive

1шт.

34

K19172

BALL BEARING

BEARING - ball

1шт.

35

K623430

OIL SEAL

- oil, 45 x 65 x 8 mm

1шт.

36

K12922

RING, SNAP

RING - retaining, 1-3/4 inch (44 mm) external

2шт.

37

K623634

SEAL

RING - drive shaft sealing

1шт.

Выбрано товаров: 40
