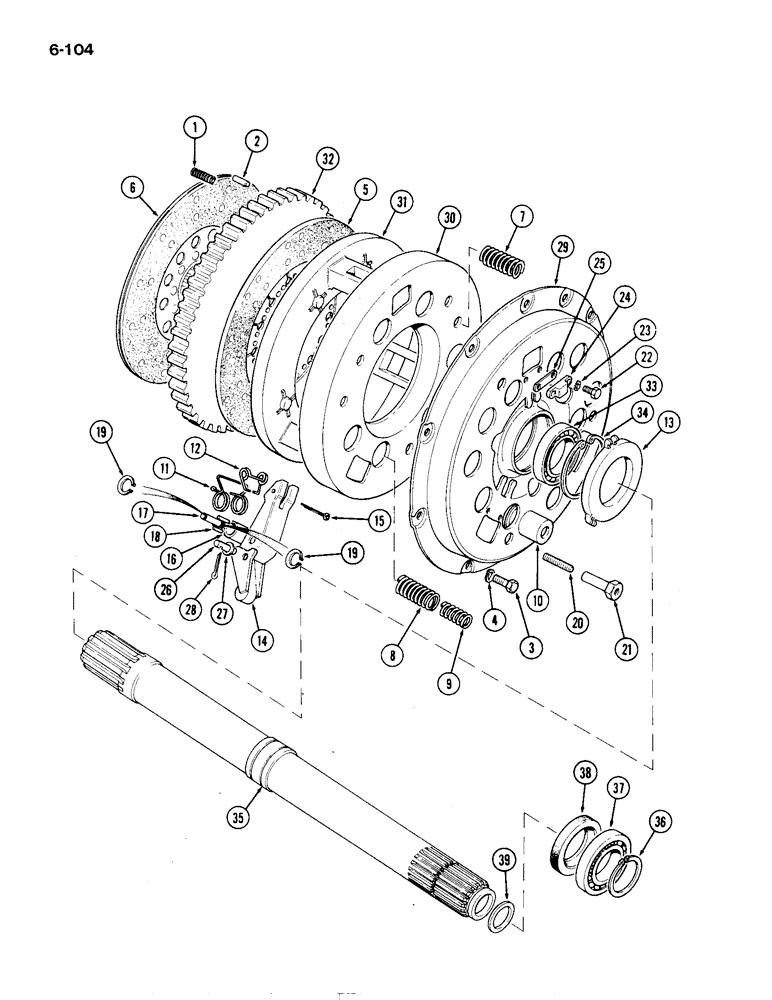

Запчасти Case IH 1194 (6-104) - CONTINUOUS CLUTCH (BORG AND BECK) (06) - POWER TRAIN

1

K13226

SPRING

- flywheel

3шт.

2

K621838

PIN

DOWEL - 5/16 x 7/16 x 1-1/8 inch

2шт.

3

K602903

SCREW

BOLT - 3/8 UNC x 7/8 inch

9шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

9шт.

5

K923374

CLUTCH DISC

PLATE - driven, transmission, with F30C facings, Includes: facings

1шт.

K961829

KIT

FACINGS - 10 inch (254 mm) F30C (2) and rivets (42)

1шт.

6

K89322

CLUTCH & DISC ASSY

PLATE - driven, PTO, with F30C facings, Includes: facings

1шт.

K961828

KIT

FACINGS - 10 inch (254 mm) F30C (2) and rivets (26)

1шт.

K918611

CLUTCH ASSEMBLY

Includes: Ref. 7 - 31

1шт.

7

K902514

SPRING

- thrust, PTO, pink

6шт.

8

K902512

SPRING

- thrust, transmission outer, brown

6шт.

9

K902513

SPRING

- thrust, transmission inner, brown

6шт.

10

K900256

SPRING

CUP - spring

12шт.

11

K961128

SPRING

- anti-rattle

3шт.

12

K900267

RETAINER

- release lever plate

3шт.

13

K900268

PLATE

- release lever

1шт.

14

K900275

LEVER

- release

3шт.

15

K900278

PIN

- cotter

3шт.

16

K900264

ROLLER

3шт.

17

K900265

PIN

- roller

3шт.

18

K900273

NEEDLE

ROLLER - needle, release lever

60шт.

19

K900274

RING, SNAP

RING - retaining

6шт.

20

K918607

SCREW

- adjusting, 5/16 inch UNF

3шт.

21

K918608

NUT

- lock, 5/16 inch UNF, special

3шт.

22

K616501

SCREW

BOLT

6шт.

23

K900279

WASHER

- lock, shakeproof, adjusting pad

6шт.

24

K900257

PAD

- adjusting, release lever

3шт.

25

K900258

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

26

K900266

PIN

- release lever

3шт.

27

K900280

WASHER

- release lever

6шт.

28

K19527

PIN

- cotter, pressure plate pin

6шт.

29

K918612

COVER

- outer

1шт.

30

K918613

COVER

- inner

1шт.

31

K900253

PLATE

- pressure

1шт.

32

K906200

DISC

PLATE - separator, Includes: Ref. 33 & 34

1шт.

33

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

BEARING - ball

1шт.

34

K89326

RING, SNAP

RING - retaining, 3-1/8 inch (79 mm) internal, ball bearing

1шт.

35

K205591

SET

SHAFT - clutch drive

1шт.

36

K12922

RING, SNAP

RING - retaining, 1-3/4 inch (44 mm) external, Includes: Ref. 37

2шт.

37

K19172

BALL BEARING

BEARING - ball, clutch driveshaft

1шт.

38

K623430

OIL SEAL

- oil, 45 x 65 x 8 mm

1шт.

39

K623634

SEAL

RING - drive shaft sealing

1шт.
