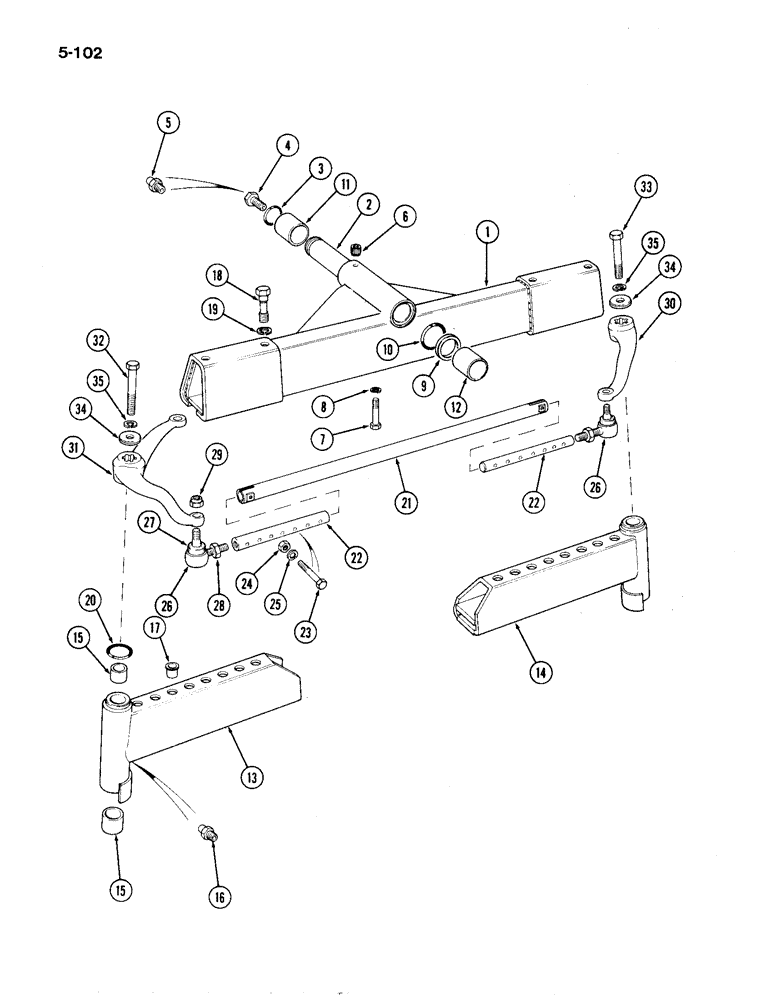

Запчасти Case IH 1194 (5-102) - FRONT AXLE BEAM (05) - STEERING

1

K956324

BEAM

- center

1шт.

2

K942480

TRUNNION

PIN - trunnion

1шт.

3

K16351

O-RING,3.53mm Thk x 24.99mm ID

- 1 inch (25 mm) internal diameter

1шт.

4

K942479

ADAPTER

- 7/16 UNC - 1/4 inch ANF

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

6

K913092

NUT

BUSHING - threaded, 3/8 inch UNC

1шт.

7

K600508

BOLT

- 3/8 UNC x 2-1/2 inch

1шт.

8

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

1шт.

9

K917440

WASHER

- thrust, 2 inch (51 mm) external

2шт.

10

K14508

O-RING,1.975" ID x 2.395" OD x 0.12"

- 15/16 inch (24 mm) internal diameter

2шт.

11

K621427

BUSHING

- front, main frame

1шт.

12

K621301

BUSHING

- rear, main frame

1шт.

13

K262167

BEAM

EXTENSION - beam, left-hand (Replaces K965872), Includes: Ref. 15

1шт.

14

K262166

BEAM

EXTENSION - beam, right-hand (Replaces K965871), Includes: Ref. 15

1шт.

15

K11598

BUSHING

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

17

K628086

PLUG,Cap, .848" OD

- plastic, 25/32 inch

12шт.

18

K601471

BOLT

- 3/4 UNC x 3-1/8 inch, special

4шт.

19

K626348

BELLEVILLE SPRING

WASHER - lock, 3/4 inch

4шт.

20

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 inch (51 mm) internal diameter

4шт.

21

K942852

DRAG LINK,25.8 mm ID x 28.875 " L

TUBE - spacer, 28-7/8 inch (733 mm)

1шт.

22

K912709

ROD

- track, 16 inch (406 mm)

2шт.

23

K600327

BOLT

- 5/16 UNC x 2-1/4 inch (grade V)

2шт.

24

K607221

NUT

- 5/16 inch UNC (grade 5)

2шт.

25

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

26

K908071

BALL JOINT

BALL SOCKET ASSEMBLY, Includes: Ref. 27 - 29

2шт.

27

K961701

BOOT

EXCLUDER - dirt (replaces K962155)

1шт.

28

K622500

LOCK NUT

- lock, 3/4 inch, special

1шт.

29

231-2448

LOCK NUT,1/2"-20, GB

NUT - self-locking, 1/2 inch UNF

1шт.

30

K942525

LEVER

- steering, right-hand

1шт.

31

K200597

LEVER

- steering left-hand

1шт.

32

K601213

BOLT

- 5/8 UNC x 3-1/4 inch

1шт.

33

K601210

BOLT (SPREADER)

BOLT - 5/8 UNC x 2-3/4 inch

1шт.

34

K15595

WASHER

- 5/8 inch (16 mm) special

2шт.

35

K19485

WASHER

- lock, 5/8 inch

2шт.
