Запчасти Case IH 1194 (5-098) - FRONT HUBS AND STUB AXLES (05) - STEERING

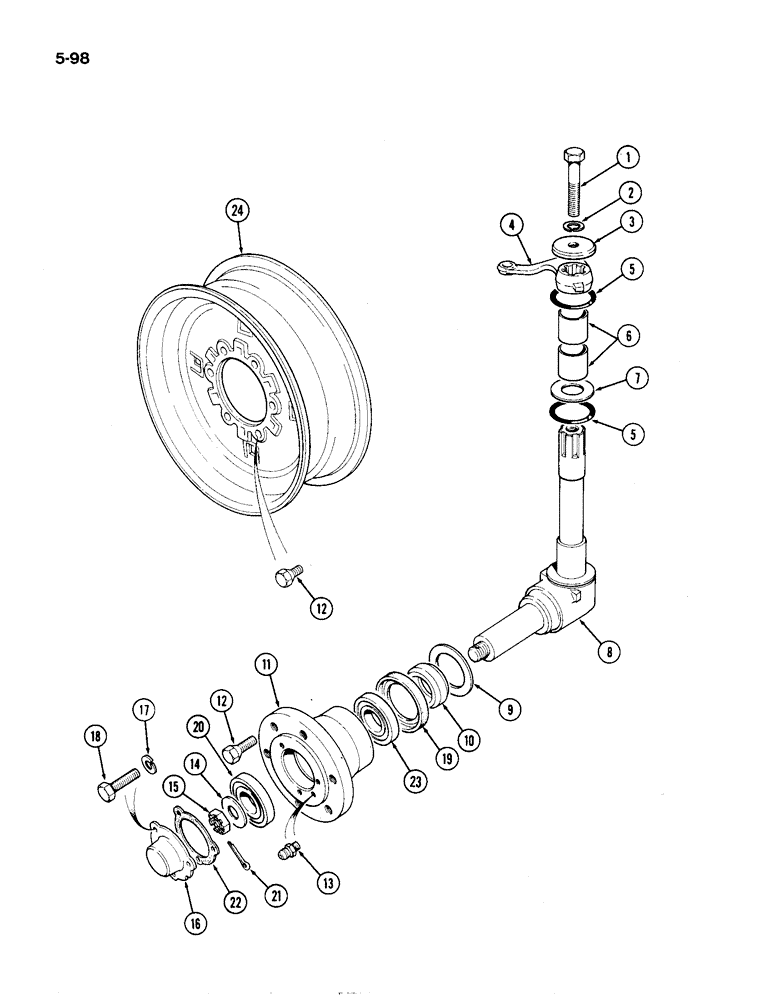

Схема запчастей Case IH 1194 - (5-098) - FRONT HUBS AND STUB AXLES (05) - STEERING
16
12
18
7
4
1
15
13
22
19
17
24
5
12
3
9
2
6
11
8
10
23
5
20
21
14

Артикул

Название

Примечание

Количество

1

K601210

BOLT (SPREADER)

BOLT - 5/8 UNC x 2-3/4 inch, right-hand lever

1шт.

1

K601213

BOLT

- 5/8 UNC x 3-1/4 inch, left-hand lever

1шт.

2

K19485

WASHER

- lock, 5/8 inch

2шт.

3

K15595

WASHER

- 5/8 inch (16 mm) special

2шт.

4

K942525

LEVER

- steering, right-hand

1шт.

4

K200597

LEVER

- steering, left-hand

1шт.

5

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 inch (51 mm) internal diameter

4шт.

6

K11598

BUSHING

- beam extension

4шт.

7

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

- thrust

2шт.

8

K963522

SHAFT

AXLE - stub (Prior to P.I.N. 11480380)

2шт.

8

K262207

STEERING KNUCKLE

AXLE ASSEMBLY - stub (P.I.N. 11480380 and after), Includes: Ref. 9 & 10

1шт.

9

K906568

RING

SEAL - dirt

1шт.

10

K906569

SLEEVE

- oil seal (Prior to P.I.N. 11480380)

1шт.

10

K207397

SLEEVE

- oil seal (P.I.N. 11480380 and after)

1шт.

11

K910176

HUB

- front

2шт.

12

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

BOLT - wheel, 1/2 UNC x 1 inch

12шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

14

K626673

WASHER

- 3/4 inch (19 mm) special

2шт.

15

K617157

NUT

- slotted, 3/4 inch, special

2шт.

16

K908913

CAP

- hub

2шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

6шт.

18

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- 5/16 inch UNCH x 5/8 inch

6шт.

K962985

BEARING ASSY

BEARING AND SEAL KIT - axle (Prior to P.I.N. 11480380), Includes: Ref. 19 - 23

2шт.

19

K623450

OIL SEAL

- oil, 2-1/8 x 3 x 1/2 inch (54 x 76 x 13 mm)

1шт.

20

K620046

BEARING

- roller, tapered, outer

2шт.

21

K623603

PIN

- cotter, 5/32 x 1-1/8 inch

1шт.

22

K15344

GASKET,0.25mm Thk

- hub cap

1шт.

23

K620046

BEARING

- roller, tapered, inner (Prior to P.I.N. 11480380)

1шт.

K262214

KIT

BEARING AND SEAL KIT - axle (P.I.N. 11480380 and after), Includes: Ref. 19 - 23

2шт.

19

K623450

OIL SEAL

- oil, 2-1/8 x 3 x 1/2 inch (54 x 76 x 13 mm)

1шт.

20

K620046

BEARING

- roller, tapered

2шт.

21

K623603

PIN

- cotter, 5/32 x 1-1/8 inch

1шт.

22

K15344

GASKET,0.25mm Thk

- hub cap

1шт.

23

K620167

BEARING

- roller, tapered, inner (P.I.N. 11480380 and after)

1шт.

24

K947941

WHEEL

- front, 5.50F x 16, fits 7.50 x 16, tires

2шт.

24

K947937

WHEEL

- front, 4.50F x 16, fits 6.00 x 16 tires

2шт.
