Запчасти Case IH 1194 (5-092) - TUBES AND FITTINGS, POWER STEERING, TRACTORS WITH CAB (05) - STEERING

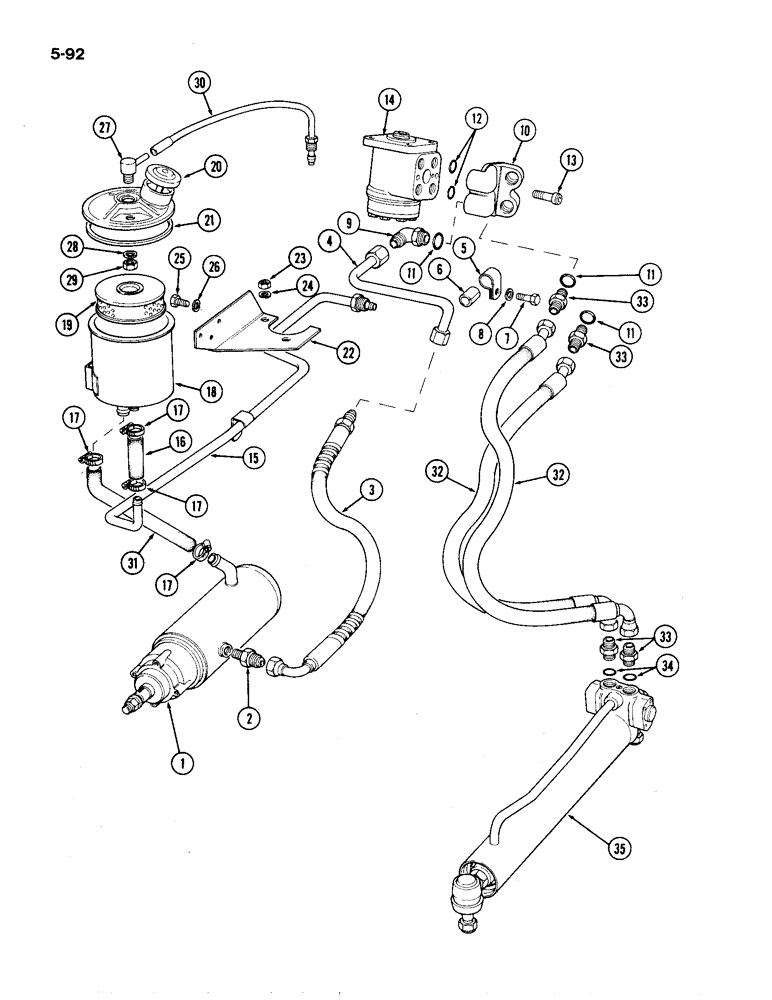

Схема запчастей Case IH 1194 - (5-092) - TUBES AND FITTINGS, POWER STEERING, TRACTORS WITH CAB (05) - STEERING
18
23
17
21
25
30
22
9
33
27
11
6
5
12
4
1
35
13
31
34
19
8
32
20
3
29
33
32
16
11
28
15
10
17
11
33
17
26
14
17
7
2
24

Артикул

Название

Примечание

Количество

1

K207418

PUMP

ASSEMBLY - steering, See Figure 5-94

1шт.

2

K626087

FITTING

ADAPTER - 1/2 x 3/4 inch UNF

1шт.

3

K203930

HOSE

TUBE - flexible, 3/4 UNF x 17 inch

1шт.

4

K207449

PIPE

TUBE - steering valve inlet

1шт.

5

K621717

CLIP

- tube

1шт.

6

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon

1шт.

7

K650341

SCREW

- M8 x 16 mm

1шт.

8

K651828

SPRING

WASHER - lock, 8 mm

1шт.

9

K622114

FITTING

ELBOW - 3/4 inch UNF

1шт.

10

K207388

BLOCK

- valve connections

1шт.

11

K15028

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- 3/4 inch (19 mm) internal diameter

3шт.

12

K623591

O-RING

- 5/8 inch (16 mm) internal diameter

4шт.

13

K653941

HEX SOC SCREW,M10 x 1 x 30mm, Cl 12.9

- M10 x 30 mm

2шт.

14

REF

INSTRUCTION

VALVE - steering, See Figure 5-90

1шт.

15

K207450

PIPE

TUBE - steering valve outlet

1шт.

16

K204377

HOSE

- 1/2 x 2-1/8 inch (13 x 54 mm)

1шт.

17

K622024

CLAMP

CLIP - hose, 3/4 inch (19 mm)

4шт.

18

K203699

RESERVOIR

ASSEMBLY, Includes: Ref. 19 - 21

1шт.

19

K964924

FILTER

ELEMENT - filter

1шт.

20

K260852

CAP

- oil filler

1шт.

21

K960725

GASKET

- cover

1шт.

22

K304396

BRACKET

- reservoir support

1шт.

23

280136

NUT,3/8"-16, G8

2шт.

24

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

25

K612731

SCREW

BOLT - 1/4 UNF x 1/2 inch

3шт.

26

K19480

SPRING WASHER

- lock, 1/4 inch

3шт.

27

K203877

BREATHER

ELBOW - 1/2 inch UNF

1шт.

28

K15735

WASHER

- 1/2 inch (13 mm)

1шт.

29

K616984

NUT

- 1/2 inch UNF

1шт.

30

K204721

TUBE - breather

1шт.

PER CAT# 8-2182 P/N S/B K204271. P/N K204721 COMES UP AS INVALID. DLR 2261433-C (GREG THE SERVICE MGR) CALLED IN ON 6/15/95 TO CHECK. JOHN BEDFORD.

1шт.

31

K205949

HOSE,0.63" ID x 9.75", SAE J14 Class SC

- Reservoir to pump 0.63" ID x 9.75", SAE J14 Class SC

1шт.

32

K207448

HOSE

TUBE - flexible

2шт.

33

K626039

FITTING

UNION - 3/4 inch UNF

4шт.

34

K623591

O-RING

- 3/4 inch (19 mm) internal diameter

2шт.

35

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, See Figure 5-96

1шт.

Выбрано товаров: 36
