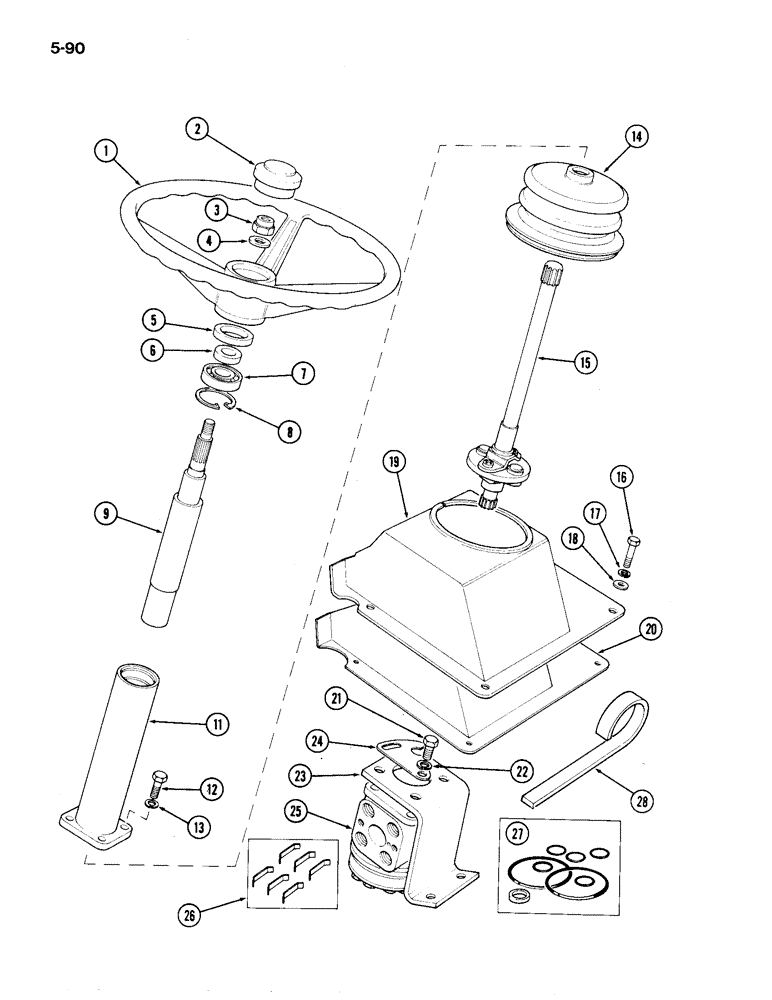

Запчасти Case IH 1194 (5-090) - STEERING COLUMN AND VALVE, TRACTORS WITH CAB (05) - STEERING

1

K949446

HANDWHEEL

WHEEL - steering

1шт.

2

K952274

CAP

- wheel

1шт.

3

K607304

NUT

- self-locking, 1/2 inch UNC

1шт.

4

K626686

WASHER

- 1/2 inch (13 mm)

1шт.

5

K623479

WASHER

- felt, 1/2 inch (13 mm)

1шт.

6

K627103

BUSHING

SPACER - bearing

1шт.

7

K620192

BALL

BEARING - ball

1шт.

8

11911

BATTERY

RING - snap, 1-5/8 inch (41 mm) internal

2шт.

9

K307289

SHAFT

- steering wheel

1шт.

11

K307276

FLANGE

COLUMN - steering

1шт.

12

K650659

BOLT

- M10 x 22 mm

4шт.

13

K651849

WASHER

- lock, 10 mm

4шт.

14

K307333

BELLOWS

COVER - coupling

1шт.

15

K307319

BREAKER POINTS

COUPLING AND SPINDLE

1шт.

16

K650814

BOLT

- M6 x 30 mm

4шт.

17

K651847

WASHER, LOCK

WASHER - lock, 6 mm

4шт.

18

K651903

WASHER

- special, 6 mm

3шт.

19

K307856

COVER

- insulating

1шт.

20

K307661

COVER

- steering valve

1шт.

21

K602903

SCREW

BOLT - 3/8 UNC x 7/8 inch

6шт.

22

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

6шт.

23

K307686

SUPPORT

BRACKET - steering valve

1шт.

24

K307274

WASHER

PLATE - retaining

1шт.

25

K207419

VALVE

ASSEMBLY - steering, Orbitrol OSPC-125-ON, Includes: Ref. 26 & 27

1шт.

26

K964157

SPRING

- centering, set of six

1шт.

27

K962387

GASKET KIT

KIT - seals, steering valve

1шт.

28

K777030

FOAM

STRIP - sealing, 15 x 8 mm (order in metres)

1шт.
