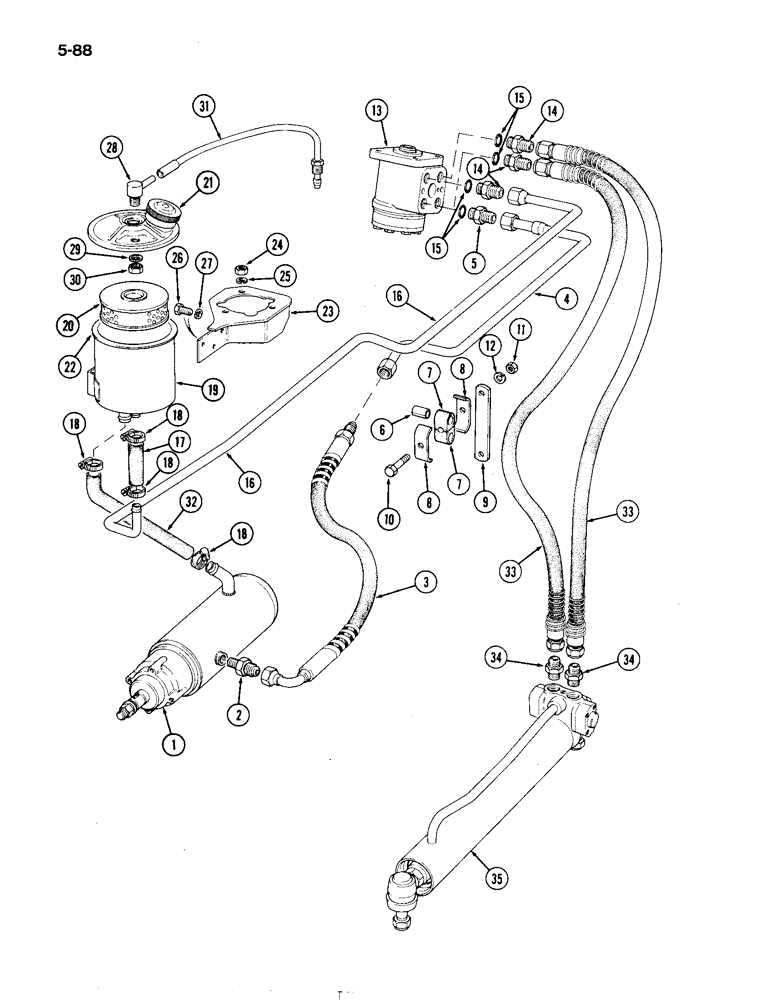

Запчасти Case IH 1194 (5-088) - TUBES AND FITTINGS, POWER STEERING, TRACTORS WITHOUT CAB (05) - STEERING

1

K207418

PUMP

ASSEMBLY - steering, See Figure 5-94

1шт.

2

K626087

FITTING

ADAPTER - 1/2 x 3/4 inch UNF

1шт.

3

K203929

HOSE

TUBE - flexible, 3/4 UNF x 10 inch

1шт.

4

K309472

PIPE

TUBE - steering, valve inlet

1шт.

5

K626039

FITTING

UNION - 3/4 inch UNF

1шт.

6

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon

2шт.

7

K951993

SLEEVE

BLOCK - rubber

2шт.

8

K951982

SHIM

CLAMP - tube

2шт.

9

K304025

BRACKET

- tube clamp

1шт.

10

K600476

BOLT

- 3/8 UNC x 1-3/4 inch

1шт.

11

280136

NUT,3/8"-16, G8

1шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

1шт.

13

REF

INSTRUCTION

VALVE - steering, See Figure 5-86

1шт.

14

K626039

FITTING

UNION - 3/4 inch UNF

3шт.

15

K623591

O-RING

- 5/8 inch (16 mm) internal diameter

4шт.

16

K205025

PIPE,0.5" OD

TUBE - return (vertical exhaust)

1шт.

16

K206035

PIPE,0.5" OD

TUBE - return (downswept exhaust)

1шт.

17

K204377

HOSE

- 1/2 x 2-1/8 inch (13 x 54 mm)

1шт.

18

K622024

CLAMP

CLIP - hose, 3/4 inch (19 mm)

4шт.

19

K203699

RESERVOIR

ASSEMBLY, Includes: Ref. 20 - 22

1шт.

20

K964924

FILTER

ELEMENT - filter

1шт.

21

K260852

CAP

- oil filler

1шт.

22

K960725

GASKET

- cover

1шт.

23

K304396

BRACKET

- reservoir (vertical exhaust)

1шт.

23

K304692

BRACKET

- reservoir (downswept exhaust)

1шт.

24

280136

NUT,3/8"-16, G8

2шт.

25

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

26

K612731

SCREW

BOLT - 1/4 UNF x 1/2 inch

3шт.

27

K19480

SPRING WASHER

- lock, 1/4 inch

3шт.

28

K203877

BREATHER

ELBOW - 1/2 inch UNF

1шт.

29

K15735

WASHER

- 1/2 inch (13 mm) special

1шт.

30

K616984

NUT

- 1/2 inch UNF

1шт.

31

K204271

PIPE

TUBE - breather

1шт.

32

K205949

HOSE,0.63" ID x 9.75", SAE J14 Class SC

- Reservoir to pump (Vertical exhaust) 0.63" ID x 9.75", SAE J14 Class SC

1шт.

32

K206047

HOSE

- reservoir to pump (downswept exhaust)

1шт.

33

K945756

HOSE

TUBE - flexible, 3/4 UNF x 32 inch

2шт.

34

K626039

FITTING

UNION - 3/4 inch UNF

2шт.

35

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-97)

1шт.
