Запчасти Case IH 1194 (5-086) - STEERING COLUMN, POWER STEERING, TRACTORS WITHOUT CAB (05) - STEERING

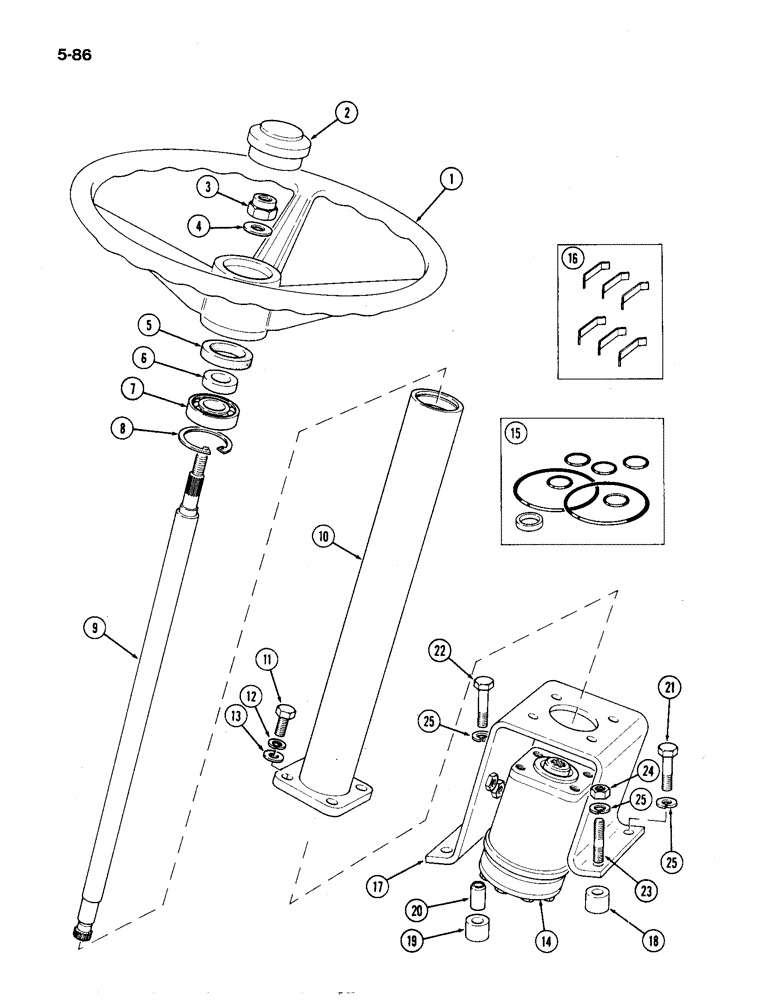

Схема запчастей Case IH 1194 - (5-086) - STEERING COLUMN, POWER STEERING, TRACTORS WITHOUT CAB (05) - STEERING
18
8
6
14
13
1
4
16
10
25
19
24
20
9
23
25
11
15
2
25
3
5
21
17
7
12
22

Артикул

Название

Примечание

Количество

1

K949446

HANDWHEEL

WHEEL - steering

1шт.

2

K952274

CAP

- hub

1шт.

3

K607304

NUT

- self-locking, 1/2 inch UNC

1шт.

4

K626686

WASHER

- 1/2 inch (13 mm)

1шт.

5

K623479

WASHER

- felt, 1/2 inch (13 mm) internal diameter

1шт.

6

K627103

BUSHING

SPACER

1шт.

7

K620192

BALL

BEARING - ball

1шт.

8

K11911

RING, SNAP

RING - retaining, 1-5/8 inch (41 mm) internal

2шт.

9

K201585

SHAFT

- 14-1/4 inch (362 mm)

1шт.

10

K201581

FLANGE

COLUMN - steering

1шт.

11

K600406

BOLT

- 3/8 Unc x 1-3/4 inch

4шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

13

K19472

WASHER

- 3/8 inch (10 mm)

4шт.

14

K207419

VALVE

- steering, Orbitrol OSPC-125-ON, Includes: Ref. 15 & 16

1шт.

15

K962387

GASKET KIT

KIT - seals

1шт.

16

K964157

SPRING

- centering, set of six

1шт.

17

K201587

BRACKET

- steering column

1шт.

18

K201515

BUSHING

SPACER

3шт.

19

K200813

BUSHING

SPACER

1шт.

20

K622042

RING

DOWEL - ring, 17/32 inch diameter x 1-1/8 inch

1шт.

21

K600476

BOLT

- 3/8 UNC x 1-3/4 inch

1шт.

22

K600563

BOLT

- 3/8 UNC x 2-1/4 inch

1шт.

23

K608215

STUD

- 3/8 UNC x 2-1/4 inch

2шт.

24

280136

NUT,3/8"-16, G8

2шт.

25

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

Выбрано товаров: 25
