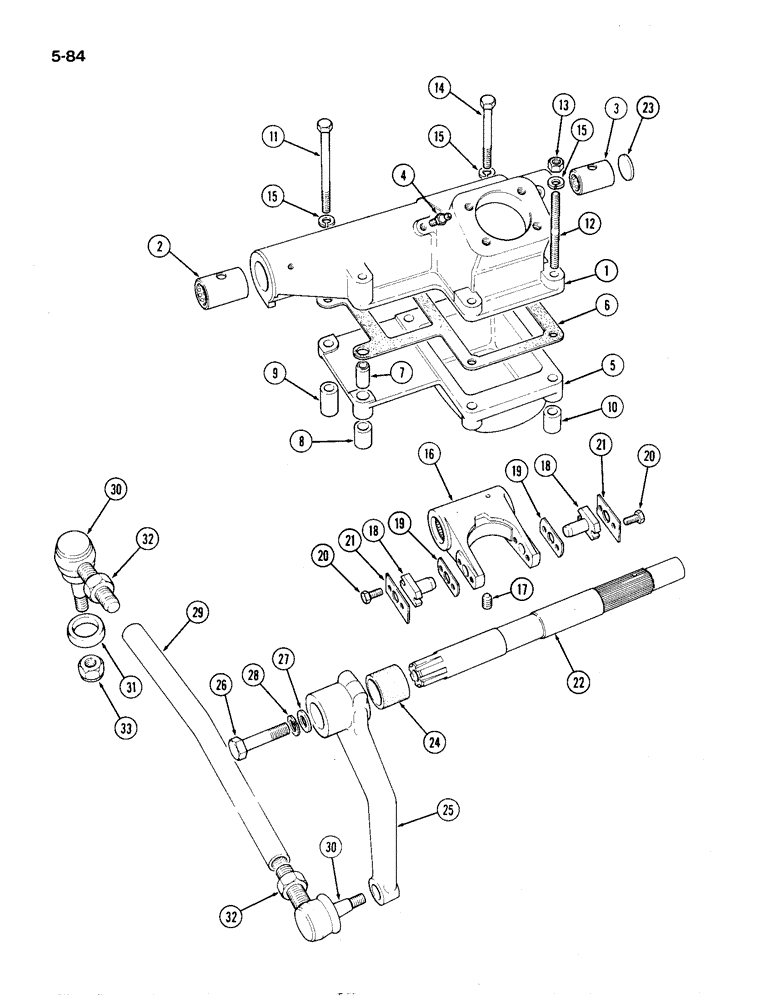

Запчасти Case IH 1194 (5-084) - STEERING BOX, TRACTORS WITH MANUAL STEERING, (NOT NORTH AMERICA) (05) - STEERING

1

K962511

HOUSING

BOX - steering, Includes: Ref. 2 & 3

1шт.

2

K621301

BUSHING

- long

2шт.

3

K621300

BUSHING

- short

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

3шт.

5

K200282

SUMP

- steering box

1шт.

6

K89395

GASKET

- sump

1шт.

7

K622042

RING

DOWEL - ring, 17/32 inch diameter x 1-1/8 inch

4шт.

8

K200813

BUSHING

SPACER - 7/8 inch (22 mm)

2шт.

9

K200815

BUSHING

SPACER - 1-7/16 inch (36 mm)

1шт.

10

K201515

BUSHING

SPACER - 7/8 inch (22 mm)

3шт.

11

K600512

BOLT

- 3/8 UNC x 4-1/2 inch

2шт.

12

K608241

STUD

- 3/8 UNC x 4-1/8 inch

2шт.

13

280136

NUT,3/8"-16, G8

2шт.

14

K600418

BOLT

- 3/8 UNC x 3-1/2 inch

2шт.

15

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

6шт.

16

K943909

LEVER

ARM - rocker

1шт.

17

K606406

SCREW

- 3/8 inch UNC

1шт.

18

K912108

BALL

PEG - ball

2шт.

19

K900945

GASKET

SHIM - 0.003 inch (0.08 mm)

1шт.

19

K900946

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

19

K900947

GASKET

SHIM - 0.007 inch (0.18 mm)

1шт.

19

K900948

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

20

K602702

SCREW

BOLT - 1/4 UNC x 5/8 inch

4шт.

21

K912109

WASHER

- tab

2шт.

22

K943910

SHAFT

- drop arm

1шт.

23

K10050

PLUG

- core, 1-1/4 inch (31 mm)

1шт.

24

K86963

LARGE HOSE

SHIELD - dust

1шт.

25

K200716

ARM

- drop

1шт.

26

K600808

BOLT

- 1/2 UNC x 2-1/4 inch

1шт.

27

K910646

WASHER

- 1/2 inch (13 mm) special

1шт.

28

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

1шт.

K204378

LINK

DRAG LINK ASSEMBLY, Includes: Ref. 29 - 33

1шт.

29

K204379

LINK

TUBE - drag link

1шт.

30

K207722

BALL JOINT

BALL SOCKET ASSEMBLY, Includes: Ref. 31 - 33

2шт.

31

K962155

CAP

COVER - rubber

1шт.

32

K622500

LOCK NUT

- lock, 3/4 inch, special

1шт.

33

131-377

LOCK NUT,5/8"-11, GC

NUT - self-locking, 1/2 inch UNF

1шт.
