Запчасти Case IH 1194 (5-082) - STEERING COLUMN, MANUAL STEERING, (NOT NORTH AMERICA) (05) - STEERING

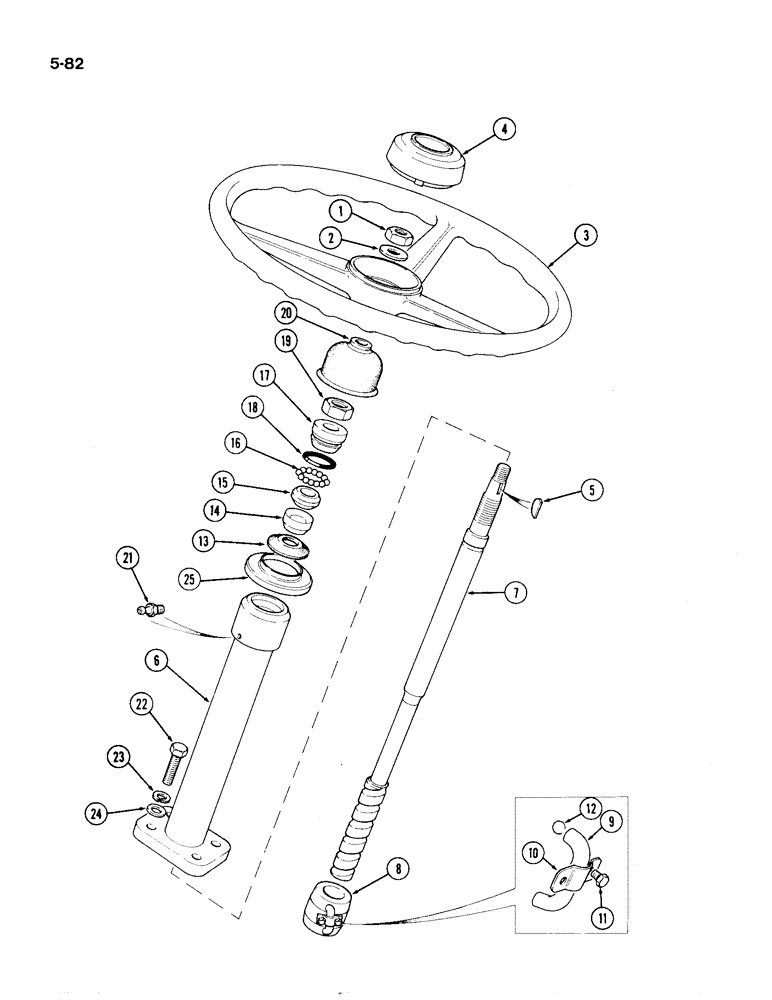

Схема запчастей Case IH 1194 - (5-082) - STEERING COLUMN, MANUAL STEERING, (NOT NORTH AMERICA) (05) - STEERING
23
7
20
3
12
17
25
2
13
22
10
4
8
21
6
11
19
18
14
5
16
1
9
24
15

Артикул

Название

Примечание

Количество

1

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8 inch UNC

1шт.

2

K626671

WASHER

- 5/8 inch (16 mm) special

1шт.

3

K956407

SCREW

WHEEL - steering

1шт.

4

K300074

COVER

CAP - hub

1шт.

5

K19608

KEY

- Woodruff, No. 606

1шт.

K956632

STEERING COLUMN

COLUMN ASSEMBLY - steering, Includes: Ref. 6 - 21

1шт.

6

K200714

SUPPORT

COLUMN - steering

1шт.

7

K956633

SCREW

AND NUT - steering, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - steering

1шт.

9

K960990

TUBE NUT

TUBE - transfer, halves

2шт.

10

K960991

RETAINER

CLIP - transfer tubes

1шт.

11

K960992

BOLT

- 1/4 inch UNF, special

2шт.

12

K11286

BALL

- steel, 5/16 inch (8 mm)

28шт.

13

K903469

PAD, RUBBER

BAFFLE - rubber

1шт.

14

K903461

SPACER

SEAT - spherical

1шт.

15

K903462

SPHERICAL BEARING

BEARING - lower

1шт.

16

K13506

BALL

- steel, 3.8 inch (10 mm)

12шт.

17

D903463

CONE - adjustable bearing

1шт.

18

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

- 1-1/4 inch (31 mm) internal diameter

1шт.

19

K924967

NUT

- lock

1шт.

20

K923681

SEAL

EXCLUDER - dirt

1шт.

21

K690792

FITTING

- grease, 1/4 inch UNF

1шт.

22

K600604

SCREW

BOLT - 7/16 UNC x 1-3/4 inch

4шт.

23

K19483

SPRING WASHER

- lock, 7/16 inch

4шт.

24

K19473

WASHER

- 7/16 inch (11 mm)

4шт.

25

K304378

COVER

- instrument panel

1шт.

Выбрано товаров: 26
