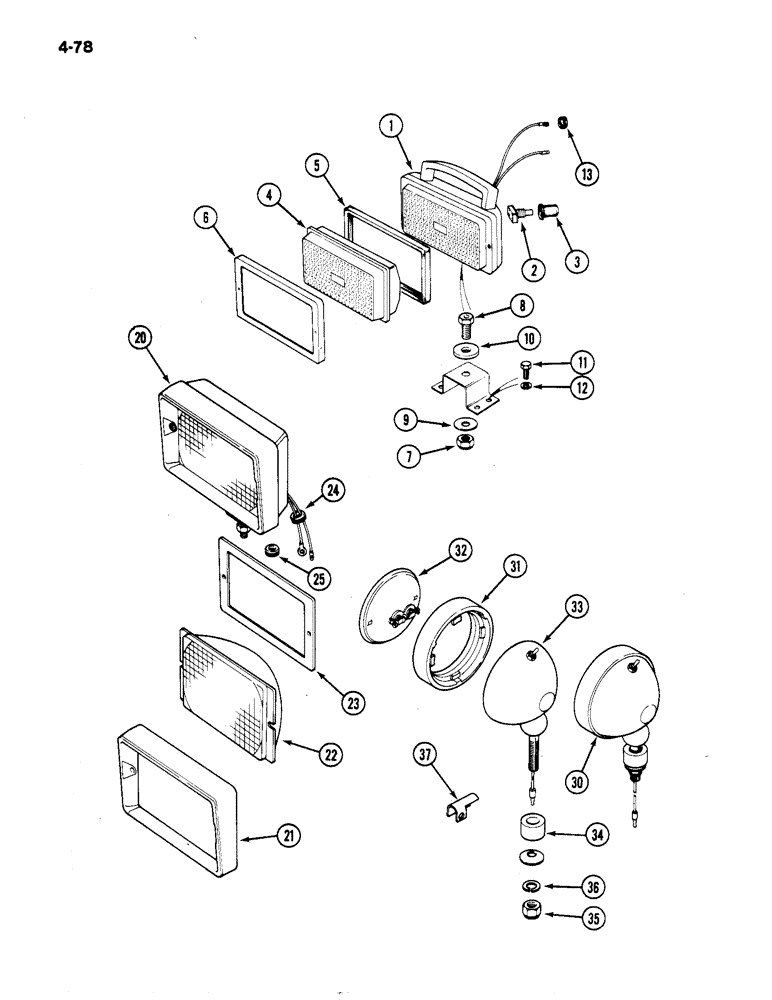

Запчасти Case IH 1194 (4-78) - REAR FLOOD LAMP (04) - ELECTRICAL SYSTEMS

1

K302866

LAMP

FLOOD LAMP ASSEMBLY - rar (with switch), Includes: Ref. 2 - 10 and bulb

1шт.

2

K260688

SWITCH ASSY

SWITCH - lamp

1шт.

3

K260689

SWITCH

COVER - switch

1шт.

4

K260687

LENS

AND REFLECTOR - lamp

1шт.

5

K260693

LENS

GASKET - lens

1шт.

6

K260694

LAMP

RIM - lens

1шт.

7

K260696

NUT

- self-locking, M12

1шт.

8

K260695

BOLT

- M12, special

1шт.

9

K260691

WASHER

- 12 mm

1шт.

10

K260690

WASHER

- nylon, 12 mm

1шт.

K301288

BULB

- (North America only) 12 Volt, 55 watt Bulb with one element.

1шт.

11

K650641

SCREW

BOLT - M8 x 16 mm

4шт.

12

K651848

WASHER

- lock, 8 mm

1шт.

13

K627705

GROMMET

- wire

1шт.

20

K310586

LAMP

FLOOD LAMP ASSEMBLY - rear (without switch), Includes: Ref. 21 - 23

1шт.

21

K262221

BEZEL

RIMS - lens

1шт.

22

K262222

LENS

AND REFLECTOR - lamp (only a lens. to get the reflector, order complete asm.)

1шт.

23

K262223

SEAL

GASKET - lens sealing

1шт.

24

K627770

GROMMET

- rubber, fender

1шт.

25

K656757

PLUG

GROMMET - rubber, fender

2шт.

A177645

LAMP

FLOOD LAMP ATTACHMENT, Includes: Ref. 30 - 37

1шт.

30

A151886

LAMP

ASSEMBLY - flood, right rear flood lamp low profile special, Includes: Ref. 31 - 36

1шт.

31

A25213

RETAINER

- lamp, right rear flood lamp low profile special

1шт.

32

A42294

SEALED BEAM UNIT

LAMP - seal beam (no. 4406), right rear flood lamp low profile special

1шт.

33

A47700

SWITCH ASSY

SWITCH - toggle, right rear flood lamp low profile special

1шт.

34

D37048

BUSHING

- lamp, right rear flood lamp low profile special

1шт.

35

129-165

JAM NUT,Jam, 1/2"-20, G5

Right rear flood lamp low profile special Jam, 1/2"-20, G5

1шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Right rear flood lamp low profile special 1/2"

1шт.

37

A177595

CLIP, WIRE

CLIP - wire shield, right rear flood lamp low profile special

1шт.
