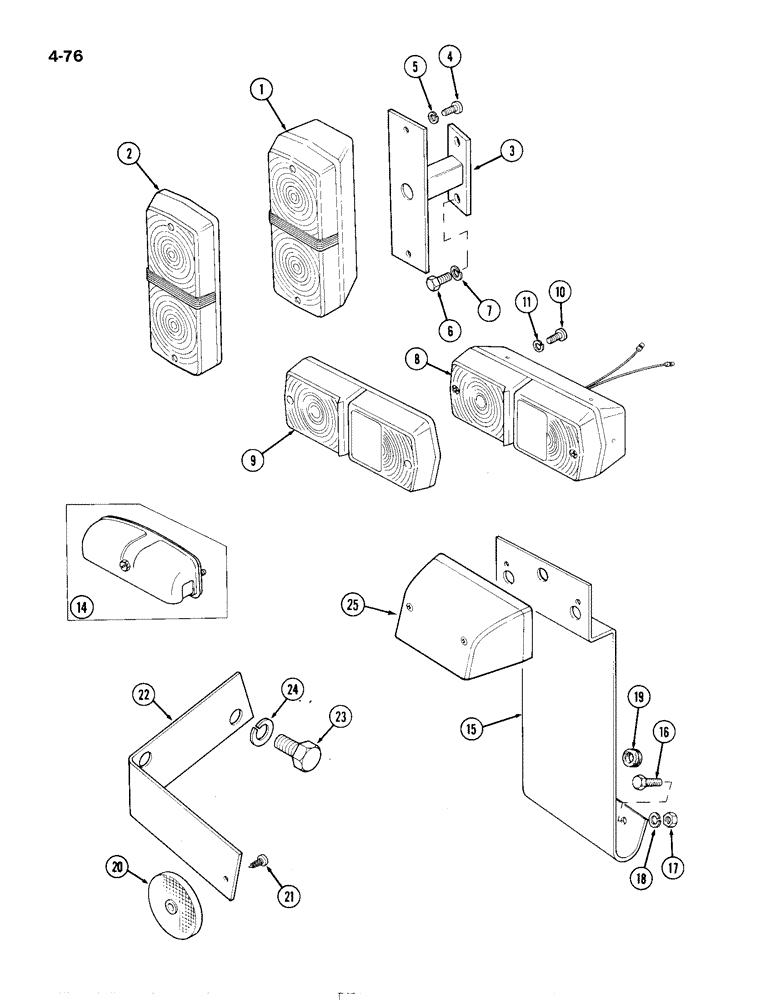

Запчасти Case IH 1194 (4-76) - SIDE AND REAR WARNING LAMPS, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

1

K304892

LIGHT

LAMP ASSEMBLY - left-hand front, side flasher, Includes: Ref. 2

1шт.

2

K261792

LENS

- lamp

1шт.

1

K304891

LIGHT

LAMP ASSEMBLY - right-hand front, side flasher, Includes: Ref. 2

1шт.

2

K261792

LENS

- lamp

1шт.

3

K306555

SUPPORT

BRACKET - front lamp, short

2шт.

3

K308005

SUPPORT

BRACKET - front lamp, long

2шт.

4

K613146

SCREW

- 1/4 UNF x 1/2 inch

4шт.

5

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

4шт.

6

K653350

SCREW

- M8 x 16 mm

4шт.

7

K651934

SPRING

WASHER - lock, 8 mm

4шт.

8

K304886

LIGHT ASSY.

LAMP ASSEMBLY - stop, flasher, rear, left-hand, Includes: Ref. 9

1шт.

9

K261791

LENS

- lamp

1шт.

8

K304885

LIGHT ASSY.

LAMP ASSEMBLY - stop, flasher, rear, right-hand, Includes: Ref. 9

1шт.

9

K261791

LENS

ASSEMBLY - stop, flasher, rear, right-hand

1шт.

9

K261791

LENS

- lamp

1шт.

10

K613148

SCREW

- M5 x 12 mm

4шт.

11

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

14

K207036

LIGHT ASSY.

LAMP - rear number plate

1шт.

15

K302275

BRACKET

- support

1шт.

16

K650627

BOLT,M6 x 16mm

- M6 x 16 mm

2шт.

17

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

18

K651847

WASHER, LOCK

WASHER - lock, 6 mm

2шт.

19

K627754

GROMMET

- 14 mm

1шт.

20

K302778

REFLECTOR

- red

2шт.

21

K624797

SCREW

- self-tapping, No. 6 x 1/2 inch

2шт.

22

K303986

BRACKET

- reflector

2шт.

23

K603104

SCREW

- 1/2 UNC x 1 inch

4шт.

24

K626345

LOCK WASHER

WASHER - 1/2 inch

4шт.

25

K311864

INTERIOR LIGHT

LAMP - rear number plate, with harness (Replaces K207036)

1шт.

26

K651831

WASHER - special, plain (Use with K311864)

2шт.
