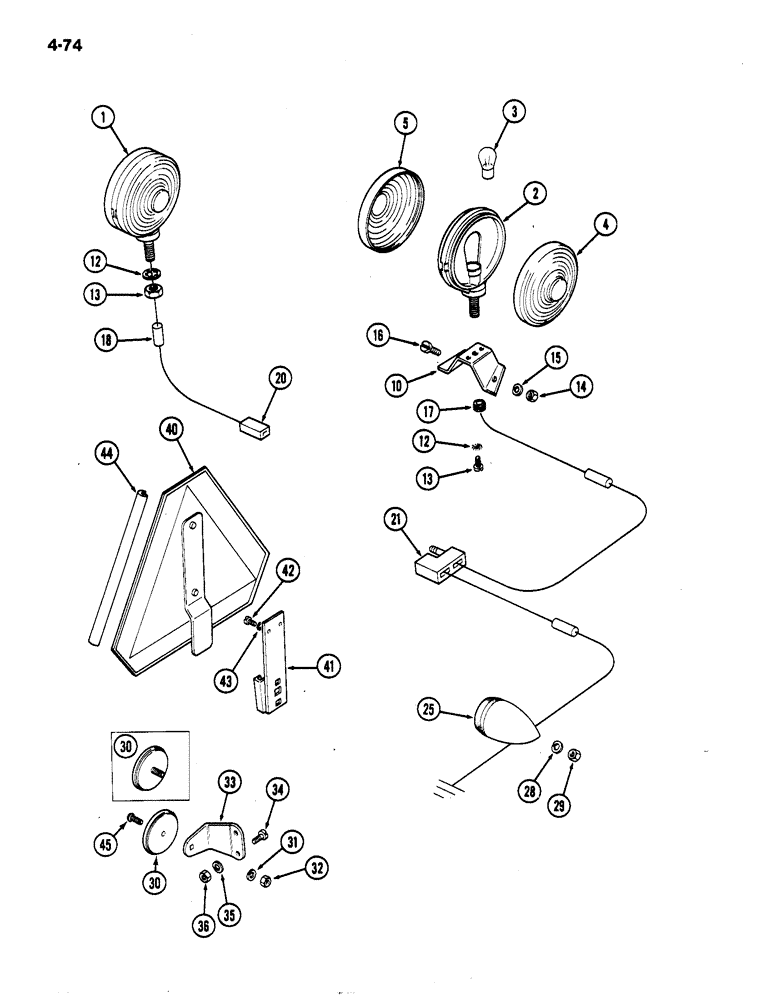

Запчасти Case IH 1194 (4-74) - LAMPS, WIRING AND REFLECTORS, LOW PROFILE SPECIAL (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
K309425
LAMP
ASSEMBLY - flasher, LH and RH rear fender, Includes: Ref. 2 - 5
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - lamp
1шт.
3
BULB - lamp (12 volt/21 watt, double contact)
1шт.
Ref #3 - A41264 #1156 Single Contact, Single Element Bulb
1шт.
Ref #3A - K310118 #1076 Double Contact, Single Element Bulb
1шт.
4
K262141
LENS
- front, amber
1шт.
5
K262142
LENS
- rear, amber
1шт.
10
K309426
BRACKET
- mounting, flasher lamp
2шт.
12
K626480
WASHER
- lock, 1/2 inch
2шт.
13
K617033
NUT
- 1/2 INCH UNF
2шт.
14
129-17
NUT,Hex, #10 - 24
NUT - hex, No. 10
4шт.
15
192-107
LOCK WASHER,#10
WASHER - lock, No. 10
4шт.
16
182-125
SCREW,Sl Pan Hd, #10 - 24 x 1/2"
- pan head slotted machine, No. 10 NC x 1/2 inch
4шт.
17
A141389
GROMMET
- wire
4шт.
18
A30366
CABLE
CONNECTOR - wire (Female)
2шт.
20
K308554
HARNESS
ASSEMBLY - flasher, RH
1шт.
21
K308553
HARNESS
ASSEMBLY - flasher, LH and tail lamp
1шт.
25
K921235
LAMP
ASSEMBLY - tail, Includes: bulb and lens
1шт.
K924018
BULB
- lamp (12/14 volt 6 watt)
1шт.
K960888
LENS
- lamp (Red)
1шт.
28
192-109
LOCK WASHER,1/4"
WASHER - lock, 1/4 inch
2шт.
29
129-121
NUT,1/4"-28, G5
2шт.
30
K302778
REFLECTOR
ASSEMBLY - rear (Red) (Replaces K951642), Includes: Ref. 31 & 32
2шт.
31
K626340
RING
WASHER - lock, 3/16 inch
1шт.
32
K617080
NUT
- No. 10 UNF
1шт.
33
K943024
BRACKET
- mounting, reflector
2шт.
34
182-125
SCREW,Sl Pan Hd, #10 - 24 x 1/2"
- pan head slotted machine, No. 10 NC x 1/2 inch
4шт.
35
192-107
LOCK WASHER,#10
WASHER - lock, 3/16 inch
4шт.
36
129-17
NUT,Hex, #10 - 24
NUT - hex, No. 10 NC
4шт.
40
A59450
WARNING SIGN
EMBLEM - SMV
1шт.
41
A162667
BRACKET
- SMV mounting
1шт.
42
K655644
BOLT
- M8 x 20 mm
2шт.
43
K651848
WASHER
- lock, 8 mm
2шт.
44
K311878
GASKET
TRIM - emblem (Replaces A165860)
1шт.
45
86625206
SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"
- No. 10-32 UNF x 1/2 inch (Use with K302778)
2шт.
Выбрано товаров: 35
