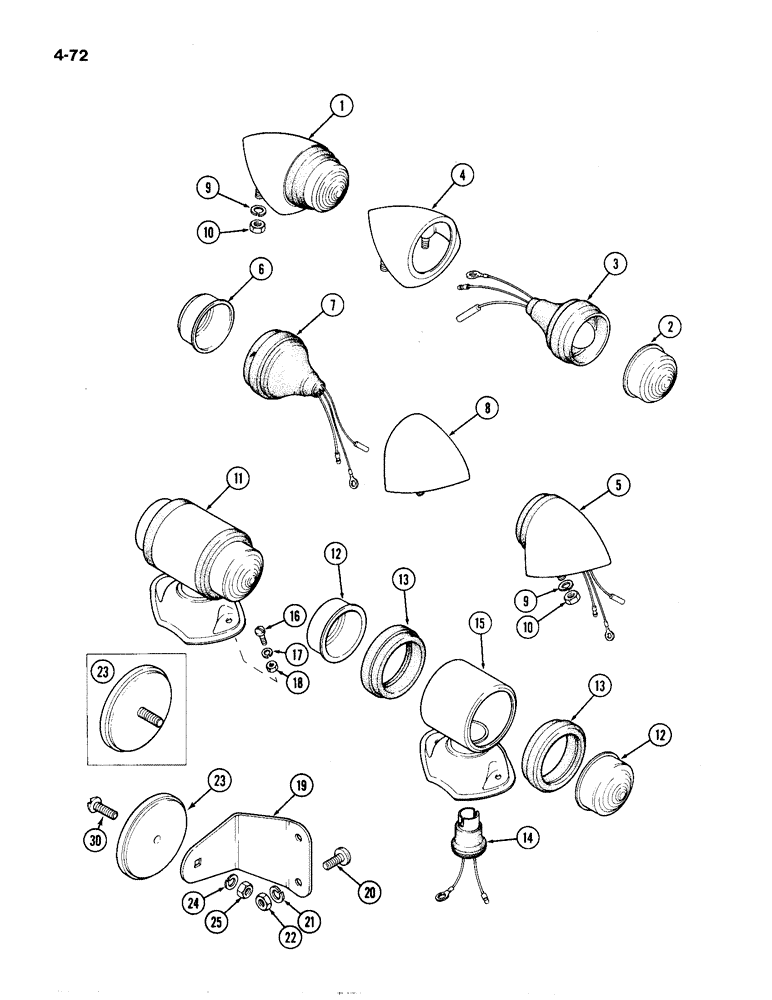

Запчасти Case IH 1194 (4-72) - SIDE AND REAR WARNING LAMPS, TRACTORS WITHOUT CAB, ORCHARD FENDERS (04) - ELECTRICAL SYSTEMS

1

K921236

INDICATOR LIGHT

LAMP ASSEMBLY - left-hand front, Includes: Ref. 2 - 4

1шт.

1

K921234

INDICATOR LIGHT

LAMP ASSEMBLY - right-hand front, Includes: Ref. 2 - 4

1шт.

REF ITEM#1- P/NS K921236 OR K921234; BULB P/N IS K924018. THIS P/N NOW SUBS TO 1094369R1. JBEDFORD 7/21/99.

1шт.

2

K960887

LENS

- clear

1шт.

3

K962195

SPARE PART SET

MOUNT - bulb, rubber

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

5

K308829

LAMP

ASSEMBLY - left-hand rear, Includes: Ref. 6 - 8

1шт.

5

K308830

LAMP

ASSEMBLY - right-hand rear, Includes: Ref. 6 - 8

1шт.

6

K262154

LENS

- red

1шт.

7

K262154

LENS

- red

1шт.

7

K262155

BULB

MOUNT - bulb holder

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

9

K19481

SPRING WASHER

WASHER - lock, 1/4 inch

8шт.

10

K616980

NUT

- 1/4 inch UNF

8шт.

11

K207987

LAMP

ASSEMBLY - direction indicator, Includes: Ref. 12 - 15

2шт.

12

K262156

LENS

- amber

2шт.

13

K960889

MOUNTING PARTS

MOUNT - lens, rubber

2шт.

14

K962195

SPARE PART SET

HOLDER - bulb

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

16

K615404

SCREW

- No. 10 UNF x 1/2 inch

4шт.

17

K626340

RING

WASHER - lock, 3/16 inch

4шт.

18

K617080

NUT

- No. 10 UNF

4шт.

19

K943024

BRACKET

- reflector

2шт.

20

K624532

SCREW

- No. 10 UNF x 1/2 inch

4шт.

21

K626340

RING

WASHER - lock, 3/16 inch

4шт.

22

K617080

NUT

- No. 10 UNF

4шт.

23

K302778

REFLECTOR

- red (Replaces K951642)

2шт.

24

K626340

RING

WASHER - lock, 3/16 inch

2шт.

25

K617080

NUT

- No. 10 UNF

2шт.

30

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- No. 10-32 UNF x 1/2 inch (Use with K302778)

2шт.
