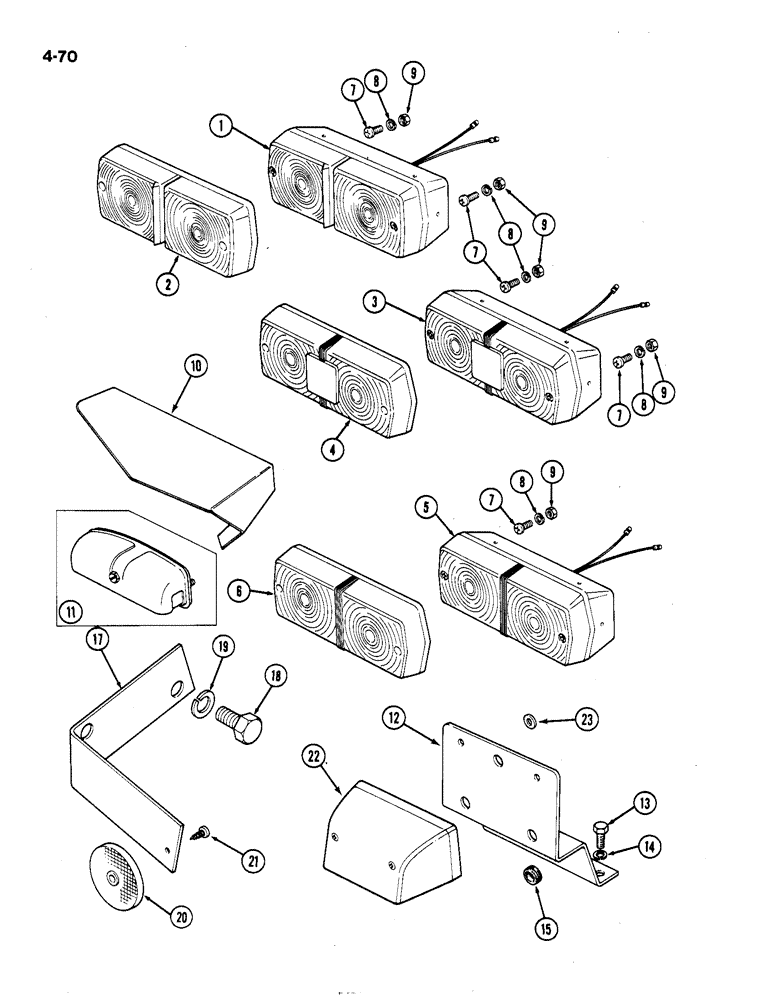

Запчасти Case IH 1194 (4-70) - SIDE AND REAR WARNING LAMPS, TRACTORS WITHOUT CAB, FULL FENDERS (04) - ELECTRICAL SYSTEMS

1

K304892

LIGHT

LAMP ASSEMBLY - left-hand front, side flasher (Britax), Includes: Ref. 2

1шт.

2

K261792

LENS

- lamp

1шт.

1

K304891

LIGHT

LAMP ASSEMBLY - right-hand front, side flasher (Britax), Includes: Ref. 2

1шт.

2

K261792

LENS

- lamp

1шт.

3

K304888

LAMP

ASSEMBLY - stop, flasher, rear, left-hand (Britax) (Not North America), Includes: Ref. 4

1шт.

4

K261791

LENS

- lamp

1шт.

3

K304887

LAMP

ASSEMBLY - stop, flasher, rear, right-hand (Britax) (Not North America), Includes: Ref. 4

1шт.

4

K261791

LENS

- lamp

1шт.

5

K304890

LAMP

ASSEMBLY - stop, flasher, rear, left-hand (North America only), Includes: Ref. 6

1шт.

6

K261790

LENS

- lamp

1шт.

5

K304889

LAMP

ASSEMBLY - stop, flasher, rear, right-hand (North America only), Includes: Ref. 6

1шт.

6

K261790

LENS

- lamp

1шт.

7

K613148

SCREW

- M5 x 12 mm

8шт.

8

K651846

WASHER, LOCK

WASHER - lock, 5 mm

8шт.

9

K652871

NUT

- M5, special

8шт.

10

K307941

LAMP

SHIELD - lamp, left-hand (North America only)

1шт.

10

K307981

LAMP

SHIELD - lamp, right-hand (North America only)

1шт.

11

K311863

INTERIOR LIGHT

LAMP - rear number plate (Not North America)

1шт.

12

K301333

BRACKET

- support

1шт.

13

K655644

BOLT

SCREW - M8 x 20 mm

2шт.

14

K651848

WASHER

- lock, 8 mm

2шт.

15

K627705

GROMMET

- 14 mm

1шт.

17

K303986

BRACKET

- reflector

2шт.

18

K603104

SCREW

- 1/4 UNC x 1 inch

4шт.

19

K626345

LOCK WASHER

WASHER - lock, 1/4 inch

4шт.

20

K302778

REFLECTOR

- red

2шт.

21

K624797

SCREW

- self-tapping, No. 6 x 1/2 inch

2шт.

22

K311863

INTERIOR LIGHT

LAMP - rear number plate, with harness (Replaces K943308)

1шт.

23

K651813

WASHER

- special, plain (Use with K311863)

2шт.

A441264

BULB single contact, #1156

1шт.

K310118

BULB

double contact, #1076, single element

1шт.
