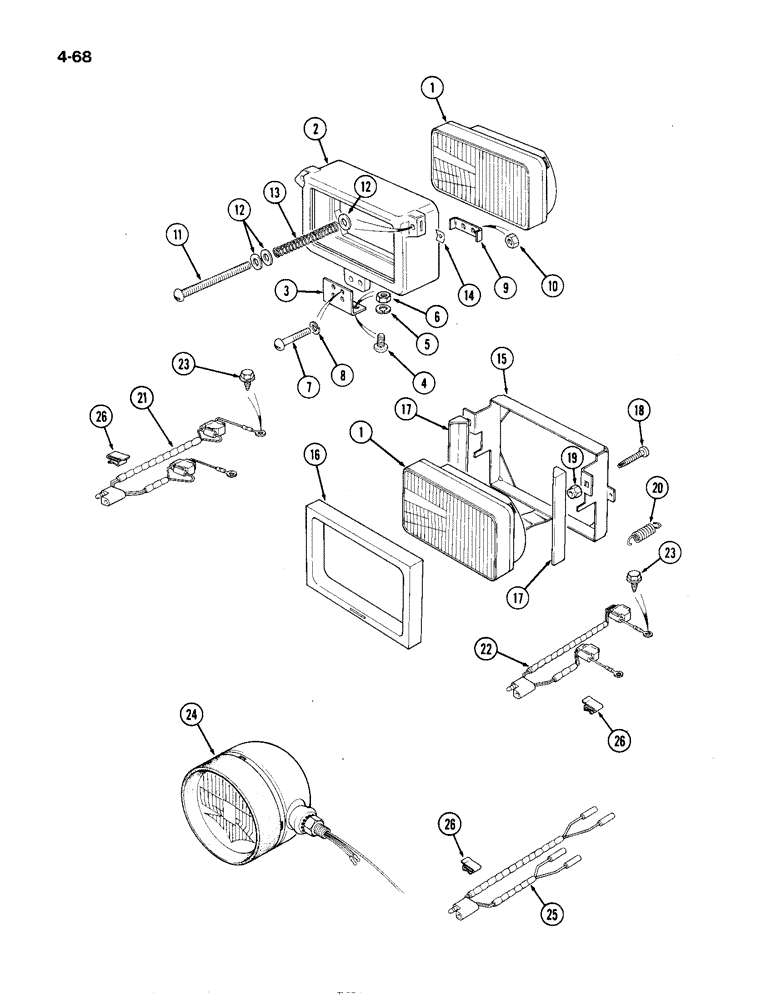

Запчасти Case IH 1194 (4-68) - HEADLAMPS (04) - ELECTRICAL SYSTEMS

1

K300209

LAMP

HEADLAMP - white bulb, left-hand angled beam

2шт.

1

K300207

HEADLAMP - white bulb, right-hand angled beam

2шт.

1

K300725

BULB

HEADLAMP - yellowbulb, right-hand angled beam

2шт.

1

K300280

BEAM

HEADLAMP - sealed beam, vertical low beam

2шт.

2

K300758

BRACKET

HOUSING - lamp (Inboard headlamps below waist rail)

2шт.

3

K300762

BRACKET

- support (Inboard headlamps below waist rail)

2шт.

4

K652464

SCREW

- M5 x 16 mm (Inboard headlamps below waist rail)

4шт.

5

K651846

WASHER, LOCK

WASHER - lock, 5 mm (Inboard headlamps below waist rail)

4шт.

6

K651525

NUT

- M5 (Inboard headlamps below waist rail)

4шт.

7

K652466

SCREW

- M5 x 25 mm (Inboard headlamps below waist rail)

4шт.

8

K651846

WASHER, LOCK

WASHER - lock, 5 mm (Inboard headlamps below waist rail)

4шт.

9

K300763

CLAMP

- housing (Inboard headlamps below waist rail)

2шт.

10

K651525

NUT

- M5 (Inboard headlamps below waist rail)

4шт.

11

K605643

SCREW,Pan, #10 - 24 x 2 1/2"

- adjusting, No. 10 UNC x 2-1/2 inch (Inboard headlamps below waist rail)

4шт.

12

K651776

WASHER

- 5 mm (Inboard headlamps below waist rail)

12шт.

13

D607478

SPRING - pressure (Inboard headlamps below waist rail)

4шт.

14

K607478

NUT

- No. 10 UNC (Inboard headlamps below waist rail)

4шт.

15

K304824

SUPPORT

HOUSING - lamp (Inboard headlamps mounted in waist rail)

2шт.

16

K304831

RUBBER INSULATOR

SHROUD - rubber (Inboard headlamps mounted in waist rail)

2шт.

17

K304832

MOLDING

MOULDING - rubber (Inboard headlamps mounted in waist rail)

4шт.

18

K603641

SCREW

- headlamp adjusting (Inboard headlamps mounted in waist rail)

4шт.

19

K617503

NUT

- nylon (Inboard headlamps mounted in waist rail)

4шт.

20

K658235

SPRING

- retaining (Inboard headlamps mounted in waist rail)

4шт.

21

K304927

HARNESS

- electrical (Inboard headlamps)

1шт.

22

K304928

HARNESS

- sealed beam headlamps (Inboard headlamps)

1шт.

23

K624532

SCREW

- self-tapping, No. 14 x 1/2 inch (Inboard headlamps)

2шт.

24

K302167

HEADLIGHT

HEADLAMP - white bulb, left-hand (outboard) (Not North America)

1шт.

24

K302168

HEADLIGHT

HEADLAMP - white bulb, right-hand (outboard) (Not North America)

1шт.

25

K300750

HARNESS

- outboard headlamps

1шт.

26

K621744

CLIP

- headlamp harness

3шт.
