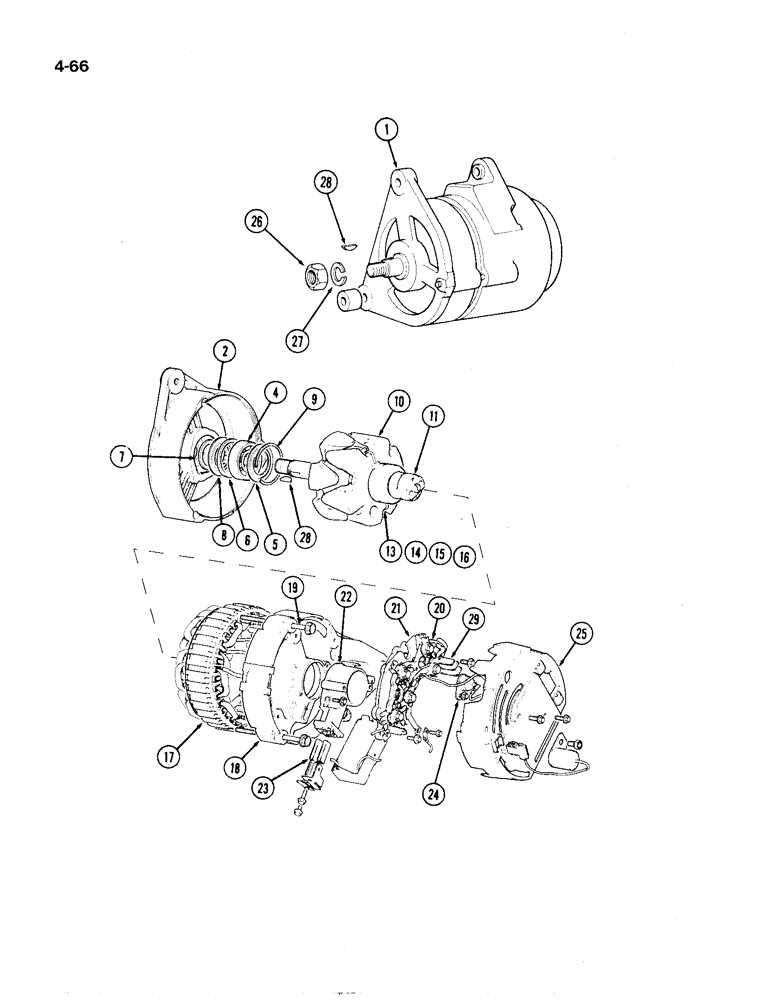

Запчасти Case IH 1194 (4-66) - K306549 ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

K306549

ALTERNATOR

ALTERNATOR ASSEMBLY - (12 volt, 45 amperes) (Lucas A115-45), Includes: Ref. 1 - 25

1шт.

1

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

1

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

1

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

92293C1GV

ALTERNATOR

Value, 12 Volt, 45 Amp, W/Fan

1шт.

2

K261936

BRACKET

FRAME ASSEMBLY - drive end, Includes: Ref. 4 - 9 and bearing kit

1шт.

K963778

BEARING ASSY

BEARING KIT - drive end, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - bearing retaining

1шт.

6

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

9

NSS

NOT SOLD SEPARAT

RING - snap, bearing kit retaining

1шт.

10

K261937

ROTOR

ROTOR ASSEMBLY, Includes: Ref. 11 - 16 and slip ring kit

1шт.

K261938

RING

KIT - slip ring end

1шт.

11

K261939

RING

RING - slip, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - dust (black)

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - dust (white)

1шт.

16

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

17

K261941

STATOR

STATOR

1шт.

18

K261940

BRACKET

FRAME - slip ring end

1шт.

19

K261944

BOLT

BOLT - through

3шт.

20

K261935

RECTIFIER

RECTIFIER ASSEMBLY

1шт.

21

K261934

REGULATOR

REGULATOR ASSEMBLY

1шт.

22

K261942

COMMUTATOR BRUSH

HOLDER ASSEMBLY - brush, Includes: Ref. 23

1шт.

23

K261943

COMMUTATOR BRUSH

BRUSH SET

1шт.

24

K261958

DIODE

DIODE - isolation (surge protection)

1шт.

25

K261933

COVER

COVER - drive end

1шт.

K261955

SCREW

HARDWARE KIT - (includes all screws illustrated but not listed or identified)

1шт.

K261956

BUSHING

SPACER KIT - (includes assorted spacers)

1шт.

K261945

KIT

SUNDRY KIT, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

NUT - shaft

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - lock, shaft nut

1шт.

28

NSS

NOT SOLD SEPARAT

KEY - Woodruff, Serial Range: shaft-pulley

1шт.

29

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.
