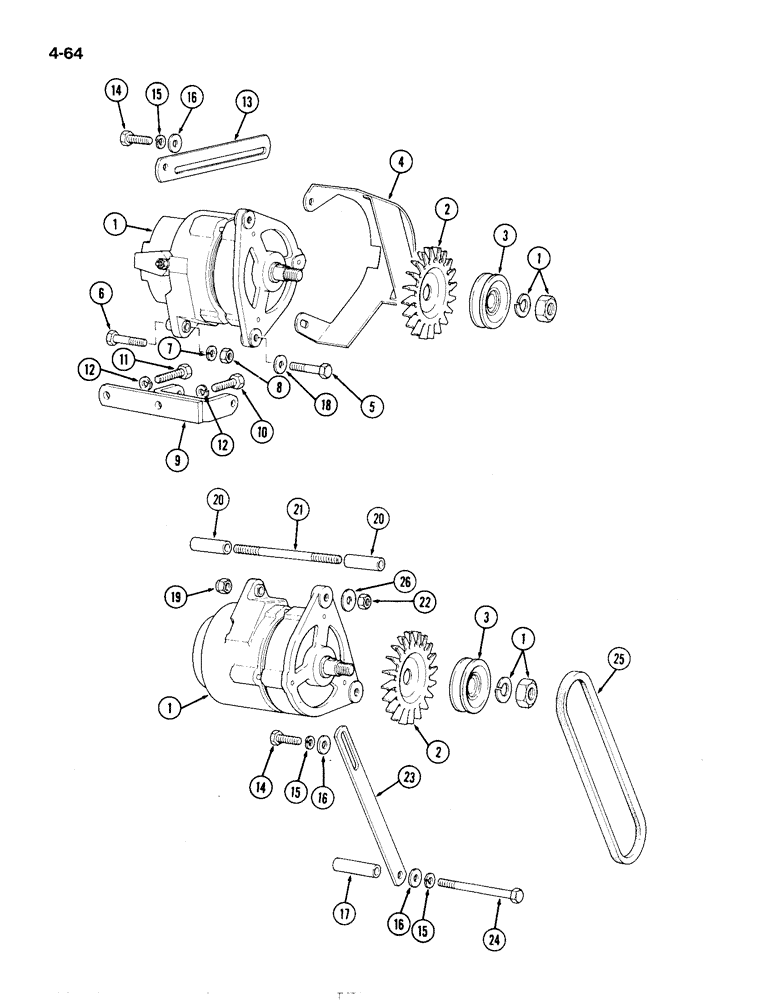

Запчасти Case IH 1194 (4-64) - ALTERNATOR FITTINGS (04) - ELECTRICAL SYSTEMS

1

K306549

ALTERNATOR

ALTERNATOR (Lucas A115-45), See Figure 4-66, Includes: Ref. 2 & 3

1шт.

1

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

1

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

1

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

92293C1GV

ALTERNATOR

Value, 12 Volt, 45 Amp W/Fan and Pulley

1шт.

2

K306623

FAN

FAN - alternator

1шт.

3

K952702

PULLEY

PULLEY - alternator

1шт.

4

K307744

PROTECTIVE COVER

GUARD - alternator fan (with manual steering)

1шт.

5

K600359

BOLT

BOLT - 5/16 UNC x 1-1/4 inch (with manual steering)

1шт.

6

K600365

BOLT

BOLT - 5/16 UNC x 1-1/2 inch (with manual steering)

1шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16 inch (with manual steering)

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16 inch UNC (with manual steering)

2шт.

9

K947375

SUPPORT

BRACKET - alternator (with manual steering)

1шт.

10

K602902

SCREW

BOLT - 3/8 UNC x 3/4 inch (with manual steering)

1шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, (With manual steering) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8 inch (with manual steering)

2шт.

13

K950495

ADJUSTER

STRAP - adjusting (with manual steering)

1шт.

14

K650342

BOLT

BOLT - M8 x 20 mm

1шт.

15

K19481

SPRING WASHER

WASHER - lock, 5/16 inch (2 used with power steering)

1шт.

16

K626916

WASHER

WASHER - 5/16 inch (8 mm) special

2шт.

17

K627033

BUSHING

SPACER

1шт.

18

K626682

WASHER

WASHER - 5/16 inch (8 mm)

1шт.

19

231-1435

LOCK NUT,5/16"-18, GB

NUT - self-locking, 5/16 inch (with power steering)

1шт.

20

K625700

BUSHING

SPACER

2шт.

21

K608151

STUD

STUD - 5/16 UNC x 5-1/4 inch (with power steering)

1шт.

22

K607081

LOCK NUT

NUT - lock, 5/16 inch UNC (with power steering)

1шт.

23

K947354

STRAP

STRAP - adjusting (with power steering)

1шт.

24

K600215

BOLT

BOLT - 5/16 UNC x 2-3/4 inch (with power steering)

1шт.

25

K948187

V-BELT

Alternator drive (With power steering)

1шт.

26

K19471

WASHER

WASHER - 5/16 inch (8mm)

1шт.
