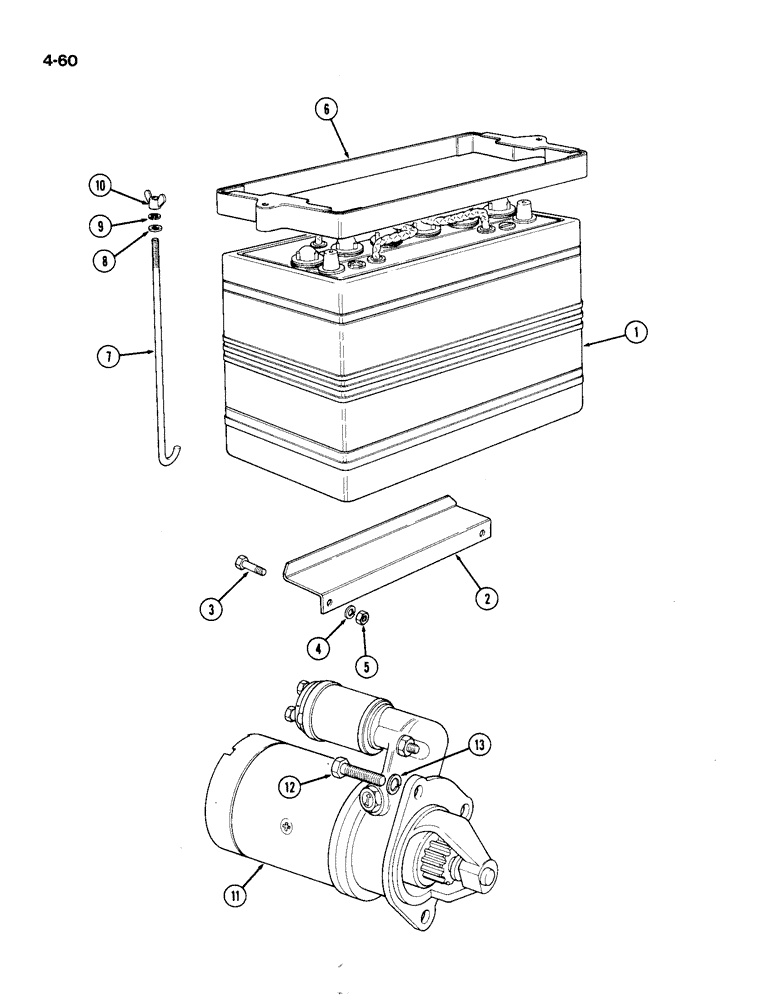

Запчасти Case IH 1194 (4-60) - BATTERY AND STARTER (04) - ELECTRICAL SYSTEMS

1

K330011

DRY BATTERY

- standard duty

1шт.

1

A145205

WET BATTERY

- standard (North America only)

1шт.

1

K330012

BATTERY

- heavy duty

1шт.

1

A38411

DRY BATTERY

- heavy duty (North America only)

1шт.

2

K307815

BRACKET

- support, battery

2шт.

3

K650643

BOLT

- M8 x 25 mm

2шт.

4

K651848

WASHER

- lock, 8 mm

2шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

6

K947080

FRAME

CLAMP - battery top

1шт.

7

K306318

BOLT

STUD - clamp, M8 x 250 mm (standard battery)

2шт.

7

K306317

BOLT

STUD - clamp, M8 x 300 mm (heavy duty battery)

2шт.

8

K626849

WASHER

- 8 mm

2шт.

9

K651848

WASHER

- lock, 8 mm

2шт.

10

K651745

NUT

- wing, M8

2шт.

11

K957341

STARTING MOTOR

STARTER - (Lucas 27421), See Figure 4-62

1шт.

12

K600406

BOLT

- 3/8 UNC x 1-3/4 inch

3шт.

13

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

3шт.

188592A1

COVER

KIT starter

1шт.

188594A1

KIT

cover, subpak

1шт.
