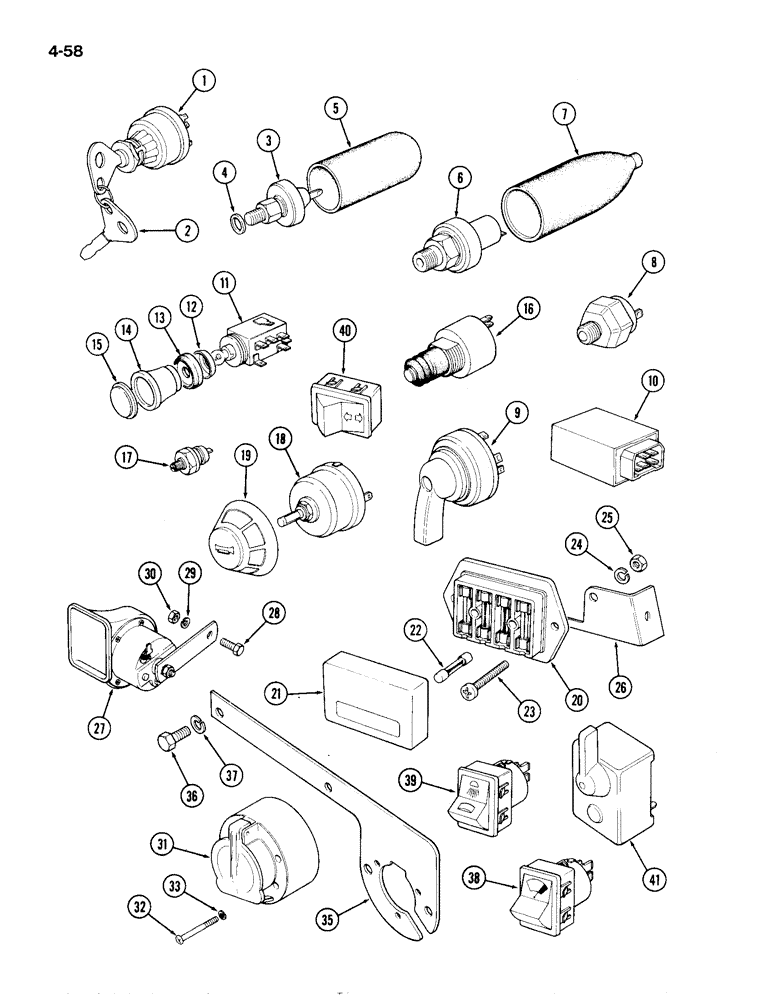

Запчасти Case IH 1194 (4-58) - SWITCHES, FUSEBOX, HORN AND TRAILER SOCKET (04) - ELECTRICAL SYSTEMS

1

K203992

IGNITION SWITCH

SWITCH - starter (Lucas 54033688), Includes: Ref. 2

1шт.

2

K920929

KEY

- starter switch

1шт.

3

K311686

SWITCH, PRESSURE

SWITCH - oil pressure (BMI - P10016) (Replaces K903851)

1шт.

4

K626521

SEALING WASHER

WASHER - fiber

1шт.

5

K207554

COVER

- oil pressure switch

1шт.

6

K921317

SENDER UNIT

SWITCH - filter warning (AC-Delco 7954473)

1шт.

7

K923874

COVER

- oil filter switch

1шт.

8

K200652

NEUTRAL START SWITCH

SWITCH - safety (Lucas 33855)

1шт.

9

K300781

FLASHER SWITCH

SWITCH - direction indicator (Hella 6RB00159503) (without cab)

1шт.

10

K948611

FLASHER UNIT

- (Hella 4DM 002233-05)

1шт.

11

K300833

SWITCH

- hazard warning (Hella 6HD 001578-04), Includes: Ref. 12 - 15

1шт.

12

K950592

WASHER

- mounting

1шт.

13

K950593

COVER

RUBBER - mounting

1шт.

14

K964913

KNOB

- control

1шт.

15

K964914

LENS

- switch light

1шт.

16

K929737

SWITCH ASSY

SWITCH - stop lamps (AC-Delco 1533840) (without cab), Includes: Ref. 19

1шт.

17

K201313

SWITCH

- air filter warning light, Includes: Ref. 19

1шт.

18

K300657

SWITCH

- side lamps, head lamps, and horn, Includes: Ref. 19

1шт.

19

K300792

KNOB

- lighting switch

1шт.

20

K204610

BOX, FUSE

FUSE BOX, Includes: Ref. 21 & 22

1шт.

21

K261009

COVER

- fuse box

1шт.

22

K947431

FUSE

- 35 ampere

3шт.

22

K904459

FUSE

- 25 ampere

2шт.

22

K951395

FUSE

- 15 ampere

1шт.

23

K615408

SCREW,Pan, #10 - 32 x 1"

- No. 10 UNF x 1 inch

2шт.

24

K626340

RING

WASHER - lock, 3/16 inch

2шт.

25

K617080

NUT

- No. 10 UNF

2шт.

26

K302441

BRACKET

- fuse box

1шт.

27

K311359

HORN

AND BRACKET (Replaces K950098)

1шт.

28

K602733

SCREW

BOLT - 1/4 UNC x 5/8 inch, horn to air cleaner support

1шт.

29

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

30

K607043

NUT

- 1/4 inch UNC

1шт.

31

K303725

SOCKET/RECEPTACLE

SOCKET - trailer, 7 pin

1шт.

32

K652466

SCREW

- M5 x 25 mm

3шт.

33

K651846

WASHER, LOCK

WASHER - lock, 5 mm

3шт.

35

K309162

SOCKET/RECEPTACLE

BRACKET - trailer socket (without cab)

1шт.

36

K612702

SCREW

- 1/4 UNF x 5/8 inch

2шт.

37

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

2шт.

38

K307604

SWITCH

- windshield wiper/washer

1шт.

39

K307605

LIGHT SWITCH

SWITCH - rear floodlamp (with cab)

1шт.

40

K307872

FLASHER SWITCH

SWITCH - direction indicator (with cab)

1шт.

41

K304474

SWITCH

- flasher/turn signal (North America Only)

1шт.
